Beckman Deuterium Lamp 80V 300mA UV Vis Spectrophotometer

Name: Beckman Deuterium Lamp 80V 300mA UV Vis Spectrophotometer
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: DD10TZ
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	DD10TZ
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Lifetime:

2500h

Place Of Origin:

Guangdong, China

Voltage:

80V

Type:

Protruding Window With Seat

Product Name:

Deuterium Lamp

Material:

Quartz

Current:

300mA

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Beckman Deuterium Lamp

400nm Uv Vis Spectrophotometer Lamps

80V Uv Vis Spectrophotometer Lamps

Product Description

Beckman Deuterium Lamp, 160-400nm 80V UV Vis Spectrophotometer Lamps

Attribute	Value
Lifetime	2500h
Place of Origin	Guangdong, China
Voltage	80V
Type	Protruding window with seat
Product name	deuterium lamp
Material	quartz
Current	300mA

DD10TZ 160-400nm 80V Beckman Deuterium Lamps for Spectrometer

Our Advantage

Design: Specially engineered to meet or exceed requirements for various instruments, delivering optimal intensity and stability for analytical applications.
Quality Control: Rigorous material selection and comprehensive pre-shipment testing ensure radiation intensity equals or surpasses competitor products.

Product Description

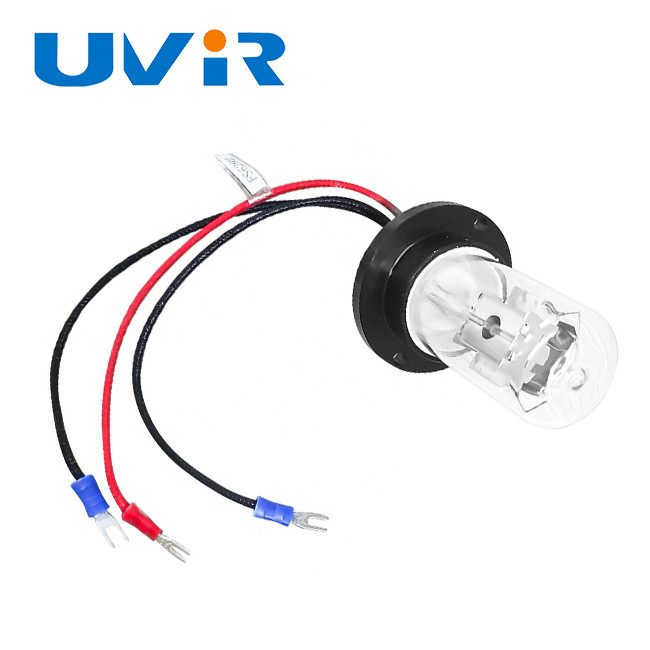

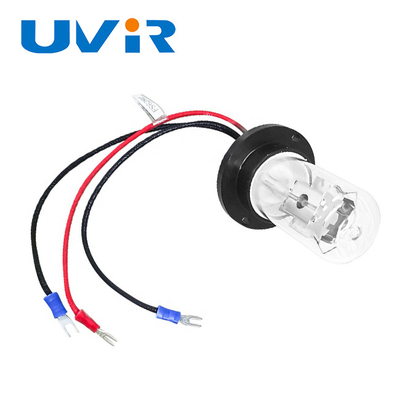

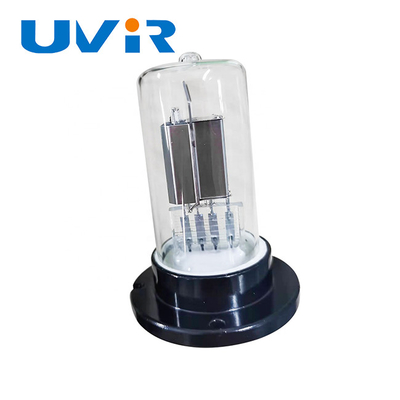

Deuterium lamps are discharge light sources producing stable, high-intensity ultraviolet radiation (160-400nm) with additional visible light output (400-800nm). These lamps are ideal for:

UV spectroscopy
High-performance liquid chromatography (HPLC)
Capillary electrophoresis (CE)
Pollution monitoring systems
Specialized photometric equipment requiring UV wavelengths

Lamp Parameters

Product name	deuterium lamp
Model	DD10TZ
Current	300mA
Material	Quartz Tube
Voltage	80V
Service life	2500h

Product Details

Technical Specifications

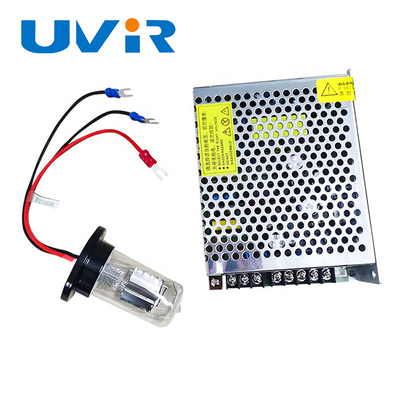

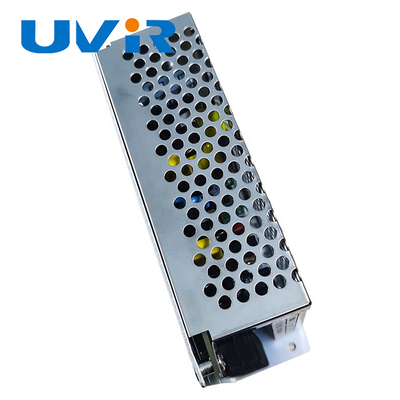

Deuterium Lamp Switching Power Supply

This advanced power supply eliminates bulky transformers through high-frequency operation, integrating filament preheating, high-voltage triggering, and constant current control. Key features include:

Compact, lightweight design with high efficiency
Universal voltage compatibility (AC85-265V)
Maintains stable ultraviolet spectrum output
Isolated control port for external operation
A-level electromagnetic interference rating
Available in Type A (2.5V filament) and Type B (10V filament)

Environmental Requirements

Operating Conditions:

Temperature: 0-40°C
Relative humidity: 20-90% RH at 40°C
Atmospheric pressure: 86-106 kPa

Storage Conditions:

Temperature: -40-70°C
Relative humidity: ≤90% RH at 50°C
Atmospheric pressure: 86-106 kPa

Our Services & Strength

Expert sales teams for accurate communication
Professional technical teams for product development
Skilled production teams for assembly line manufacturing
Dedicated quality inspection teams
Experienced after-sales support

After Sales Service

Package tracking
Technical support
24-hour response time
Reorder discounts
Quality issue replacements
Strict customer confidentiality
