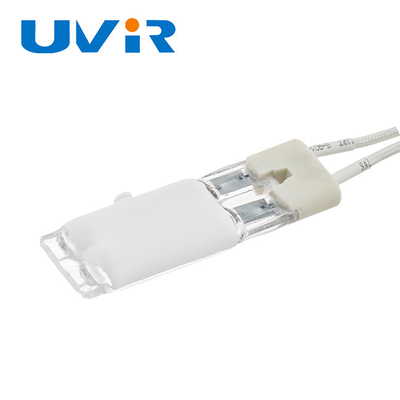

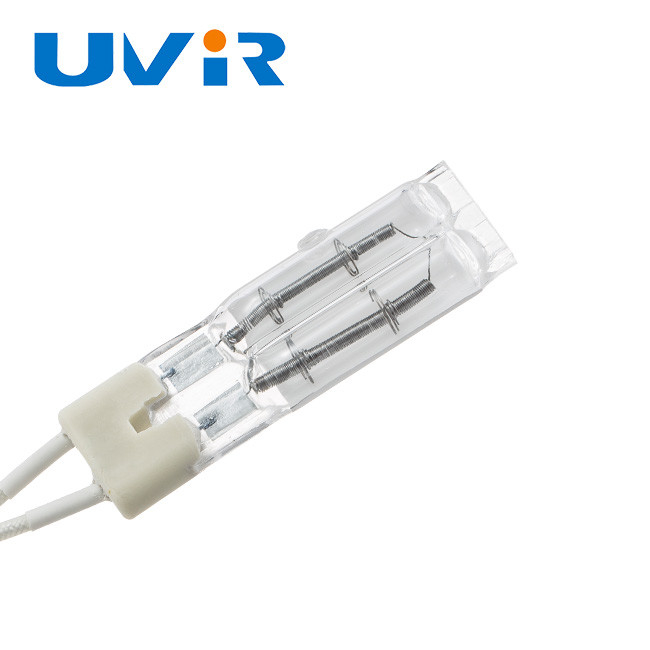

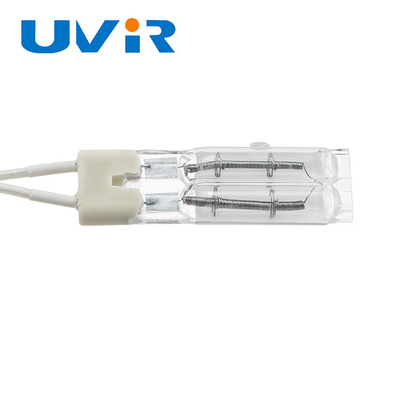

115V 450W Twin Tube Infrared Heating Lamp with Quartz Glass

115V 450W Twin Tube Infrared Heating Lamp with Quartz Glass

Brand Name:	UVIR
Model Number:	THW100027
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours)::

3000-5000h

Product Name::

Infrared Heating Lamp

Tube Material::

Clear Quartz Glass

Material:

Glass Tube

Coating:

White

Total Length:

70mm

Heating Length:

25mm

Watt:

450W

Voltage:

115V

Dsgn Type:

Base:

TC01

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

20000h Halogen Tube Heater

150W Halogen Tube Heater

22V halogen tube for heater

Product Description

115V 450W Short Wave Halogen Tube Heater Quartz 3000-5000h Lifespan

Product Specifications

Lifespan (hours)	3000-5000h
Product name	Infrared Heating Lamp
Tube Material	Clear Quartz Glass
Material	Glass tube
Coating	White
Total length	70mm
Heating length	25mm
Watt	450W
Voltage	115V
Dsgn Type	B
Base	TC01

Key Features

Manufactured from imported high-end quartz tube
Extended lifespan of 3000-5000 hours
High efficiency with over 85% heat efficiency at full power
Energy-saving reflective layer (gold or non-organic) for concentrated radiation
Clear heating process without surface corrosion or dropping off
Quick controllable heating time as needed
Clean and odorless operation with no contamination risk
Customizable wavelength, dimensions, filaments to meet requirements
Energy efficient with smaller footprint and superior heating results

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (shown: gold layer)
Proprietary gas composition

Product Information

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	White/Gold/Clear
Power	450W
Voltage	115V
OEM/ODM	Custom voltage, wattage, length, base, cables available with universal burning position

Stock and Standard Models

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Disgn Type	Gold	White	Clear
55	400	11x23	115	50	B	THG100151	THW100025	THC100026
115	400	11x23	115	50	B	THG100152	THW100026	THC100027
115	450	11x23	70	25	B	THG100153	THW100027	THC100028
115	450	11x23	72	25	B	THG100154	THW100028	THC100029
115	600	11x23	145	80	B	THG100155	THW100029	THC100030
115	900	11x23	170	115	B	THG100156	THW100030	THC100031
115	1000	11x23	192	127	B	THG100157	THW100031	THC100032
115	1100	11x23	205	140	B	THG100158	THW100032	THC100033
120	700	11x23	140	89	B	THG100159	THW100033	THC100034
120	800	11x23	167	102	B	THG100160	THW100034	THC100035
120	1180	11x23	250	150	B	THG100161	THW100035	THC100036
230	1200	11x23	405	340	B	THG100162	THW100036	THC100037
230	1500	11x23	300	200	B	THG100163	THW100037	THC100038
230	2350	11x23	410	355	B	THG100164	THW100038	THC100039
230	3000	11x23	650	500	C	THG100165	THW100039	THC100040
230	500	15x33	510	500	B	THG100114	THW100061	THC100061
400	4800	15x33	500	800	B	THG100141	THW100062	THC100062
400	6200	15x33	1100	1030	B	THG100002	THW100063	THC100063
400	15720	15x33	850	1334	H	THG100186	THW100064	THC100064
480	6000	15x33	1550	1000	B	THG100140	THW100065	THC100065

If the parameter is not suitable for you, please contact us. We have a professional team that will provide technical knowledge and drawings for custom solutions.

Heating Effect

The infrared short wave radiator is designed according to the characteristics of the material to be heated. It uses rays at the peak of the infrared wave that can be absorbed by the product to maximize energy absorption, achieving optimal heating results with minimal energy consumption.

Our Services & Strength

Expert sales teams for accurate communication
Professional technical teams for new product development
Technical production teams for assembly line production
Expert quality inspection teams for quality control
Experienced after-sales teams for customer support

Frequently Asked Questions

1. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We warmly welcome all clients to visit us!

2. How does your factory do regarding quality control?

"Quality is priority." We attach great importance to quality control from beginning to end. Our factory has gained CE, ISO9001, RoHS, and SGS certifications.

3. How I make the order from your company?

We typically provide quotes within 24 hours of your inquiry. Sample production takes 5-7 days, or longer for special customized heating lamps.

4. Do you offer guarantee for the products?

Yes, we provide product guarantees. The specific guarantee period will be confirmed in our formal quotation along with the product data sheet.

5. How long shall I wait for quotation?

We typically provide the best price within 24 hours after your inquiry. For special customized heating lamps, the quotation process may take longer.
