Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THW100027 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Lifespan (hours):: | 3000-5000h | Product Name:: | Infrared Heating Lamp |
|---|---|---|---|
| Tube Material:: | Clear Quartz Glass | Material: | Glass Tube |
| Coating: | White | Total Length: | 70mm |
| Heating Length: | 25mm | Watt: | 450W |
| Voltage: | 115V | Dsgn Type: | B |
| Base: | TC01 | ||
| High Light: | 20000h Halogen Tube Heater,150W Halogen Tube Heater,22V halogen tube for heater |
||

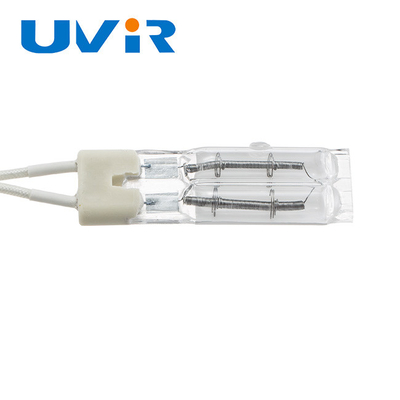

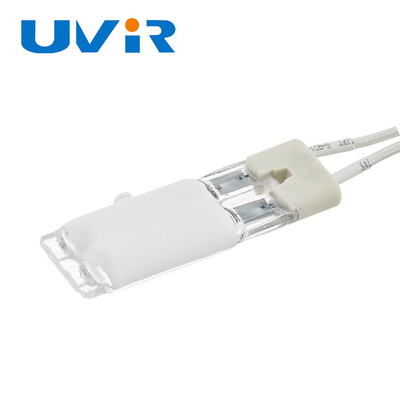

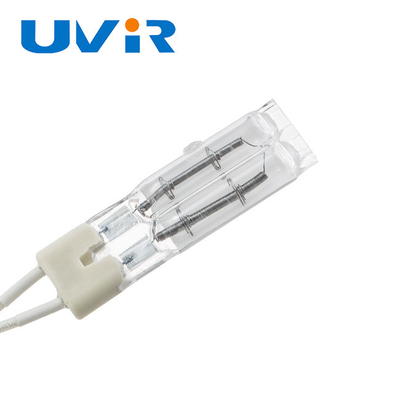

115V 450W Short Wave Halogen Tube Heater Quartz 3000-5000h Lifespan
Features:
- Lamp materials: manufactured from foreign imported high-end quartz tube.
- Longer serving life:the mid-temp and low-temp ones 5000 hours.
- Hight efficiency:more than 85% heat efficiency of full power.
- More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
- Clear heating means:Don't worry about surface corrosion and dropping off.
- Quick controllable heat:the heating time is controllable as it is needed.
- Clean and adorless:no risk of contamination over environment or target object to be heated.
- Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
- Energy Saving:less energy consumption,smaller footprint and better heating results.
Main components of a twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.
Product information:
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | White/Gold/Clear |
| Power | 450W |
| Voltage | 115V |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
Effect
The infrared short wave radiator is designed according to the characteristics of the material to be heated.lt uses the rays at the peak of the infrared wave that can be absorbed by the product to be heated to maximize the energy absorption of the heated product to achieve the best heating effect with the minimum energy.
Our Services & Strength
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
FAQ
1. Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome
all the clients at home and broad to visit us!
2. How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
3. How I make the order from your company?
Usually we will quote you the best price within 24 hours after your inquiry.
As for samples, it will take 5-7 days.
If it's special customized heating lamp, the time needed for samples could be longer.
4.Do you offer guarantee for the products?
Yes, it must be. we will confirm with you the guarantee period in formal quotation together with data sheet.
5.How long shall I wait for quotation?
Usually we will quote you the best price within 24 hours after your inquiry.If it's special customized heating lamp, the time needed for samples could be longer.
