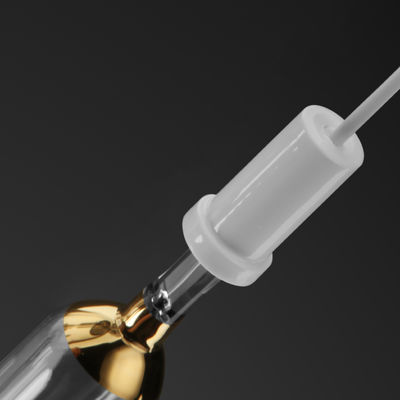

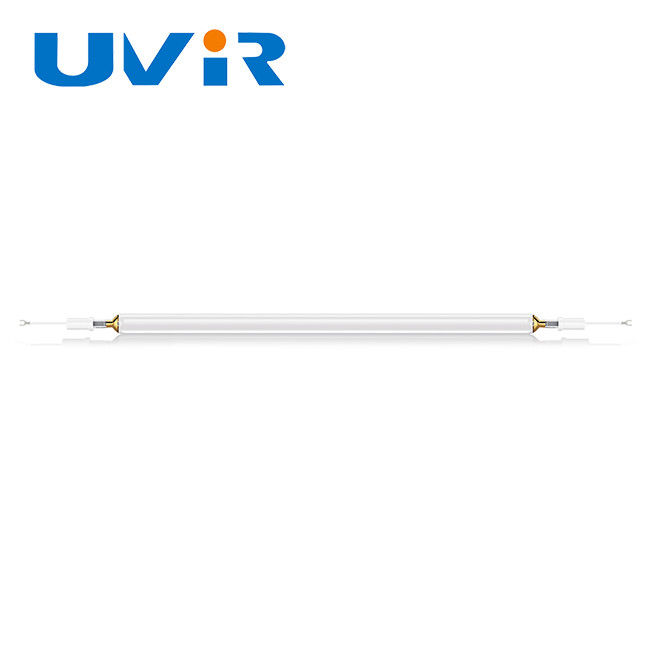

2300V 14kw Metal Halide UV Curing Lamp with High Quality Quartz Tube for Electronic Coating

2300V 14kw Metal Halide UV Curing Lamp with High Quality Quartz Tube for Electronic Coating

Brand Name:	UVIR
Model Number:	XUV 120144AA
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Base:

Current:

6.3

Application:

Light Curing, UV Printing,UV Drying

Power:

14kw

Voltage:

2300

Type:

Metal Halide Lamp

Place Of Origin:

Guangdong, China

Material:

High Quality Quartz Tube

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

14kw UV Curing Lamp

2300V UV Curing Lamp

Product Description

2300V 14kw UV Curing Lamp Quartz Tube For Electronic Product Coating

Metal Halide UV Curing Lamp for Electronic Product Coating

About Metal Halide Lamps

Metal Halide lamps incorporate elements such as iron, lead, gallium, and indium into the quartz tube, creating specialized UV lamps with customized wavelength output. These additives modify the UV spectrum, making them ideal for deep UV curing applications with ultra-thick coatings. Yuyu metal halide lamps are extensively used in PCB manufacturing, wood coatings, electronic product coating, optical fiber production, and related industrial applications.

Lamp Specifications

Power Output	14KW
Wavelength	365nm
Arc Length	1200mm
Material	High Quality Quartz Tube
End Caps	Ceramic / Metal
Service Life	800 to 1000 hours

Product Details

Complete Product Line Specifications

UVIR Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc Length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm
XUV 112100 AC	10	1500	7.2	1260	1120	23	AC	365nm
XUV 130120 AC	12	1800	7.5	1440	1300	25	AC	365nm
XUV 120144 AA	14	2300	6.3	1328	1200	26	AA	365nm
XUV 077150 AH	15	1250	12	870	770	25	AH	365nm
XUV 107160 AC	16	2000	8	1185	1070	28	AC	365nm
XUV 150180 BC	18	1730	10.6	1600	1500	25	BC	365nm
XUV 105199 DC	19.9	660	30	1145	1055	27	DC	365nm
XUV 143200 AC	22	2000	11	1430	1530	28	AC	365nm

If our standard specifications don't meet your requirements, please contact us. Our professional engineering team can provide technical expertise and custom drawings tailored to your specific application needs.

Frequently Asked Questions

Can I place a sample order?

Yes, we welcome sample orders for quality testing and verification. Mixed samples from different models are acceptable.

What is your production lead time?

Samples typically require 5-7 days, while mass production orders take approximately 30 days to complete.

Do you have minimum order quantity requirements?

Our standard minimum order quantity is 100 pieces per model.

How do you handle shipping?

For samples, we typically use DHL, UPS, FedEx, or TNT. For larger production quantities, we arrange air freight or sea shipping.

What is your ordering process?

Share your specific requirements and application details
We provide a quotation based on your specifications
You confirm samples and place deposit for formal order
We arrange and manage production

How do you handle product defects?

All products are manufactured under strict quality control systems. During the warranty period, we provide replacement units with your next order.
