135V 2KW 417nm UV Curing Lamp with Ceramic Cap

Brand Name:	UVIR
Model Number:	XUV 024020 ACG FS
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Lifetime:

800-1000h

Usage:

Electronic Components ,Printing，Furniture,Decorative Materials And Other Industries Curing

Wave Peak:

417nm

Watt:

2000W

Length:

240mm

Place Of Origin:

Guangdong, China

Lamp Cap:

Ceramic

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

417nm UV Curing Lamp

2KW UV Curing Lamp

Ceramic Cap Iodine Gallium Lamp

Product Description

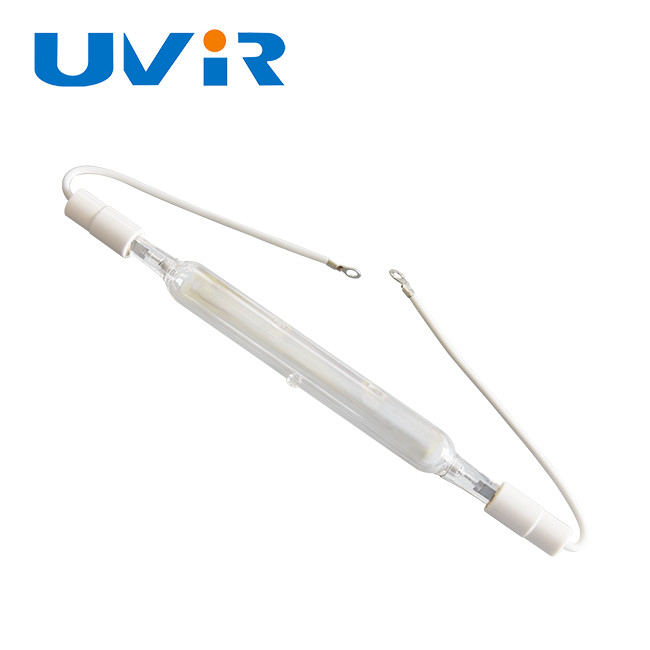

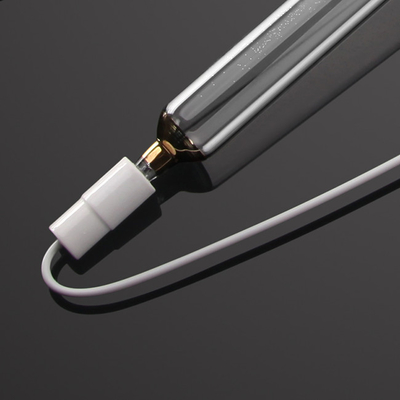

135V 2KW 417nm UV Curing Lamp with Ceramic Cap Iodine Gallium Lamp

Product Specifications

Attribute	Value
Lifetime	800-1000h
Usage	Electronic components, Printing, Furniture, Decorative materials and other industries curing
Wave peak	417nm
Wattage	2000W
Length	240mm
Place of Origin	Guangdong, China
Lamp cap	Ceramic

Product Overview

Our company specializes in manufacturing and wholesaling ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources with peripheral accessories including lamp stands and transformers. Custom solutions are available to meet specific requirements.

Our Services & Capabilities

Expert sales teams ensure accurate communication
Professional technical teams handle new product development
Skilled production teams manage assembly line manufacturing
Dedicated quality inspection teams maintain product standards
Experienced after-sales teams provide comprehensive support

Key Features

Available in power ranges from 0.5KW to 8KW
Precise spectral peak values for optimal performance
Fast start-up capability
Certified by relevant regulatory bodies
Short plate burning time with high efficiency
Protects plate making and photographic quality

Technical Parameters

Parameter	Value
Power output	6KW
Wavelength	365nm
Arc length	640mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hour

Model Specifications

Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm
XUV 112100 AC	10	1500	7.2	1260	1120	23	AC	365nm
XUV 130120 AC	12	1800	7.5	1440	1300	25	AC	365nm
XUV 120144 AA	14	2300	6.3	1328	1200	26	AA	365nm
XUV 077150 AH	15	1250	12	870	770	25	AH	365nm
XUV 107160 AC	16	2000	8	1185	1070	28	AC	365nm
XUV 150180 BC	18	1730	10.6	1600	1500	25	BC	365nm
XUV 105199 DC	19.9	660	30	1145	1055	27	DC	365nm
XUV 143200 AC	22	2000	11	1430	1530	28	AC	365nm

Applications

UV ink, UV glue, UV painting, UV coating
Paper glazing and printing circuit boards
Decoration and wooden floor manufacturing
Flexible packaging and color printing
Electronics, glass, and furniture production

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a factory with more than 15 years of experience. We welcome visits to our facility.

How can I get samples?

We provide free samples for quality evaluation. Customers are responsible for shipping costs.

How do I place an order?

Contact our sales team via email or online chat. We'll prepare a Proforma Invoice for your confirmation before processing your order.

Are your products safe?

All products undergo thorough testing and are certified by international regulatory bodies including European CE and RoHS standards.

Do you offer custom solutions?

Yes, we provide OEM and ODM services to realize your specific product requirements.
