365nm 6KW 380V Mercury UV Curing Lamp for Printing

Brand Name:	UVIR
Model Number:	XUV 050060 AC
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

End Caps:

Ceramic

Total Length (mm):

640

Type:

Mercury Lamp

Lifetime:

800-1000h

Application:

Light Curing, UV Printing,UV Drying

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

365nm UV Curing Lamp

6kw UV Curing Lamp

Product Description

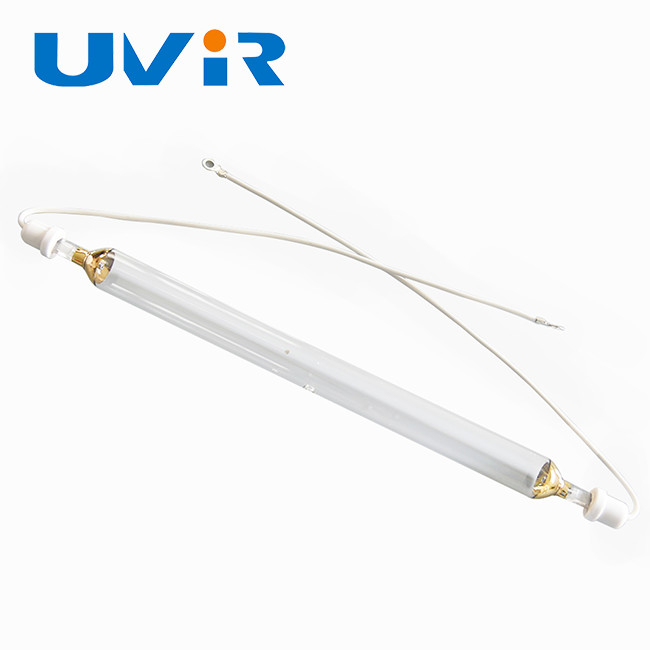

365nm 6kw 380V Mercury UV Curing Lamp High Voltage For Printing

Product Specifications

Attribute	Value
End caps	Ceramic
Total Length (mm)	640
Type	Mercury lamp
Lifetime	800-1000h
Application	Light curing, UV printing, UV drying

Product Description

365nm 6kw 380V Ultraviolet High-Voltage Mercury Lamp for UV Printing

OEM Service

We provide expert guidance in selecting the optimal heat lamp for specific applications. Our Technical Department can design custom lamps based on your precise technical requirements.

We manufacture various sizes and types of heat lamps according to customer specifications. Providing drawings is ideal for accurate sample production.

Features of UV High-voltage Mercury Lamp

Our UV high-voltage mercury lamps meet stringent industry regulations and technical standards. We maintain strict quality control throughout material selection, production, quality assurance, and packaging processes while continuously improving our manufacturing techniques.

Over 100 UV lamp varieties available (200W to 22KW power range)
Made with imported quartz tubes meeting industrial standards
Precision-engineered for data accuracy, high strength, and long lifespan
Customizable solutions available

Lamp Parameters

Parameter	Value
Power output	6KW
Wavelength	365nm
Arc length	640mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hour

Applications

UV Printing: Offset plate, letterpress, flexo, inkjet, glue, hot melting, and inseparable linked printing
UV Painting: For CDs, electronic components (PCBs, resistors), film coating, photo conductors, wood, plastic, and UV coating of 3D objects
UV Disinfection: Sterilization of food packaging materials, air, packaging films
UV Adhesion: For DVDs, electronic components, display screens, sensors, glass, jewelry, furniture, plastic parts, medical technology
UV Embedment: UV light curing in glass industry, electronic/mechanical components, medical technology, optical products, stone manufacturing

Technical Specifications

Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm
XUV 112100 AC	10	1500	7.2	1260	1120	23	AC	365nm
XUV 130120 AC	12	1800	7.5	1440	1300	25	AC	365nm
XUV 120144 AA	14	2300	6.3	1328	1200	26	AA	365nm
XUV 077150 AH	15	1250	12	870	770	25	AH	365nm
XUV 107160 AC	16	2000	8	1185	1070	28	AC	365nm
XUV 150180 BC	18	1730	10.6	1600	1500	25	BC	365nm
XUV 105199 DC	19.9	660	30	1145	1055	27	DC	365nm
XUV 143200 AC	22	2000	11	1430	1530	28	AC	365nm

Professional Curing Solutions

Our expert team provides customized UVA-UVB-UVC-UVV spectrum solutions, offering comprehensive technical support and design services for painting, coating, glue, paint ink, UV curing, air purification, water treatment, and UV photochemical reactions.

After Sales Service

Package tracking
One year guarantee
Technical support
Discount for reorder
Replacements for quality problems
Confidentiality of customer information
