Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100312 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Tube Material:: | Quartz Glass | Material Type:: | Tungsten&Glass |
|---|---|---|---|
| Heating Length: | 25mm | Total Length: | 70mm |
| Coating: | GOLD | Voltage: | 230V |
| Power: | 450W | Place Of Origin: | Guangdong, China |
| Base: | TC04 | ||
| High Light: | Gold Coating Twin Tube Infrared Lamps,Twin Tube Infrared Lamps 2s Heating |
||

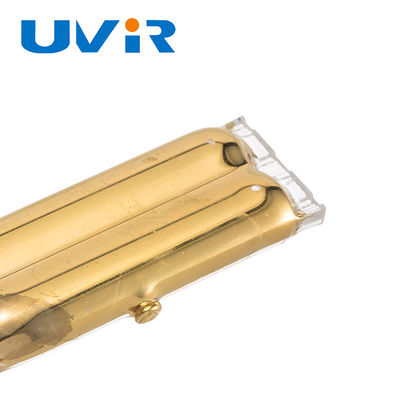

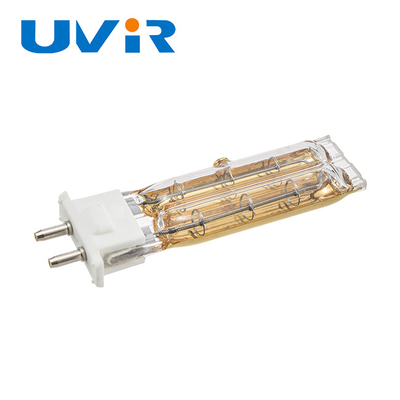

Gold coating twin tube quartz lamp infrared heating lamps for printing machine

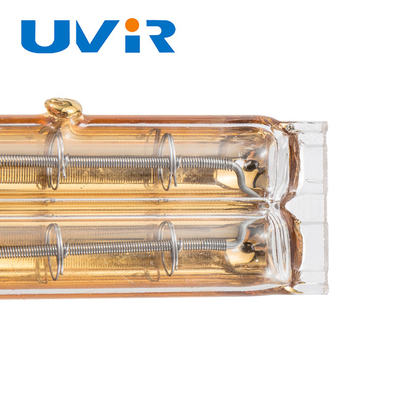

Main components of a Twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.
TECHNICAL NOTES:
1.Pinch-seal area, max.350°C
2.Quartz tube, max. and min.temp. are 900°C and 250°C,respectively.
Product information:
| Type |
Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | White/Gold/Clear |
| Power |
450W |
| Voltage | 230V |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tube
Short-Wave Spotty Lamps
| 115 | 200 | THG100145 | THW100005 | THC100005 | ||
| 115 | 250 | THG100146 | THW100006 | THC100006 | ||
| 115 | 450 | THG100147 | THW100007 | THC100007 | 80045902 | |
| 220 | 200 | THG100148 | THW100008 | THC100008 | ||
| 220 | 300 | THG100149 | THW100009 | THC100009 | ||
| 220 | 450 | THG100150 | THW100010 | THC100010 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
FAQ
1.How to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2.Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
3.Could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
4.Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
