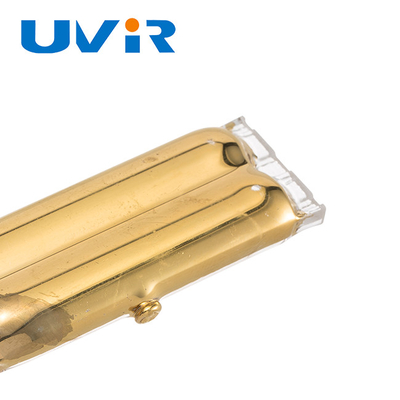

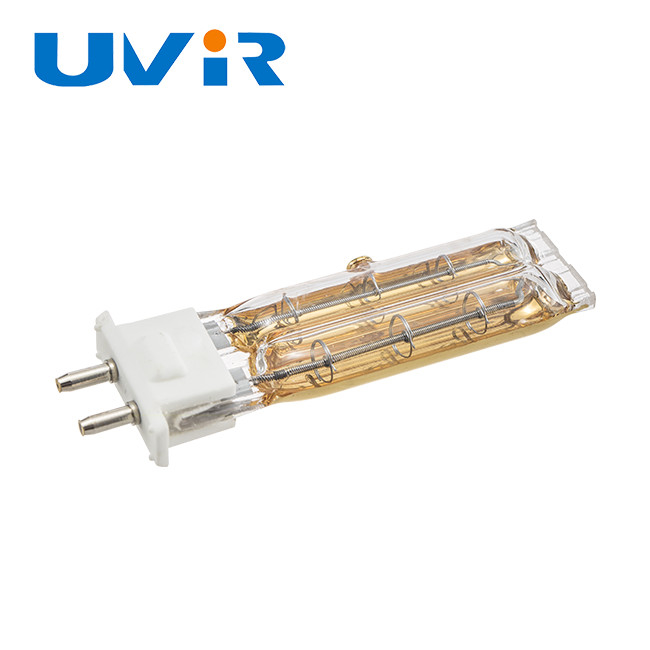

TC04 Gold Coating Twin Tube Infrared Lamp 450W 230V

TC04 Gold Coating Twin Tube Infrared Lamp 450W 230V

Brand Name:	UVIR
Model Number:	THG100312
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Material::

Quartz Glass

Material Type::

Tungsten&Glass

Heating Length:

25mm

Total Length:

70mm

Coating:

GOLD

Voltage:

230V

Power:

450W

Place Of Origin:

Guangdong, China

Base:

TC04

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coating Twin Tube Infrared Lamps

Twin Tube Infrared Lamps 2s Heating

Product Description

TC04 Gold Coating Twin Tube Infrared Lamps For Printing Machine 2s Heating

Product Specifications

Tube Material	Quartz Glass
Material Type	Tungsten & Glass
Heating Length	25mm
Total Length	70mm
Coating	GOLD
Voltage	230V
Power	450W
Place of Origin	Guangdong, China
Base	TC04

Product Description

Gold coating twin tube quartz lamp infrared heating lamps for printing machine

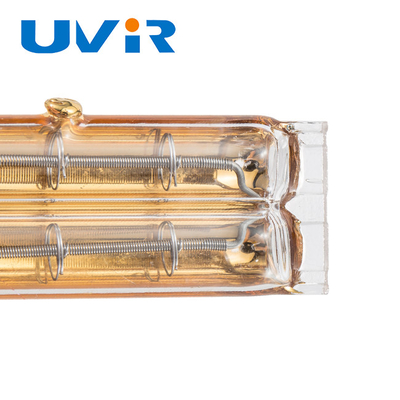

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (gold layer)
Proprietary gas composition

Technical Notes

IR lamp as emitter with high emissivity values in near and short-wave infrared regions
Heating efficiency can be increased using reflectors with gold or white coated exterior surfaces

Lamp Life & Temperature Notes:

Lamp life depends on coil's operating temperature: ±10% voltage change results in ∓30% life change
Optimum operating temperatures:
- Pinch-seal area: max 350°C
- Quartz tube: 250°C to 900°C

Detailed Specifications

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	White/Gold/Clear
Power	450W
Voltage	230V
OEM/ODM	Custom voltage, wattage, length, base, cables available

Stock and Standard Twin Tube Short-Wave Spotty Lamps

Custom parameters available. Contact us for professional consultation and drawings.

Product Coding Rule Table

After-sale Service

Warranty: 5,000 hours
Non-man-made quality issues will be replaced immediately at no charge

Frequently Asked Questions

1. How to place the order?

Provide your lamp specifications (type, diameter, length, power, voltage, reflector), we'll send a quotation. After payment, production begins and products will be shipped when completed.

2. Why use a Reflector?

Gold or ceramic coated reflectors concentrate heat, increasing effectiveness. Coated emitters convert nearly all electrical power to heat. For high watt density or temperatures above 800°C, ceramic coating is recommended. Custom coating degrees available.

3. Could you supply clamps for lamp installing?

Yes, we provide mounting clamps free with purchased lamps.

4. Have an unusual design?

Send us drawings, sketches, or samples for quotation. We specialize in custom designs and small runs, while remaining competitive on large orders.
