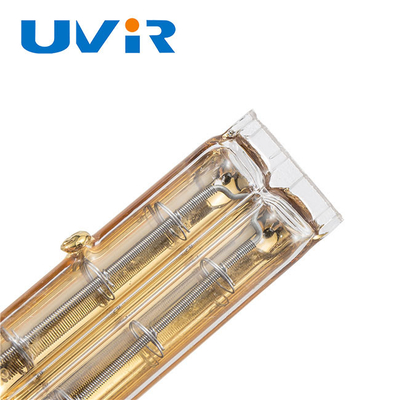

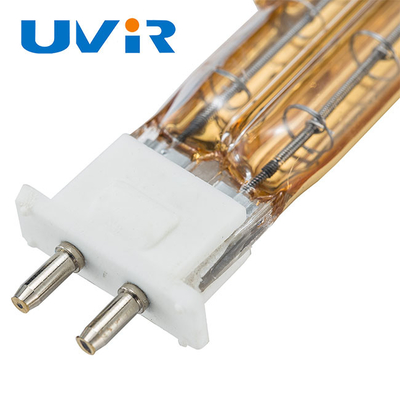

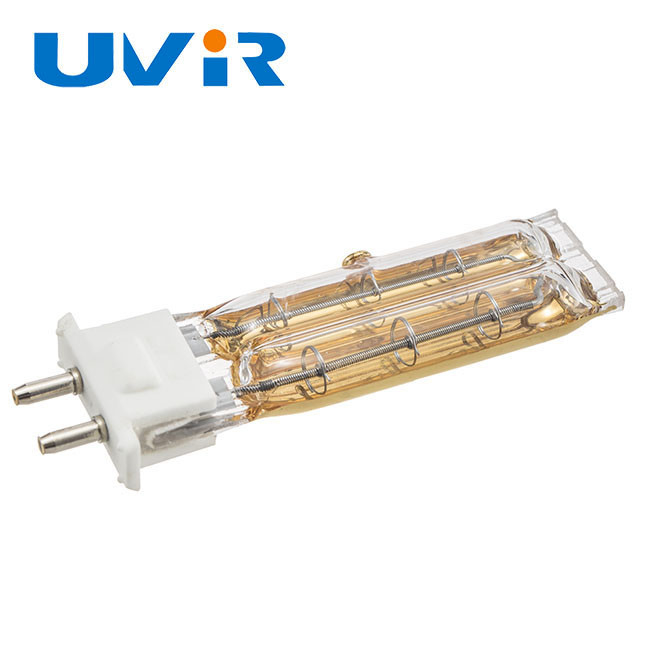

450W Twin Tube Quartz Heating Lamp 115V with Gold Reflector

450W Twin Tube Quartz Heating Lamp 115V with Gold Reflector

Brand Name:	UVIR
Model Number:	THG100007
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Quartz Tube:

Quartz Glass

Filament:

Tungsten Filament And Filled With Protective Gas

Filament Temperature::

1800 - 2400℃

Response Time:

1-2 Seconds

Reflector:

Golden Coating

Average Lifespan:

5,000 -20000

Power:

450W

Voltage:

115V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

11x23 Quartz Heating Lamp

TC04 Quartz Heating Lamp

Twin Tube Lamp Golden Coating Reflector

Product Description

TC04 11x23 Quartz Heating Lamp, Twin Tube Lamp Golden Coating Reflector

Product Specifications

Quartz Tube	Quartz Glass
Filament	Tungsten Filament And Filled With Protective Gas
Filament Temperature	1800 - 2400℃
Response Time	1-2 Seconds
Reflector	Golden Coating
Average Lifespan	5,000 - 20,000 hours
Power	450W
Voltage	115V

TC04 11*23 Labor Saving Twin Tube Quartz Shortwave Infrared Heating Lamp

What is IR?

Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, lying just beyond the red color of visible light. While invisible, IR has properties similar to light: it travels at light speed, can be directed or focused, and travels well even in vacuum. When absorbed by an object, IR generates heat internally by causing atomic vibration, raising temperature without requiring any medium like air or water.

Product Details

Item	Twin tube short wave infrared lamp
Quartz tube	11*23 (mm)
Reflector	Gold
Voltage	115V
Power	450W

Stock and Standard (Non-Stock) Twin Tube Short-Wave Spotty Lamps

Voltage	Power	THG Code	THW Code	THC Code	Other
115	200	THG100145	THW100005	THC100005
115	250	THG100146	THW100006	THC100006
115	450	THG100147	THW100007	THC100007	80045902
220	200	THG100148	THW100008	THC100008
220	300	THG100149	THW100009	THC100009
220	450	THG100150	THW100010	THC100010

If these parameters don't meet your requirements, please contact us. Our professional team can provide expert advice and custom drawings.

Customized Service

All our infrared heater lamps are customized to your specific requirements. Our technicians provide one-to-one service and can produce a single IR lamp for quality testing.
We offer OEM services and can print your logo on the infrared heating lamps as required.

After-sale Service

Warranty: 5,000 hours for short wave infrared heat lamps. During warranty period, we will replace any non-man-made defective products free of charge.

Frequently Asked Questions

How to place an order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector, etc.). We'll send a quotation. After payment, production begins and products ship when completed.

Why use a reflector?

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase effectiveness. Coated emitters efficiently convert electrical power to heat. For high watt density or tube temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). We offer 180° (half-tube) coating or custom degrees.

Do you supply mounting clamps?

Yes, we provide mounting clamps free with purchased lamps in corresponding quantities.

Can you accommodate unusual designs?

Yes. Send us a drawing, sketch, or sample for a quote. We specialize in custom designs and small runs while remaining competitive on large orders.
