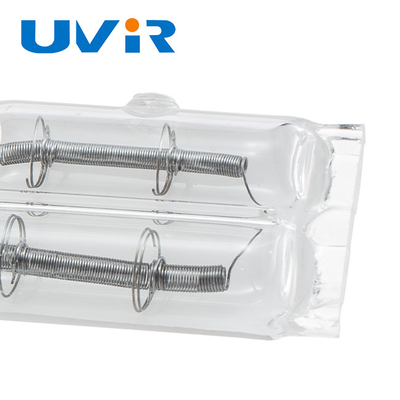

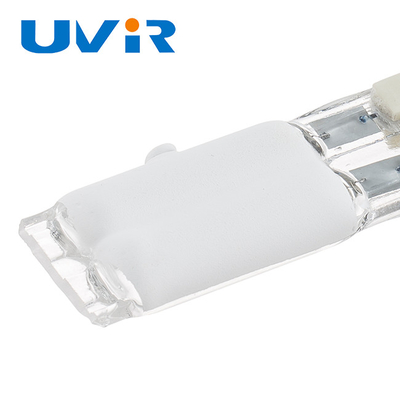

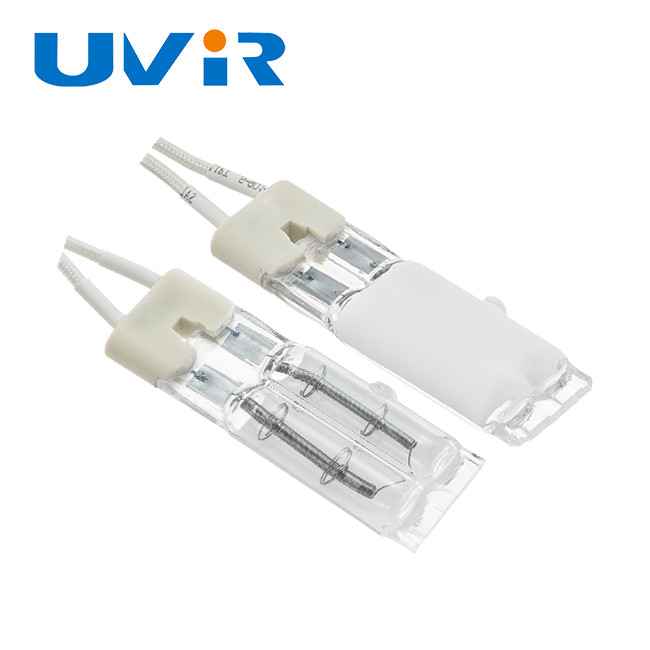

White Coated Twin Tube Infrared Heating Lamp 450W 115V 11x23mm

White Coated Twin Tube Infrared Heating Lamp 450W 115V 11x23mm

Brand Name:	UVIR
Model Number:	THW100028
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

Infrared Heating Lamp

Material:

Tungsten Filaments

Life Time:

5000 -20000Hours

Coating:

White

Shape:

Twin Tube

Power:

450W

Voltage:

115V

Size:

11*23mm

Type:

Heating Length:

25mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Quartz Infrared Heaters 11x23mm

White Coating Quartz Infrared Heaters

quartz heating element 11x23mm

Product Description

Customized White Coating Quartz Infrared Heaters Element 11x23mm

Product Specifications

Name	Infrared Heating Lamp
Material	Tungsten Filaments
Life time	5000 - 20000 Hours
Coating	White
Shape	Twin Tube
Power	450W
Voltage	115V
Size	11×23mm
Type	B
Heating length	25mm

Product Description

Customized white coating time-saving quartz halogen infrared heaters designed for efficient industrial heating applications.

Industrial Applications

Solar PV industry for preheating, soldering, and heating processes in stringers, furnaces, ovens, and PECVD equipment
PET preform heating in stretch blow molding machines
Powder coating curing
Resins hardening and rubber coating drying
Adhesives end polymerization
Food pasteurization and sterilization
Paper industry humidity control
Industrial drying of paint, varnishes, and dyeing
Semi-conductor industries for wafer heating
Printing ink drying in screen and offset machines
Plastic welding
Drying of water-repellent coating on fabric
Textile embossing and laminating

Technical Details

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11×23mm
Coating	White/Gold/Clear
Power	450W
Voltage	115V
OEM/ODM	Custom voltage, wattage, length, base, cables available with universal burning position

The strength of quartz tubes is significantly enhanced by a steel beam-inspired design, allowing twin tube lengths up to 6m (cross section: 33×14mm).

Product Variations

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear

Contact us for custom parameters not listed in the table. Our professional team can provide technical knowledge and drawings for your specific requirements.

Frequently Asked Questions

Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

What about the lead time?

Samples require 5-7 days, mass production typically takes about 30 days.

Do you have any MOQ limit?

Minimum order quantity is usually 2 pieces for each model.

How do you ship the goods?

Samples ship via DHL, UPS, FedEx or TNT. Large quantities ship by air or sea.

How to proceed with an order?

Share your requirements or application
We provide a quotation
Customer confirms samples and places deposit
We arrange production

How to deal with faulty products?

Our products undergo strict quality control. During the guarantee period, we provide replacements in your next order.
