Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THW100028 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name: | Infrared Heating Lamp | Material: | Tungsten Filaments |
|---|---|---|---|
| Life Time: | 5000 -20000Hours | Coating: | White |
| Shape: | Twin Tube | Power: | 450W |
| Voltage: | 115V | Size: | 11*23mm |
| Type: | B | Heating Length: | 25mm |
| Highlight: | Quartz Infrared Heaters 11x23mm,White Coating Quartz Infrared Heaters,quartz heating element 11x23mm |
||

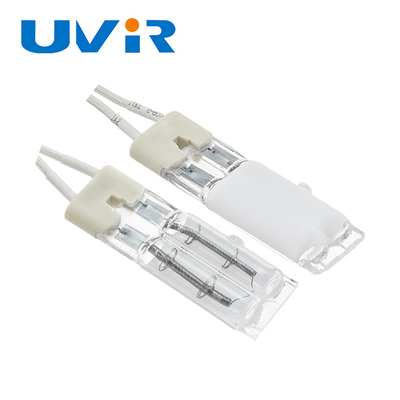

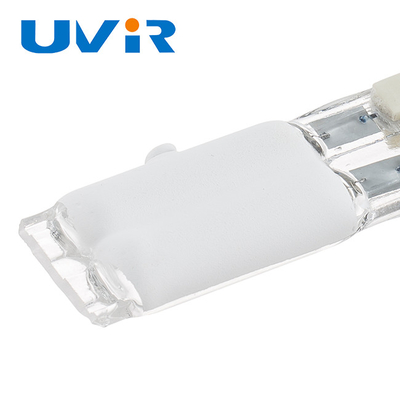

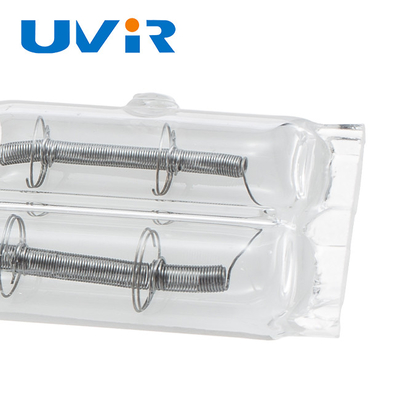

Customized White Coating Time Saving Quartz Halogen Infrared Heaters
Specific Applications Examples
1.Solar PV industry for preheating, soldering, heating process in many kinds of stringers, furnace, ovens and PECVD equipment, etc.
2.PET preform heating in Stretch blow moulding machines
3.Powder coating curing
4.Resins Hardening, Rubber coating drying
5.Adhesives - End polymerization
6.Food - Pasteurization / Sterilization
7.Paper Industry - Humidity Control
8.Industrial Drying - Paint , Varnishes , Dyeing
9.Semi Conductor Industries - Heating of wafers
10.Printing - Printing ink drying in screen and offset machines
11.Plastic welding
12.Drying of Water-Repellent Coating on Fabric
13.Textile Embossing and Laminating
Product information:
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11*23mm |
| Coating | White/Gold/Clear |
| Power | 450W |
| Voltage | 115V |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
Product details
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5-7 days, about 30 days for mass production.
Q3. Do you have any MOQ limit?
A: Usually MOQ is 2pcs for each model.
Q4. How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline and sea shipping for large quantity
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send the replacement in next order.
