TC01 Gold Twin Tube Infrared Heating Lamp 500V Quartz

TC01 Gold Twin Tube Infrared Heating Lamp 500V Quartz

Brand Name:	UVIR
Model Number:	THG100047
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color:

Gold

Power:

500V

Material:

Quartz Tube

Reponse Time:

1-2s

Voltage:

115V

Total Length:

170mm

Heating Length:

100mm

Tube Diameter:

11*23

Base:

TC01

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Twin Tube Infrared Lamps

Quartz Twin Tube Infrared Lamps

500V Halogen Heating Lamps

Product Description

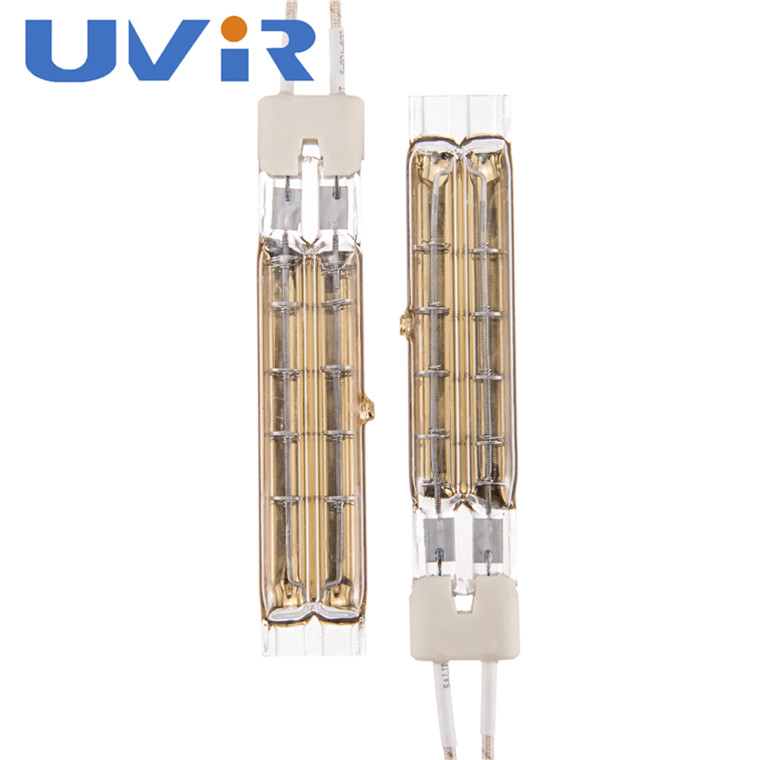

TC01 Gold Reflector Twin Tube Infrared Lamps, 500V Quartz Halogen Heating Lamps

Product Specifications

Attribute	Value
Color	Gold
Power	500V
Material	Quartz Tube
Response time	1-2s
Voltage	115V
Total length	170mm
Heating length	100mm
Tube diameter	11*23
Base	TC01

Short Wave IR Lamp Advantages

Wavelength controlled in 0.76~1.4μm range for optimal material heating
High thermal efficiency with 86%+ infrared radiation efficiency
Rapid response: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact size with high power capacity (single tube up to 6000W)
Optional gold reflective coating for enhanced efficiency and lower reflector temperature
Premium quartz glass construction ensures 5000+ hour lifespan
Compatible with automatic temperature control systems for precise regulation

Product Overview

Our infrared heaters provide energy savings up to 50% compared to conventional technologies, delivering targeted heat with optimal wavelength precision for your specific application.

Technical Details

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	Gold
Power	500W
Voltage	115V
Customization	Available for voltage, wattage, length, base type, cables, and universal burning position

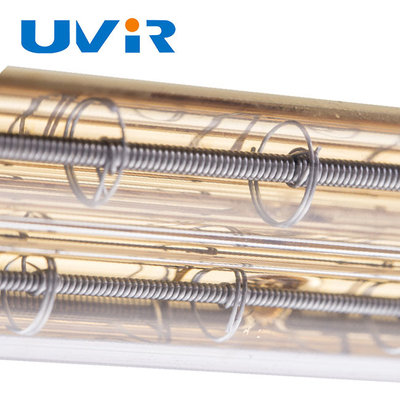

Twin Tube Infrared Lamp Components

Fused silica
Tungsten heating elements
Heating wire supports
End plate and ceramic end
Wire leads
Gold reflective layer
Proprietary gas composition

Product Specifications Table

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer.

What types of lamps do you produce?

Our main products include short wave infrared lamps, medium wave infrared lamps, and customized special shape infrared lamps in both single and twin tube configurations with halogen or carbon fiber filaments.

What specifications are needed when ordering?

Please provide: input voltage, lamp wattage, total length, heated length, tube diameter, reflector type, and lead wire requirements.

What are your payment terms?

We accept T/T, Western Union, MoneyGram, PayPal, and Trade Assurance.

How do you ensure quality control?

Our factory maintains CE, ISO9001, RoHS, and SGS certifications with strict quality control from raw materials to finished products.

Where is your factory located?

Our facility is in JiangMen City, Guangdong Province, China. Visitors can fly to Guangzhou Baiyun International Airport.

Installation Precautions

Always turn off power before installation or replacement
Never exceed maximum rated voltage (V > 110% of rated voltage may damage emitter)

For custom specifications not listed in our standard products, please contact our technical team for professional consultation and drawings.
