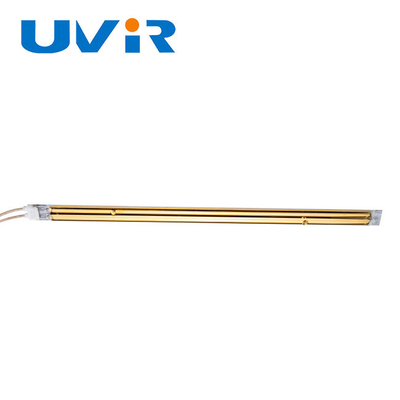

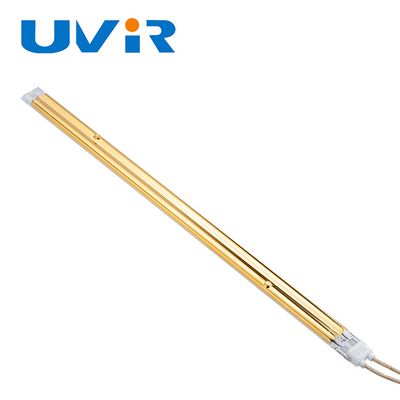

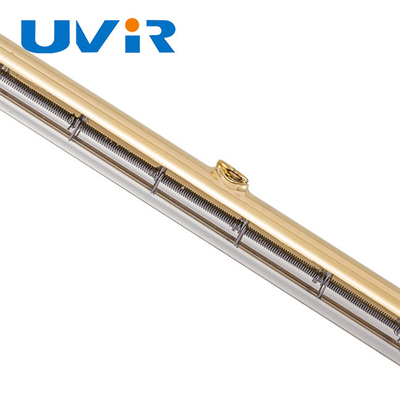

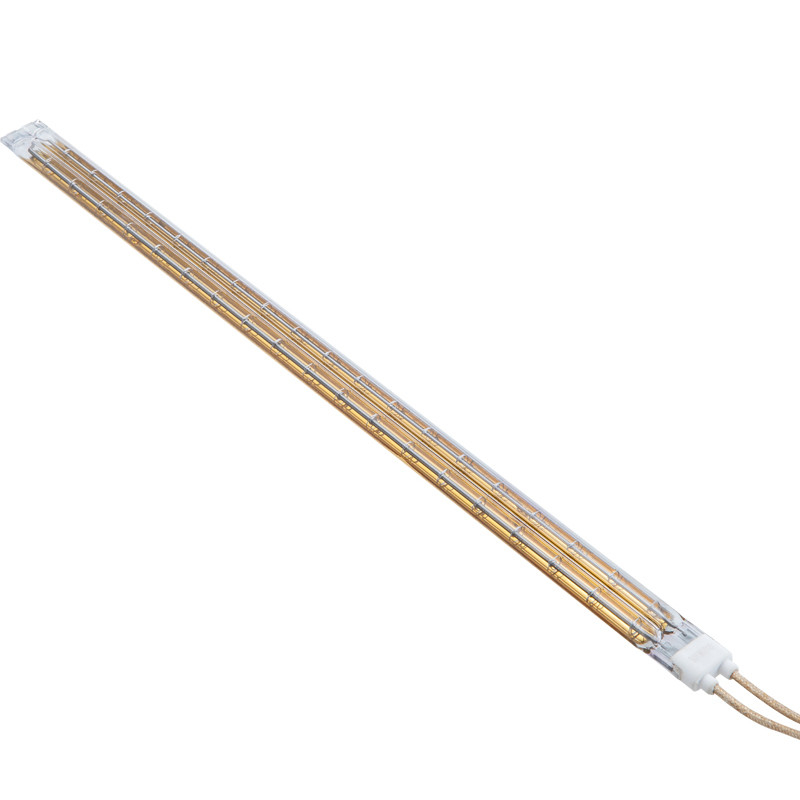

TC05 3825W Halogen Tungsten Infrared Heating Tube 400V

TC05 3825W Halogen Tungsten Infrared Heating Tube 400V

Brand Name:	UVIR
Model Number:	THG100124
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color:

Gold

Power(W):

3825W

Material:

Halogen Tungsten Filament Quartz

Heated Length:

390mm

Total Length:

445mm

Voltage(V):

400V

Base:

TC05

Tube Diameter:

11*23mm

Type:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

3825W Halogen Heating Tube

TC05 Halogen Heating Tube

heater halogen tube Tungsten Filament

Product Description

TC05 3825W Halogen Heating Tube Tungsten Filament Fast Response

Product Specifications

Attribute	Value
Color	Gold
Power (W)	3825W
Material	Halogen Tungsten Filament Quartz
Heated Length	390mm
Total length	445mm
Voltage (V)	400V
Base	TC05
Tube diameter	11*23mm
Type	B

TC05 3825W Heating Infrared Halogen Tungsten Filament Fast Response Tube Quartz Lamp

Short Wave IR Lamp Advantages

The wavelength is controlled in the range of 0.76 ~ 1.4 μm, allowing selection of different wavelength heating tubes based on material and physical characteristics of workpieces.
High thermal efficiency with infrared radiation efficiency exceeding 86% in specific wavelengths. Achieves 50% rated power in 1-2 seconds and full power in 2-4 seconds with rapid heating/cooling.
Compact size with high power capacity - single heating tube rated power can exceed 6000W.
Optional gold-containing directional reflecting layer on outer wall improves heating efficiency and reduces reflector temperature.
Premium quartz glass tubes and heating wire materials with professional processing ensure long service life exceeding 5000 hours.
Compatible with temperature controllers, thyristor AC power regulators for precise automatic temperature control.

Product Description

Infrared heater optimally matched to materials being heated, providing up to 50% energy savings compared to other technologies. Our professional infrared technology delivers heat exactly where needed with optimal wavelength.

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	White/Gold/Clear
Power	3825W
Voltage	400V
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning positions available

Technical Information

Standard cross-section dimensions for industrial IR twin tubes in mm. The strength of quartz tubes was increased using a steel beam design concept, allowing twin tube lengths up to 6m (cross section: 33 X 14 mm).

Twin Tube Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on required voltage/wattage relationship.

Product Details

Stock and Standard (Non-Stock) Twin Tube Short-Wave Lamps

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11x23	115	50	B	THG100151	THW100025	THC100026
115	400	11x23	115	50	B	THG100152	THW100026	THC100027
115	450	11x23	70	25	B	THG100153	THW100027	THC100028
115	450	11x23	72	25	B	THG100154	THW100028	THC100029
115	600	11x23	145	80	B	THG100155	THW100029	THC100030

If the parameter is not suitable for you, please contact us. Our professional team will provide expert knowledge and drawings.

Product Coding Rule Table

Frequently Asked Questions

1) How to place the order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector). We'll send a quotation. After payment, production begins and products ship when completed.

2) Why use a reflector?

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase effectiveness. Gold/ceramic coating converts nearly all electrical power into heat. For high watt density or temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). Custom coating degrees available.

3) Do you supply clamps for lamp installation?

Yes, we provide mounting clamps free with purchased lamps.

4) Have an unusual design?

Send drawings, sketches, or samples for quotation. We specialize in custom designs and small runs while remaining competitive on large orders.

5) How does your factory handle quality control?

"Quality is priority" - we maintain strict QC from material purchasing to final packing. Our products are CE, ROHS, and ISO9001 certified.
