Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100009 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Material: | Guartz Tube | Coating: | Gold |
|---|---|---|---|
| Warranty Time: | 5000 Hours | Filament: | Tungsten Wire |
| Power: | 415V | Voltage: | 1100W |
| Total Length: | 500mm | Heating Length: | 430mm |
| Line Length: | 500mm | Type: | B |
| Highlight: | 415V Twin Tube Infrared Lamps,Short Wave Twin Tube Infrared Lamps,Short Wave Infrared Heater 1100W |
||

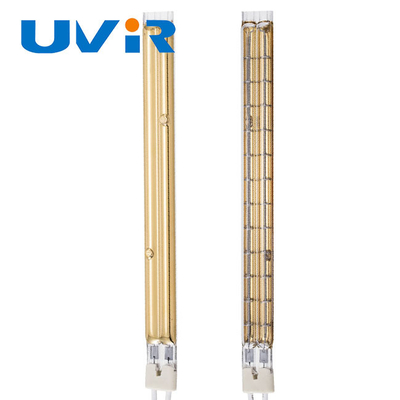

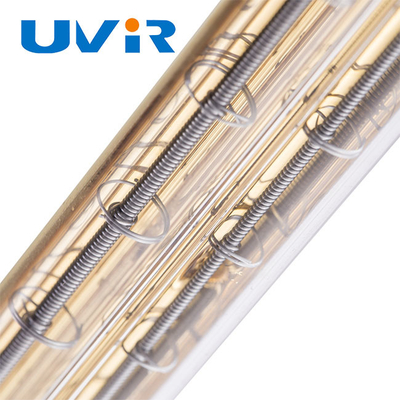

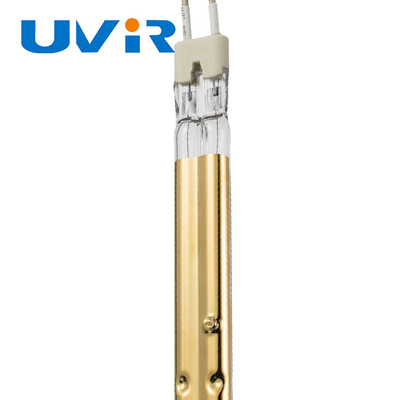

Twin Tube Horizontal Gold Coating Short Wave Infrared Heater Power Saving 415V 1100W
Short Wave IR Lamp Advantages
1. The wavelength is controlled in the range of 0.76 ~ 1.4 m, the user can choose different wavelength heating tubes according to the material and physical characteristics of the heated workpieces.
2. The heating tubes have high thermal efficiency, the infrared radiation efficiency can reach over 86% in a certain wavelength and direction. The thermal inertia of the infrared radiant heating tube is very small, it can reach about 50% of the rated power in 1 ~ 2 seconds after electrification, and can run at full power in about 2 ~ 4 seconds, heating up and cooling down quickly and accurately.
3. The heating tube has a small volume and a large power, the rated power of a single heating tube can be more than 6000W.
4. According to the needs of customers, a gold-containing directional reflecting layer can be sprayed on certain parts of the outer wall of the heating tube, which can greatly improve the heating efficiency, lower the temperature of the reflector.
5. high-quality quartz glass tubes and heating wire materials with professional processing technology, resulting in the long service life of infrared lamp tubes, the short-wave tube has a service life of more than 5000 hours.
6. All kinds of heating equipment made up of infrared radiation heating tube can realize automatic temperature control through temperature controller, thyristor AC power regulator or voltage regulator. Because of its small thermal inertia, the temperature control is quick and accurate.
Infrared lamps for Industrial applications
TECHNICAL NOTES
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
| Twin Twin Cross-Section |
Maximum Length, m |
S-W | M-W |
| 8x18 | 2.1 | N | Y |
| 23x11 | 3.5 | Y | Y |
| 33x14 | 4.0 | Y | Y |
Heater dim ensions depend on the required voltage/wattage relationship.
Product parameters
| Type | Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 415V |
| Voltage | 1100w |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps:
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2. Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
3. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
4. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
5.How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gainedCE, ROHS, ISO9001.
