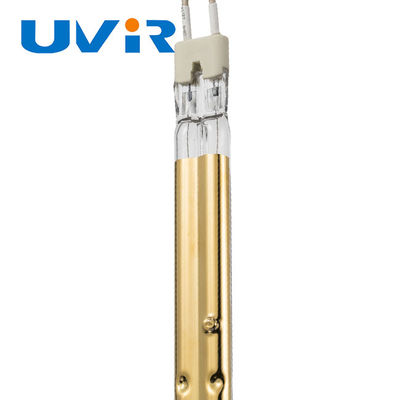

415V 1100W Twin Tube Short Wave Infrared Heater with Gold Coating

415V 1100W Twin Tube Short Wave Infrared Heater with Gold Coating

Brand Name:	UVIR
Model Number:	THG100009
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Material:

Guartz Tube

Coating:

Gold

Warranty Time:

5000 Hours

Filament:

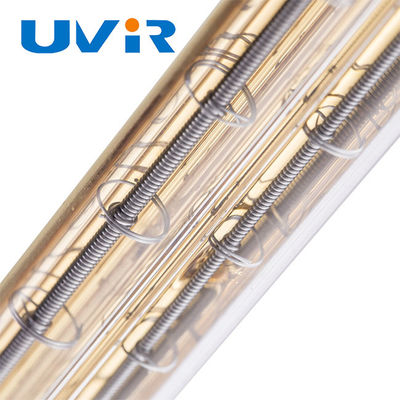

Tungsten Wire

Power:

415V

Voltage:

1100W

Total Length:

500mm

Heating Length:

430mm

Line Length:

500mm

Type:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

415V Twin Tube Infrared Lamps

Short Wave Twin Tube Infrared Lamps

Short Wave Infrared Heater 1100W

Product Description

415V Twin Tube Infrared Lamps, Short Wave Infrared Heater 1100W

Product Specifications

Attribute	Value
Material	Quartz tube
Coating	Gold
Warranty Time	5000 Hours
Filament	Tungsten Wire
Power	415V
Voltage	1100W
Total length	500mm
Heating length	430mm
Line length	500mm
Type	B

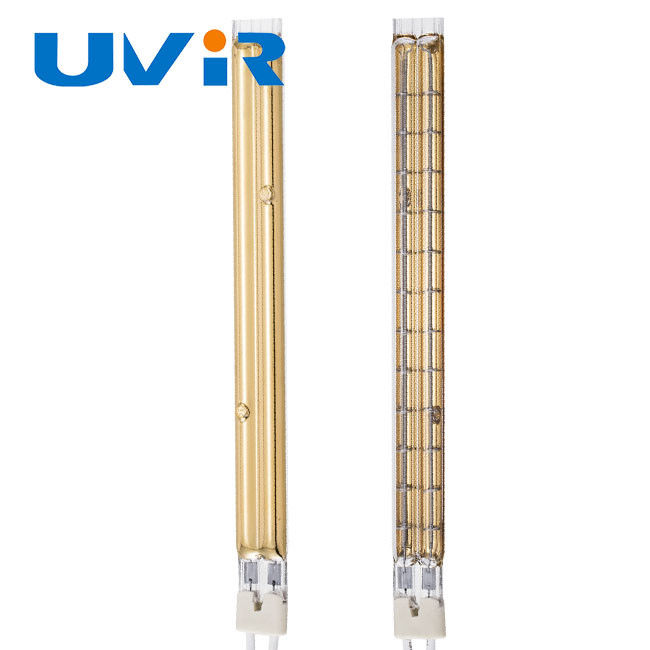

Twin Tube Horizontal Gold Coating Short Wave Infrared Heater

This power-saving 415V 1100W infrared heater features advanced gold coating technology for superior performance.

Short Wave IR Lamp Advantages

Wavelength controlled in the range of 0.76~1.4μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency exceeding 86% in specific wavelengths
Rapid response time: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact design with high power capacity (single tube can exceed 6000W)
Optional gold-containing directional reflecting layer for enhanced efficiency
Premium quartz glass and tungsten materials ensure 5000+ hour lifespan
Compatible with automated temperature control systems for precise regulation

Industrial Applications

Technical Specifications

Standard cross-section dimensions for industrial IR twin tubes in mm. The innovative steel beam-inspired design significantly increases quartz tube strength, enabling lengths up to 6m (33×14mm cross-section).

Twin Tube Cross-Section	Maximum Length (m)	Short Wave	Medium Wave
8×18	2.1	N	Y
23×11	3.5	Y	Y
33×14	4.0	Y	Y

Heater dimensions depend on required voltage/wattage relationship.

Product Parameters

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11×23mm
Coating	Gold
Power	415V
Voltage	1100W
OEM/ODM	Custom voltage, wattage, length, base, cables available with universal burning position

Standard Product Variations

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11×23	115	50	B	THG100151	THW100025	THC100026
115	400	11×23	115	50	B	THG100152	THW100026	THC100027
115	450	11×23	70	25	B	THG100153	THW100027	THC100028
115	600	11×23	145	80	B	THG100155	THW100029	THC100030
115	1100	11×23	205	140	B	THG100158	THW100032	THC100033
230	3000	15×33	650	500	C	THG100165	THW100039	THC100040
400	4800	15×33	500	800	B	THG100141	THW100062	THC100062
480	6000	15×33	1550	1000	B	THG100140	THW100065	THC100065

Product Coding System

OEM Services

Our technical team can recommend optimal heat lamp configurations for specific applications or design custom solutions based on your technical requirements.

We produce customized sizes, types, and specifications of heat lamps. Providing drawings ensures the most accurate samples.

Frequently Asked Questions

How to place an order?

Provide your lamp specifications (type, dimensions, power, voltage, reflector requirements). We'll send a quotation, and production begins after payment confirmation.

Why use a reflector?

Gold or ceramic reflectors concentrate heat output, improving efficiency. For temperatures above 800°C, ceramic coating is recommended. Custom reflector angles (including 180° half-tube) are available.

Do you supply mounting clamps?

Yes, we provide complimentary mounting clamps with lamp purchases.

Can you produce custom designs?

We specialize in custom designs and small production runs. Submit drawings, sketches, or samples for quotation.

How is quality controlled?

Our rigorous QC process covers materials, production, and packaging. Products are CE, ROHS, and ISO9001 certified.
