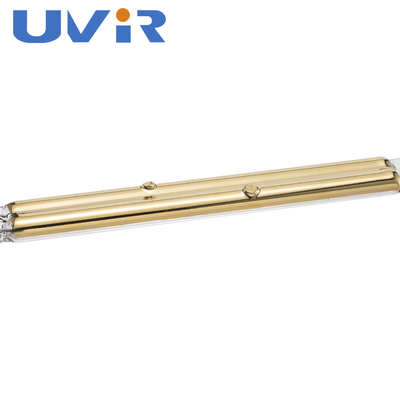

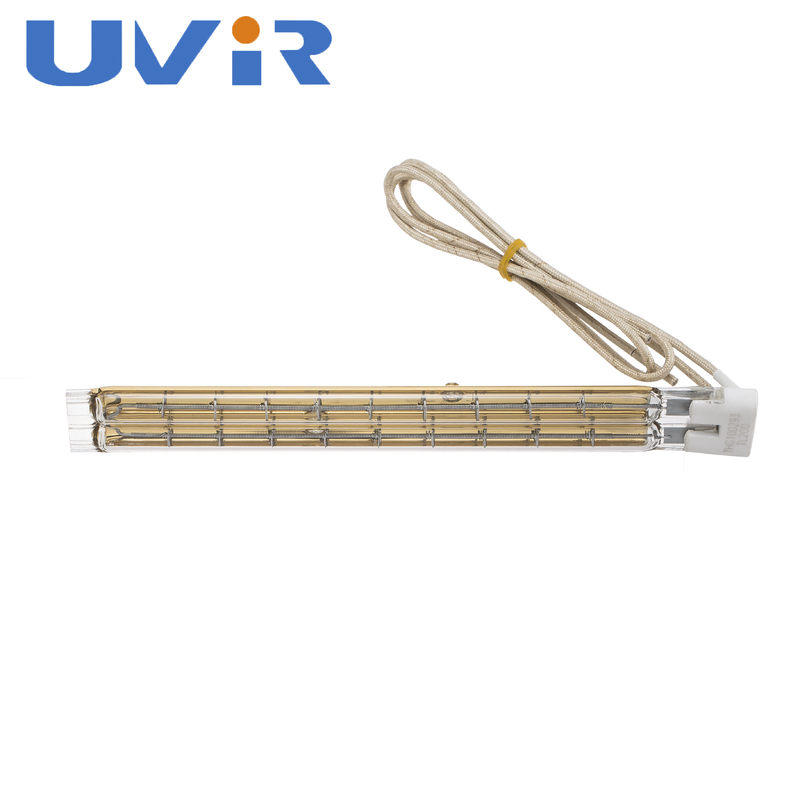

Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | THG100026 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Type: | Quartz Infrared Heater | Material: | Quartz Glass |
|---|---|---|---|
| Warrant Time: | 5000 Hours | Voltage: | 115V |
| Power: | 600W | Total Length: | 145mm |
| Heating Length: | 80mm | Pipe Diameter: | 11x23mm |
| Base: | TC02 | ||
| High Light: | Golden Twin Tube Infrared Heaters,Twin Tube Infrared Heaters 115V,short wave infrared heaters 600W |
||
INFRARED HEATING APPLICATIONS
■Automotive Industry
■Food Industry Browning
■Glass Industry Screen Printing
■Plastics Industry Thermoformin
PET bottles, Welding of Plastics
■Semiconductor Industry
■Textile Industry
■Ultrapure Water Processing
■Wood Industry

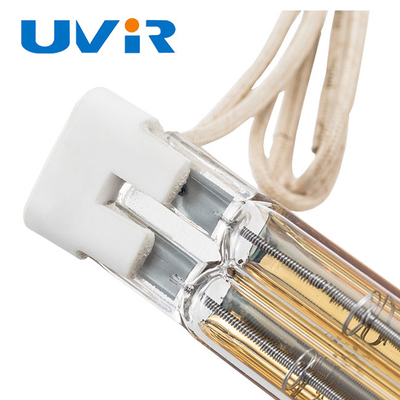

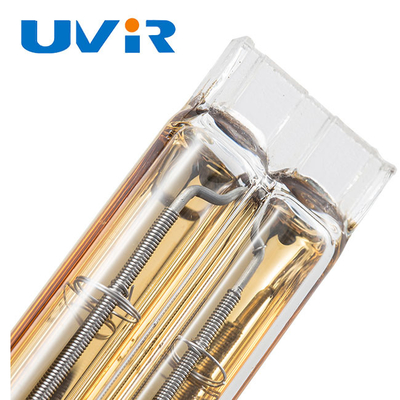

Main components of a twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads ,
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.
Standard cros S-S ection dimensions for industrial
IR twin tubes in mm
The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm)
| Twin Twin Cross-Section |
Maximum Length, m |
S-W | M-W |
| 8x18 | 2.1 | N | Y |
| 23x11 | 3.5 | Y | Y |
| 33x14 | 4.0 | Y | Y |
Heater dim ensions depend on the required voltage/wattage relationship.
Product parameters
| Type |
Twin Tube Short Wave Halogen Infrared Heating Lamp |
| Size | 11X23mm |
| Coating | Gold |
| Power | 115V |
| Voltage | 600W |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Twin Tu be Short-Wave Lamps
| Voltage V |
Wattage W |
Twin Tube |
Total Length |
Heated Length |
Disgn Type |
Gold | White | Clear |
| 55 | 400 | 11x23 | 115 | 50 | B | THG100151 | THW100025 | THC100026 |
| 115 | 400 | 11x23 | 115 | 50 | B | THG100152 | THW100026 | THC100027 |
| 115 | 450 | 11x23 | 70 | 25 | B | THG100153 | THW100027 | THC100028 |
| 115 | 450 | 11x23 | 72 | 25 | B | THG100154 | THW100028 | THC100029 |
| 115 | 600 | 11x23 | 145 | 80 | B | THG100155 | THW100029 | THC100030 |
| 115 | 900 | 11x23 | 170 | 115 | B | THG100156 | THW100030 | THC100031 |
| 115 | 1000 | 11x23 | 192 | 127 | B | THG100157 | THW100031 | THC100032 |
| 115 | 1100 | 11x23 | 205 | 140 | B | THG100158 | THW100032 | THC100033 |
| 120 | 700 | 11x23 | 140 | 89 | B | THG100159 | THW100033 | THC100034 |
| 120 | 800 | 11x23 | 167 | 102 | B | THG100160 | THW100034 | THC100035 |
| 120 | 1180 | 11x23 | 250 | 150 | B | THG100161 | THW100035 | THC100036 |
| 230 | 1200 | 11x23 | 405 | 340 | B | THG100162 | THW100036 | THC100037 |
| 230 | 1500 | 11x23 | 300 | 200 | B | THG100163 | THW100037 | THC100038 |
| 230 | 2350 | 11x23 | 410 | 355 | B | THG100164 | THW100038 | THC100039 |
| 230 | 3000 | 11x23 | 650 | 500 | C | THG100165 | THW100039 | THC100040 |
| 230 | 500 | 15x33 | 510 | 500 | B | THG100114 | THW100061 | THC100061 |
| 400 | 4800 | 15x33 | 500 | 800 | B | THG100141 | THW100062 | THC100062 |
| 400 | 6200 | 15x33 | 1100 | 1030 | B | THG100002 | THW100063 | THC100063 |
| 400 | 15720 | 15x33 | 850 | 1334 | H | THG100186 | THW100064 | THC100064 |
| 480 | 6000 | 15x33 | 1550 | 1000 | B | THG100140 | THW100065 | THC100065 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table
Our Advantages
1. Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies.
2. Very Good And Stable Quality
3. 24Hrs Customer Support
4. CE,ISO9001,RoHS,SGS authentication.
5. Low MOQ,1pcs for sample checking is available.
No.4 Customized Service
1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
After-sale Service
1. Warranty Time of Short wave Infrared heat lamp: 5,000 hours
2. During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
FAQ
Q1. Can all the products be customized?
A: We are the factory of making IR lamps,UV lamp,IR accessories.All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock.Usually need about 15days to maked.
Q4. Order quantity?
A: Customized IR Lamps Usually is 2 pieces.
