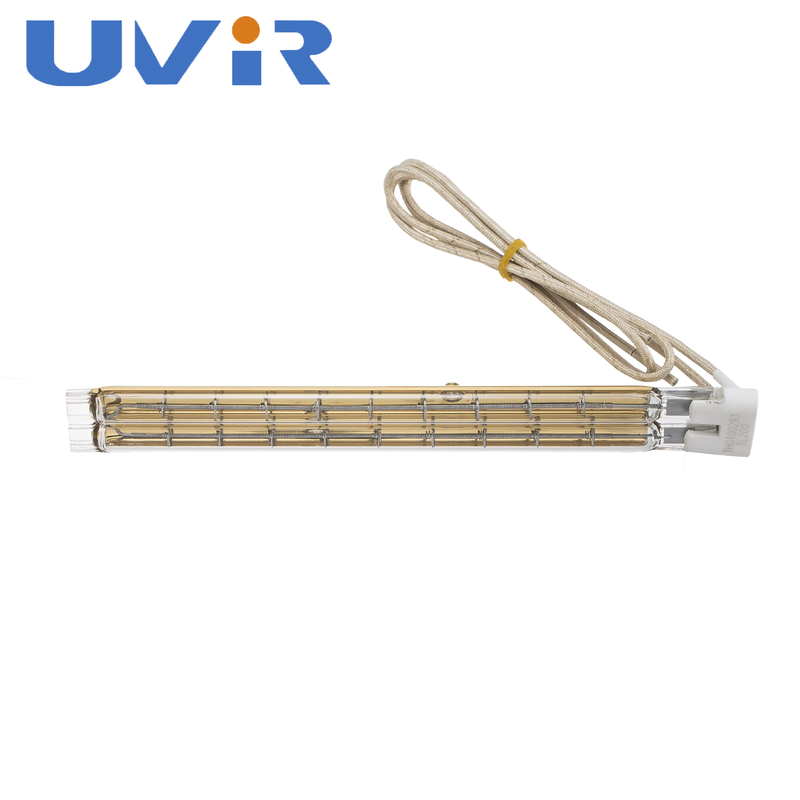

115V 600W Gold Twin Tube Infrared Heater for Paint Drying

115V 600W Gold Twin Tube Infrared Heater for Paint Drying

Brand Name:	UVIR
Model Number:	THG100026
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Type:

Quartz Infrared Heater

Material:

Quartz Glass

Warrant Time:

5000 Hours

Voltage:

115V

Power:

600W

Total Length:

145mm

Heating Length:

80mm

Pipe Diameter:

11x23mm

Base:

TC02

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Golden Twin Tube Infrared Heaters

Twin Tube Infrared Heaters 115V

short wave infrared heaters 600W

Product Description

115V 600W Golden Short Wave Twin Tube Infrared Heaters For Paint

Product Specifications

Attribute	Value
Type	Quartz Infrared Heater
Material	Quartz Glass
Warranty Time	5000 Hours
Voltage	115V
Power	600W
Total Length	145mm
Heating length	80mm
Pipe diameter	11x23mm
Base	TC02

Infrared Heating Applications

Automotive Industry
Food Industry Browning
Glass Industry Screen Printing
Plastics Industry Thermoforming
PET bottles, Welding of Plastics
Semiconductor Industry
Textile Industry
Ultrapure Water Processing
Wood Industry

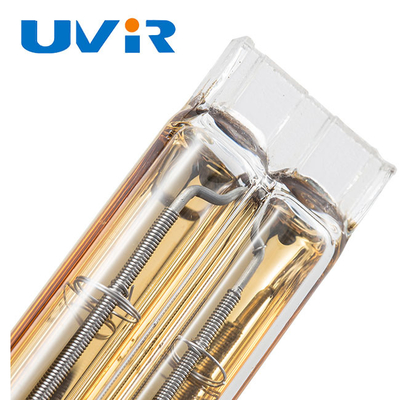

Main Components

Fused silica
Tungsten heating elements
Supports for heating wire

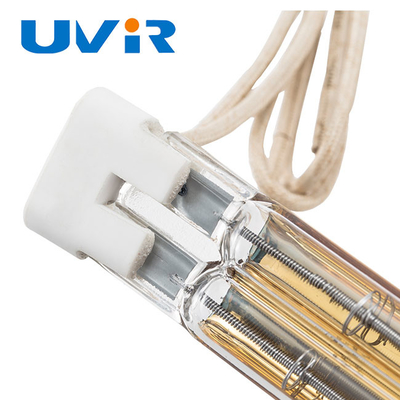

End plate and ceramic end
Wire leads

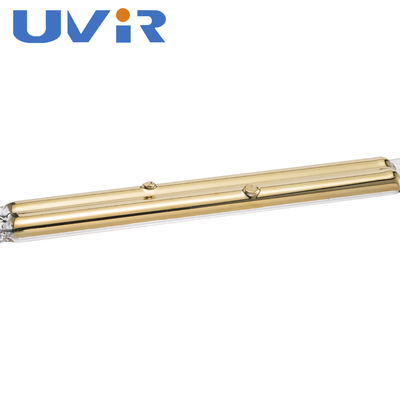

Reflective layer (gold layer)
Proprietary gas composition

Standard Cross-Section Dimensions

The strength of a quartz tube was drastically increased by borrowing a design concept from the construction industry: the steel beam. This new design allows twin tube lengths of up to 6 m (cross section: 33 X 14 mm).

Twin Twin Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on the required voltage/wattage relationship.

Product Parameters

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11X23mm
Coating	Gold
Power	115V
Voltage	600W
OEM/ODM	Many types of voltage, wattage, length, base, cables available with universal burning position

Our Advantages

Infrared heater provides energy savings of up to 50% over other technologies
Very Good And Stable Quality
24Hrs Customer Support
CE, ISO9001, RoHS, SGS authentication
Low MOQ, 1pcs for sample checking available

Customized Service

All infrared heater lamps are customized according to your unique practical request
Professional technicians provide one-to-one service
Can customize 1pc IR lamp for quality testing
OEM services available with your logo printed on lamps
