Gold Reflector Single Tube Ring Infrared Lamp for Plastic Welding Circular Infrared Heater

Gold Reflector Single Tube Ring Infrared Lamp for Plastic Welding Circular Infrared Heater

Brand Name:	UVIR
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Power:

100-7600W

Material:

Quartz Tube

Reflector:

Gold

Warranty(Year):

1-Year

Ring Diameter:

39-606mm

Voltage:

24-575V

Tube Diameter:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Ring Infrared Lamp

Single Tube Circular Infrared Heater

Plastic Welding Ring Infrared Lamp

Product Description

Product Overview

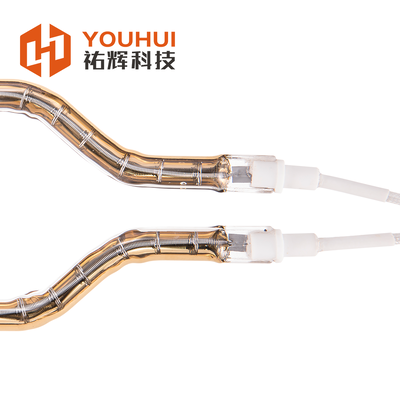

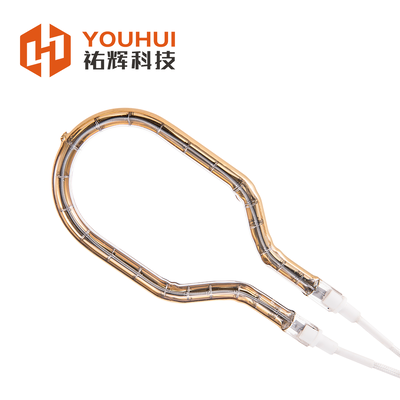

The Ring Shape Full Gold Halogen Infrared Lamp is a single-tube radiator engineered for plastic welding and other precision industrial heating applications. Its gold reflector and quartz tube construction deliver focused, high-efficiency infrared radiation with rapid thermal response and long service life.

Power	100–7600 W
Material	Quartz tube
Reflector	Gold
Warranty	1-Year
Ring Diameter	39–606 mm
Voltage	24–575 V
Tube Diameter	8–14 mm

Key Advantages

Economy: Compact and lightweight design reduces production facility costs, while long lamp life minimizes maintenance expenses.
Heat Impact Resistance: The quartz glass envelope provides superior resistance to thermal shock compared to standard incandescent lamps.
High Efficiency: The compact quartz bulb delivers high luminous output per watt with minimized tungsten filament evaporation.
Long Life: Halogen cycle technology extends service life to approximately twice that of ordinary incandescent lamps.
Stable Color Temperature: The halogen cycle prevents bulb blackening and maintains consistent light intensity throughout the lamp's life.
Rapid Thermal Response: Achieves maximum radiation output in 40–50 seconds and cools down quickly when switched off.

Technical Specifications

Filament	Tungsten & Glass
Tube Color	Gold
Wavelength	1.2 μm
Voltage	24–575 V
Power	100–7600 W
Color Temperature	2450 K
Common Diameter	8–14 mm
Life Time	5000 Hours

Our professional infrared technology delivers precise heating with optimal wavelength matching, achieving up to 50% energy savings compared to conventional heating methods.

Standard Ring Lamp Specifications

Custom configurations are available — contact our technical team for specialized requirements.

Industry Applications

Industry	Applications	Recommended Lamp Type
Plastics	Bottle blowing, thermoforming, welding	Half white reflector infrared lamp
Paper	Drying, printing processes	Clear short wave heat lamp
Food	Food processing, catering	Ruby heat lamp round halogen oven lamp
Wood & Composites	Drying, curing, powder coating	White reflector infrared heat lamp

After Sales Support

Package tracking
Technical support
24-hour response time
Reorder discounts
Quality problem replacements
Customer information confidentiality

Our Service Advantages

Expert sales teams for accurate communication
Professional technical teams for product development
Skilled production teams for assembly line manufacturing
Dedicated quality inspection teams
Experienced after-sales support

Frequently Asked Questions

Are you a factory or trading company?

We are a professional factory specializing in infrared heater lamps.

How do you ensure quality control?

Our professional technical team and experienced workers maintain strict quality control from material selection through production to final packaging.

How can I get samples?

We are pleased to provide samples upon request.
