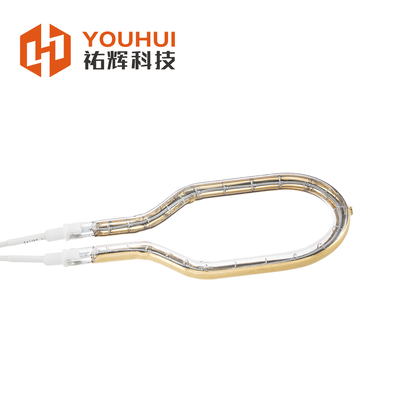

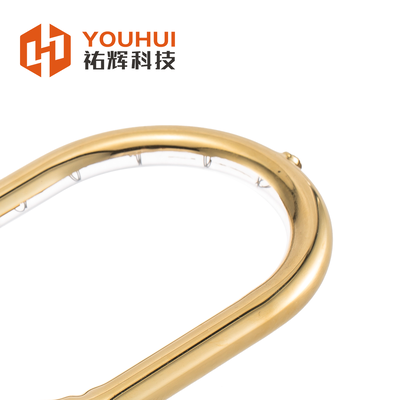

Gold Reflector Single Tube Ring Infrared Lamp for Plastic Welding Circular Infrared Heater

Gold Reflector Single Tube Ring Infrared Lamp for Plastic Welding Circular Infrared Heater

Brand Name:	UVIR
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Place Of Origin::

Guangdong, China

Color::

Gold

Material::

Quartz Tube

Type::

Infrared Heater

Voltage::

24-575V

Reflector::

CLEAR / Ceramic White

Power:

100-7600W

IR Diameter:

39-606mm

Tube Diameter:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Ring Infrared Lamp

Plastic Welding Circular Infrared Heater

Single Tube Ring Infrared Lamp

Product Description

Product Specifications

Place of Origin	Guangdong, China
Color	Gold
Material	Quartz Tube
Type	Infrared Heater
Voltage	24–575V
Reflector	Clear / Ceramic White
Power	100–7600W
IR Diameter	39–606mm
Tube Diameter	8–14mm

Key Advantages

Economy: Compact and lightweight design reduces production facility costs, while long lamp life minimizes maintenance expenses.
Heat Impact Resistance: The quartz glass envelope provides superior resistance to thermal shock compared to standard incandescent lamps.
High Efficiency: Quartz glass construction delivers high luminous output per watt with minimized tungsten filament evaporation.
Long Life: Halogen cycle technology extends service life to approximately twice that of conventional incandescent lamps.
Stable Color Temperature: Maintains consistent light intensity and color temperature throughout the lamp lifespan.
Fast Response: Achieves maximum radiation output in 40–50 seconds with rapid cool-down when switched off.

Technical Parameters

Pipe Diameter	8mm
IR Diameter	102mm
Voltage	230V
Power	1850W
Wavelength	Short wave, medium wave, long wave
Coating	Gold / White / Clear
Shape	Ring, oval, omega, etc. (custom shapes available)

Standard Product Specifications

Voltage (V)	Power (W)	Tube Dia. (mm)	IR Dia. (mm)	Angle (°)	Model Numbers
115	250	8	39	0	RHC800023 \| RHG800063 \| RHG800064 \| RHG800065
120	650	10	32	90	RHC800028 \| RHG800078 \| RHG800043 \| RHG800093
230	1500	8	80	0	RHC800024 \| RHG800066 \| RHG800067 \| RHG800068
230	1850	8	102	90	RHC800025 \| RHG800025 \| RHG800025 \| RHG800025
230	2000	8	154	90	RHC800026 \| RHG800072 \| RHG800073 \| RHG800074

Custom specifications are available. Contact our team for professional consultation and technical drawings.

Common Applications

Heating: Space heaters, saunas, electric hot tables, incubators, brooders, farm greenhouses
Automotive: Primer, color, and powder coating; seat de-wrinkling; headliner forming
Plastics: Welding, forming, softening, curing, drying
Printing: Ink drying, silk screening, bindings, glue drying
Food Processing: Baking, browning, dehydrating, pasteurizing
Textiles: Web drying, finishing, pre-shrinking
Glass-Ceramics: Heating safety glass, drying mirrors, drying frit

OEM Services

Our technical team can assist in selecting or designing the optimal heat lamp for your specific application requirements. We manufacture customized sizes and types of heat lamps based on customer specifications. Technical drawings are welcome for precise customization.
