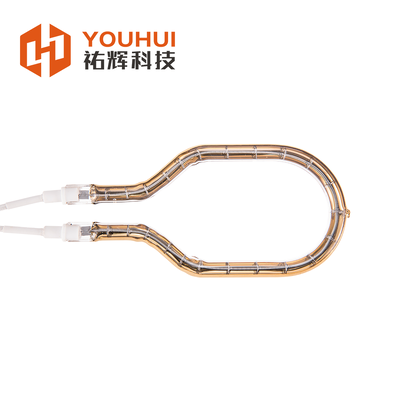

Gold Coated Single Tube Ring Infrared Lamp for Plastic Welding and Circular Infrared Heater Applications

Gold Coated Single Tube Ring Infrared Lamp for Plastic Welding and Circular Infrared Heater Applications

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Input Voltage(V)::

55-575V

Lighting Solutions Service::

Lighting And Circuitry Design

Material::

Tungsten (filament), Quartz (tube)

Item::

Ring Tube IR Lamp

Ring Diameter::

39-606mm

Reflector::

Gold/white/Clear

Power:

100-6000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coated Ring Infrared Lamp

Plastic Welding Circular Infrared Heater

Single Tube Ring Infrared Lamp

Product Description

Product Specifications

Attribute	Value
Input Voltage (V)	55–575 V
Lighting Solutions Service	Lighting and circuitry design
Material	Tungsten (filament), Quartz (tube)
Item	Ring tube IR lamp
Ring Diameter	39–606 mm
Reflector	Gold / White / Clear
Power	100–6000 W

Benefits of Infrared Heat Lamps

Infrared heaters matched to the materials being heated can provide energy savings of up to 50% over other technologies. Our professional infrared technology delivers precise heating exactly where needed, with the optimum wavelength for your application.

Technical Parameters

Voltage: 55–575 V
Outside diameters: 39–606 mm
Tube diameter: 8–14 mm
Filament type: Tungsten / Carbon
Lamp tube material: Quartz tube
Reflector options: Gold / Ceramic white / Clear
Filament temperature: 1100–2600 °C
Response time: 1–2 s
OEM/ODM available with various voltage, wattage, length, base, and cable options

Ring Tube IR Lamps — Special Designs for Circular 2D and 3D Surfaces

Ring diameter from 39 mm up to 600 mm
Voltage range from 24 V to 575 V
Available in short, medium, and long-wave IR designs
Multiple tube color options
Tube diameter options from 8–14 mm (selected based on heater diameter and voltage/wattage requirements)
Standard stock items available for immediate delivery
Custom and OEM designs available

OEM Services

Our technical team can advise on selecting the optimal heat lamp for your specific application or design custom lamps based on your technical requirements. We produce various sizes and types of heat lamps according to customer specifications, with sample production available for approved designs.

Product Coding Rule Table

Frequently Asked Questions

Q1. Can all the products be customized?

A: All infrared and ultraviolet products can be customized, including equipment and repair services with drawing processing.

Q2. What is the outer package of the product?

A: Lamp tubes (up to 20 pieces) are packaged in paper packs. For products exceeding 800 mm in length or heavy equipment, we use wooden cases. Please contact customer service for specific packaging requirements.

Q3. What is the processing cycle?

A: Standard lamp tube production takes about 20 days, while equipment production requires longer lead times. Exact timelines will be confirmed by customer service.

Q4. What is the minimum order quantity?

A: Minimum order quantity for lamp tubes is 3–5 pieces. Equipment MOQ is 1 set. Please consult customer service for specific requirements.

If our standard parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings for your specific needs.
