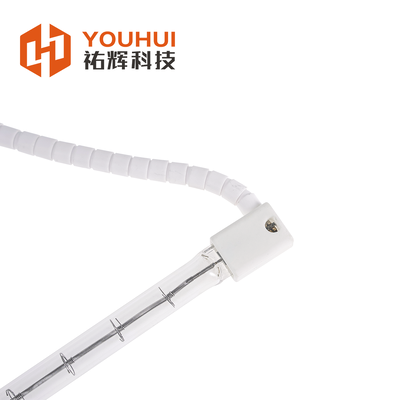

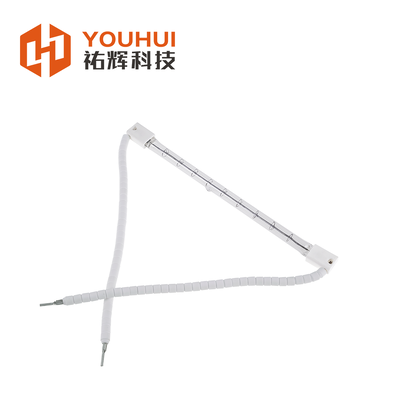

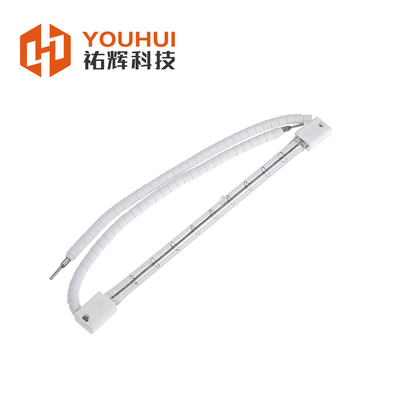

Fast Preheating Halogen Infrared Heater Lamp with 5000h Worktime and 1100-2600°C Filament Temperature

Fast Preheating Halogen Infrared Heater Lamp with 5000h Worktime and 1100-2600°C Filament Temperature

Brand Name:	UVIR
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Item:

Short Wave Single IR Lamp

Lamp Base:

SK15

Power:

200-4000W

Total Length:

50-1500mm

Tube Diameters:

8-24mm

Material:

Quartz Tube/tungsten Wire

Worktime:

5000h

Filament Temperature:

1100-2600°C

Application:

Infrared Heater, Painting Drying

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Fast Preheating Halogen Infrared Heater Lamp

5000h Worktime Quartz Infrared Lamp

1100-2600°C Filament Temperature Tungsten Heating Tube

Product Description

Fast Preheating Single Tube Straight Halogen Infrared Heater Lamp Quartz Glass Tungsten Heating Tube OEM Custom

Product Specifications

Attribute	Value
Item	Short wave Single IR Lamp
Lamp Base	SK15
Power	200-4000W
Total length	50-1500mm
Tube diameters	8-24mm
Material	Quartz tube/tungsten wire
Worktime	5000h
Filament temperature	1100-2600°C
Application	Infrared heater, Painting drying

Product Overview

High-Performance Single Tube Straight Halogen Infrared Heater Lamp - Optimized for Industrial Preheating & Fast Heating

Maximize your production efficiency with our Single Tube Straight Halogen Infrared Heater Lamp. Utilizing a high-purity quartz glass envelope and a precision-engineered tungsten filament, this industrial-grade heating element emits intense shortwave infrared radiation. It is specifically designed to deliver immediate, high-density heat directly to the target material, making it the perfect choice for industrial equipment preheating, rapid drying, and fast heating applications.

Core Performance Advantages

Rapid Preheating & Fast Heating (1-3s Response)

In fast-paced manufacturing, every second counts. Our halogen infrared lamp features extremely low thermal inertia, achieving full power output in just 1 to 3 seconds. This rapid preheating capability eliminates waiting times, accelerates production cycles, and minimizes energy waste during idle periods.

High-Purity Quartz Glass & Tungsten Construction

Built for demanding industrial environments, the lamp is crafted from shock-resistant quartz glass and a premium tungsten wire. This robust construction ensures excellent thermal stability, allowing the lamp to withstand extreme surface temperatures (up to 900°C) and guaranteeing a reliable lifespan of over 5,000 hours.

Superior Energy Conversion Efficiency

Stop wasting power heating the ambient air. Our shortwave infrared technology transfers over 95% of electrical energy directly into radiant heat. This direct-to-object heating method significantly reduces your operational energy costs while providing faster and more uniform heating results.

Seamless Industrial Equipment Integration

The single-tube straight design is engineered for easy installation and optimal heat distribution. It integrates perfectly into existing industrial equipment, including conveyor ovens, tunnel dryers, and automated preheating stations, ensuring consistent and precise temperature control.

Clean, Non-Contact Heating

The radiant heating process does not generate airflow or physical contact, preventing surface contamination. This makes it highly suitable for precision industrial processes such as plastic thermoforming, adhesive activation, and coating curing.

Versatile Industrial Applications

Industrial Equipment Preheating: Rapid preheating of metals, plastics, and composite materials prior to processing.
Fast Heating & Drying: Accelerating paint curing, adhesive activation, and moisture removal in manufacturing lines.
Plastic Thermoforming: Providing uniform, high-intensity heat for vacuum forming and bending processes.
Custom Equipment Integration: Tailored heating solutions for industrial ovens, tunnel dryers, and automated assembly lines.

Safety & Handling Guidelines

Clean Installation: Always avoid touching the quartz envelope with bare hands. Natural skin oils can create hot spots and shorten the lamp's life. Clean with an alcohol-moistened cloth if necessary.
Eye Protection: Prolonged direct viewing of the operating shortwave lamp can cause eye damage. Always install appropriate shielding or wear protective eyewear.
Environment: Ensure the operating environment is dry and well-ventilated to maintain electrical safety and optimal performance.

Partner with Us for Custom Heating Solutions

As a specialized manufacturer of industrial infrared heating elements, we provide comprehensive OEM/ODM services. Whether you need standard replacements or custom-engineered heating elements with specific voltage, wattage, or dimensions, our team is ready to deliver.
