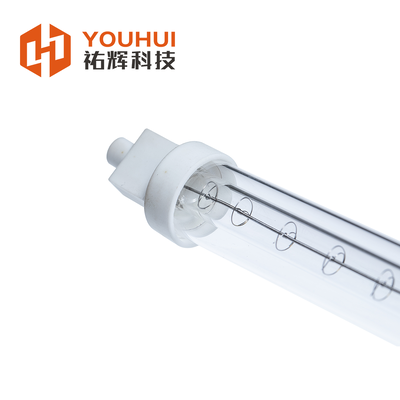

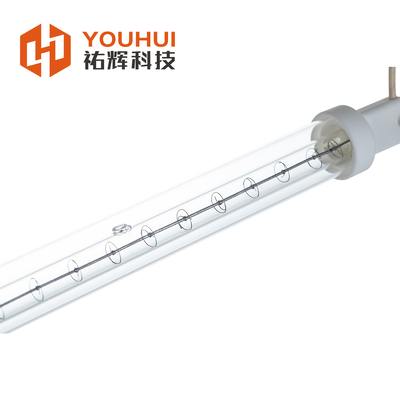

Long Lifespan 5000h Working Time Short Wave Infrared Halogen Lamp with 1100-2600°C Filament Temperature and Clear Quartz Heating Element

Name

Long Lifespan 5000h Working Time Short Wave Infrared Halogen Lamp with 1100-2600°C Filament Temperature and Clear Quartz Heating Element

Brand Name: UVIR
Model Number: -
MOQ: 10
Price: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Wave Length:
Short Wave
Reflector:
Clear
Application:
Infrared Heater, Painting Drying
Material:
Tungsten(filament),quarz(tube)
Working Time:
5000h
Filament Temperature:
1100-2600°C
OEM/ODM:
Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available
Place Of Origin:
Guangdong, China
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Product Description
Long Lifespan Single Tube Short Wave Infrared Halogen Lamp
Clear Quartz Heating Element for Printing Ink Curing
Product Specifications
Wave Length short wave
Reflector clear
Application Infrared heater, Painting drying
Material Tungsten (filament), quartz (tube)
Working time 5000h
Filament temperature 1100-2600°C
OEM/ODM Many types of voltage, wattage, length, base, cables, universal burning position available
Place of Origin Guangdong, China
Fast Shortwave Infrared Quartz Tube Metal Base
High-performance heating solution with transparent quartz glass construction for efficient infrared radiation.
Heating Lamps for Various Applications
Support (Zone) Application Suggested IR Lamp Type
Plastics • Bottle blowing • Thermoforming
• Plastic forming • Welding
• Serigraphy • Strapping		 Half white reflector infrared lamp
Paper • Drying • Copying
• Offset printing • Ink jet
• Serigraphy		 Clear short wave heat lamp
Half white heat lamp
Food • Food catering • Food processing Ruby heat lamp round halogen oven lamp
Wood & Composites • Drying • Curing • Powder coating White reflector infrared heat lamp
Gold reflector heat lamp
Shoes & Fabrics • Drying • Curing White reflector/gold reflector/clear/ruby
Metal • Strapping • Coil coating
• Powder coating		 Gold reflector heat lamp/twin tube IR lamp
Paint • Automobile repair shops • Powder coating Ruby jacked heat lamp/reflector lamp
Animal care • Breeding and rearing of animals • Veterinary clinics, zoos, pet shops and beauty parlors Ruby IR lamp
Key Features
  • Premium Quartz & Halogen Technology: Crafted with high-purity quartz glass and a premium tungsten filament, this single tube short wave infrared halogen lamp delivers exceptional thermal conductivity and high-temperature resistance, ensuring stable and reliable performance in demanding industrial environments.
  • Ultra-Fast Heating Response: Featuring advanced short wave infrared technology, this quartz heating lamp reaches maximum output in seconds. Its rapid heat-up and cool-down capabilities significantly reduce cycle times, making it highly efficient for continuous industrial drying and curing processes.
  • Precise & Deep Penetration: The single tube halogen infrared emitter provides intense, directional short wave IR radiation that penetrates deep into materials. This ensures uniform heating from the inside out, making it ideal for applications like plastic thermoforming, paint baking, and PET bottle blowing.
  • High Energy Efficiency & Long Lifespan: Designed to maximize heat output while minimizing energy waste, our infrared heating tube offers a prolonged lifespan compared to standard heating elements. The robust quartz construction withstands frequent thermal cycling, reducing maintenance and replacement costs.
  • Wide Industrial Applications: Highly versatile and customizable, this short wave infrared halogen lamp is perfect for a variety of industrial uses including printing ink drying, plastic shrinkage, glass tempering, and food processing. (Note: Please check the specifications for exact voltage, wattage, and dimensions to ensure compatibility with your equipment.)
Product coding rule table for infrared lamps showing technical specifications and classification system High power single tube infrared emitter showing detailed construction and metal base
After Sales Service
  • Package tracking
  • Technical support
  • 24 hours working time
  • Discount for reorder
  • Replacements for quality problems
  • Confidentiality of customer information
Frequently Asked Questions
Are you a factory or trading company?
We are a professional factory.
Where is your factory located? How can I visit there?
Our factory is located in JiangMen City, Guangdong Province, China. You can fly to GuangZhou BAIYUN airport directly. We warmly welcome all clients from home and abroad to visit us!
Can I get some samples?
We are happy to offer samples for you to check and test.
Do you have any MOQ limit?
Low MOQ, 1pcs for sample checking is available.
How long shall I wait for quotation?
Usually we will quote you the best price within 24 hours after your inquiry. If it's special customized heating lamp, the time needed for samples could be longer.
Do you offer guarantee for the products?
Yes, we will confirm with you the guarantee period in formal quotation together with data sheet.
