Industrial Single Tube Short Wave Infrared Halogen Lamp with 5000h Lifetime, 1100-2600°C Filament Temperature, and 200-4000W Power

Name

Industrial Single Tube Short Wave Infrared Halogen Lamp with 5000h Lifetime, 1100-2600°C Filament Temperature, and 200-4000W Power

Brand Name: UVIR
Model Number: SHC100075
MOQ: 10
Price: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Tube Material:
Glass Tube
Color:
Clear
Total Length:
50-1500mm
Filament Temperature:
1100-2600°C
Material:
Tungsten(filament),quarz(tube)
Application:
Infrared Heater, Painting Drying
Lifetime:
5000h
Power:
200-4000W
Voltage:
55-575V
Heating Length:
50-1500mm
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Product Description

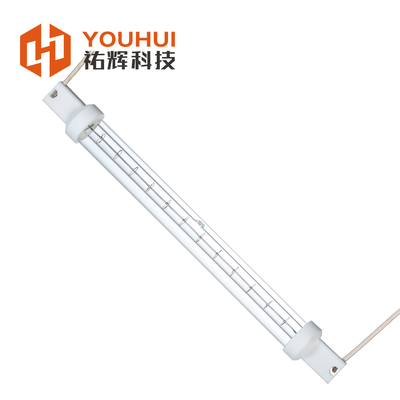

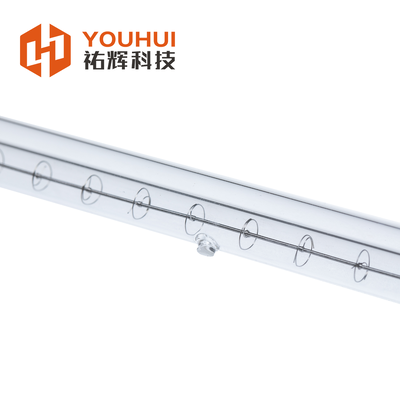

Industrial Single Tube Short Wave Infrared Halogen Lamp

Quartz Glass Heating Tube for preheat applications in industrial manufacturing processes.

Product Specifications
Attribute Value
Tube material Glass tube
Color Clear
Total length 50-1500mm
Filament temperature 1100-2600°C
Material Tungsten (filament), quartz (tube)
Application Infrared heater, Painting drying
Lifetime 5000h
Power 200-4000W
Voltage 55-575V
Heating length 50-1500mm
Industrial Applications
Industry Applications Recommended Lamp Type
Plastics Bottle blowing, Thermoforming, Plastic forming, Welding, Serigraphy, Strapping Half white reflector infrared lamp
Paper Drying, Copying, Offset printing, Ink jet, Serigraphy Clear short wave heat lamp, Half white heat lamp
Food Food catering, Food processing Ruby heat lamp round halogen oven lamp
Wood & Composites Drying, Curing, Powder coating White reflector infrared heat lamp, Gold reflector heat lamp
Shoes & Fabrics Drying, Curing White reflector/gold reflector/clear/ruby
Metal Strapping, Coil coating, Powder coating Gold reflector heat lamp/twin tube IR lamp
Paint Automobile repair shops, Powder coating Ruby jacked heat lamp/reflector lamp
Animal care Breeding and rearing of animals, Veterinary clinics, zoos, pet shops and beauty parlors Ruby IR lamp
Standard Single Tube Construction Types

Additional Standard End Terminations Available Upon Request

Single tube infrared heating lamp construction
Infrared lamp termination types
Product coding rule table for infrared lamps
High power single tube infrared emitter
Our Manufacturing Capabilities

Our company produces and wholesales: ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources and peripheral accessories products, lamp stands, transformers, etc. Various products can be customized according to customer requirements.

If you have any requirements, please contact us.
Frequently Asked Questions
  1. Are you a factory or trading company?
    We are a professional factory.
  2. Where is your factory located? How can I visit there?
    Our factory is located in JiangMen City, Guangdong Province, China. You can fly to GuangZhou BAIYUN airport directly. We warmly welcome all the clients at home and abroad to visit us!
  3. Can I get some samples?
    We are happy to offer samples for you to check and test.
  4. Do you have any MOQ limit?
    Low MOQ, 1pcs for sample checking is available.
  5. How long shall I wait for quotation?
    Usually we will quote you the best price within 24 hours after your inquiry. If it's special customized heating lamp, the time needed for samples could be longer.
  6. Do you offer guarantee for the products?
    Yes, we will confirm with you the guarantee period in formal quotation together with data sheet.
