Short Wave Infrared Heating Lamp with 1-2μm Wavelength, 5000h Working Time, and 55-575V Voltage for Industrial Drying

Name

Short Wave Infrared Heating Lamp with 1-2μm Wavelength, 5000h Working Time, and 55-575V Voltage for Industrial Drying

Brand Name: UVIR
Model Number: SHW100303
MOQ: 10
Price: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Reflector:
Clear
Voltage:
55-575V
Warranty(Year):
1-Year
Tube Diameters:
8-24mm
Material:
Tungsten
Wavelength:
1-2μm
Working Time:
5000h
Usage:
Heating
Application:
Infrared Heater, Painting Drying
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Product Description
Short Wave Infrared Quartz Heating Lamp
Single Tube Halogen IR Emitter for Printing Ink Drying
Product Specifications
Attribute Value
Reflector White
Voltage 55-575V
Warranty 1-Year
Tube diameters 8-24mm
Material Tungsten
Wavelength 1-2μm
Working Time 5000h
Usage Heating
Application Infrared heater, Painting drying
Key Benefits
  • Superior to traditional hot air, ceramic, gas, and metal radiators
  • No contact or intermediate conversion medium required
  • Rapid energy release for precise heating control
  • Energy savings up to 50% compared to conventional methods
Product Details
Product Name Infrared heating lamp
Material Quartz tube and tungsten wire
Voltage 55-575V
Wattage 200-4000W
Base SK15T
Warranty 5000 hours
Reflector Clear
OEM/ODM available with various voltage, wattage, length, base, and cable configurations. Universal burning position supported.
High-Quality Coating (Optional)
Semi-plated white coating using quartz powder technology reflects over 90% of infrared heat in one direction, minimizing energy loss.
Standard Single Tube Construction Types
Additional standard end terminations available upon request.

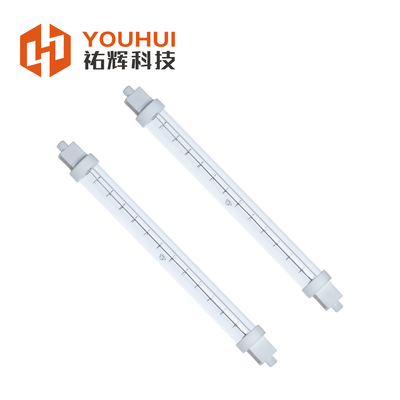

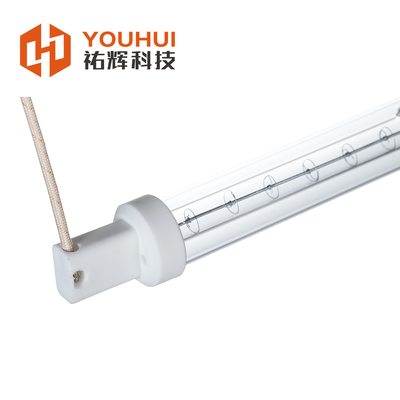

White quartz infrared lamp with metal base Infrared heating lamp product view Product coding rule table for infrared lamps
Applications
  • Plastics Processing: IR drying of coatings, stretching/shrinking plastics, blow molding of PET bottles
  • Photovoltaic Industry: String soldering, preheating for sputtering processes
  • Printing Industry: Curing ink on cloth, drying inkjet-based CTP plates
  • Food & Chemical Industry: Disinfection, food heating, herbal medicine processing
  • Glass Industry: Preheating car glass, drying coatings, manufacturing laminated glass
  • Textiles Industry: Drying coatings, laminating fabrics
  • Electronic Industry: Coating components, aging tests
Also suitable for: flooring, metal, paper, packaging, powder, coating, rubber, wood, semiconductors, and more.
Our Services & Strengths
  • Expert sales teams for accurate communication
  • Professional technical teams for product development
  • Skilled production teams for assembly line manufacturing
  • Rigorous quality inspection processes
  • Experienced after-sales support
Contact us for any specific requirements or custom solutions.
