Short Wave Infrared Halogen Lamp with 5000h Work Time and 1-2μm Wavelength for Industrial Drying and Curing

Short Wave Infrared Halogen Lamp with 5000h Work Time and 1-2μm Wavelength for Industrial Drying and Curing

Brand Name:	UVIR
Model Number:	SHC100648-1
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Keywords:

Infrared Lamp Heater Lamp

Type:

Short Wave

Wavelength:

1-2μm

Work Time:

5000h

Color:

Clear

Material:

Quartz Tube/tungsten Wire

Application:

Infrared Heater, Painting Drying

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Product Description

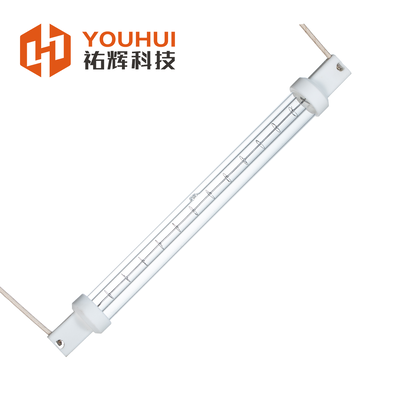

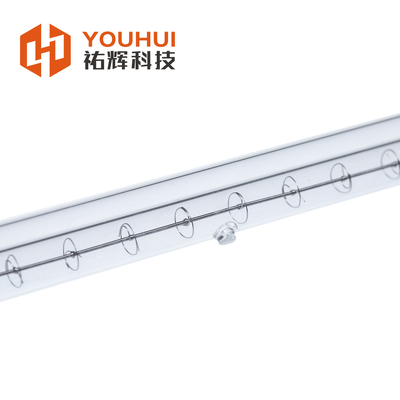

Single Tube Short Wave Infrared Halogen Lamp

Quartz heating element designed for industrial drying and curing applications, offering high efficiency and precise thermal control.

Product Specifications

Type	Short wave
Wavelength	1-2μm
Work Time	5000h
Color	Clear
Material	Quartz tube/Tungsten wire
Application	Infrared heater, Painting drying

Key Advantages

Premium Materials: Manufactured from imported high-end quartz tube
Extended Lifespan: 5000 hours operation time
High Efficiency: Over 85% heat efficiency at full power
Energy Saving: Gold or non-organic reflective layer concentrates radiation energy
Clean Heating: No surface corrosion or dropping off
Precise Control: Adjustable heating time as needed
Environmentally Friendly: No contamination risk to environment or target objects
Customizable: Wavelength, dimensions, and filaments can be adjusted to requirements

Technical Specifications

Material	Quartz tube and tungsten wire
Voltage	24-575V (Customized options available)
Wattage	200-5000W (Customized options available)
Base	SK15T
Warranty	5000 hours
Reflector	Clear
OEM/ODM	Custom voltage, wattage, length, base, cables available

Design Characteristics

Power range: 200 to 5,000 W
Voltage range: 24 to 575 V
Short, Medium and Long-Wave IR designs available
Filament temperatures: 1,100°C to 2,600°C
Heat lengths: 50 to 1,500 mm
Reflective layers: gold or white
Fast response time (1 second for Short-Wave)
Tube diameters: 8 to 25 mm
Standard stock items for immediate delivery
Custom and OEM designs available

Applications

Plastics Processing

IR drying of coatings on plastics
IR stretching or shrinking plastics
Plastic packaging heating
Blow moulding of PET bottles

Photovoltaic Industry

String soldering
Preheating for sputtering processes

Printing Industry

Curing ink on cloth
Drying for inkjet-based CTP plates
Drying of printing products (e.g., banners machine)

Food and Chemical Industry

Disinfection of tableware
Heating of chicken and vegetables
Processing natural herbal medicine
Removing snow and ice

Glass Industry

Preheating of car glass
Drying of coatings on glass
Manufacturing and cutting laminated glass

Textiles Industry

Drying of coatings on textiles
Laminating of fabrics

Electronic Industry

Coatings on electronic components
Aging of electronic components

Our lamps are also suitable for: flooring, metal, paper, packaging, powder, coating, rubber, wood, semiconductors, and more.

Manufacturing Capabilities

We produce and wholesale ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources with peripheral accessories. Various products can be customized according to customer requirements.

After Sales Service

Package tracking
Technical support
24-hour service
Discounts for reorders
Replacements for quality issues
Confidentiality of customer information
