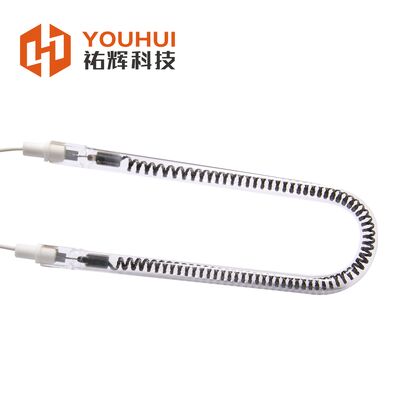

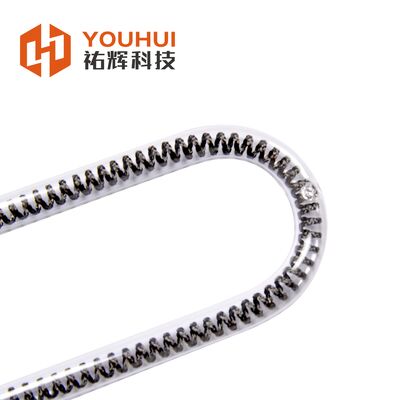

U-Shaped Single Tube Carbon Fiber Infrared Heating Lamp with 1100-2600°C Filament Temperature and Gold Reflector

U-Shaped Single Tube Carbon Fiber Infrared Heating Lamp with 1100-2600°C Filament Temperature and Gold Reflector

Brand Name:	UVIR
Model Number:	SCG100021
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Base Type:

Warranty(Year):

1 Year

Color:

Clear

Product Name:

U Shape Carbon IR Emitters

Filament Temperature:

1100-2600°C

Application:

Infrared Heater, Painting Drying

Filament Type:

Carbon

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Product Description

Premium Carbon Wire Medium Wave Infrared Heater Tubes

U-Shaped Single Tube Carbon Fiber Infrared Emitters designed for industrial heating applications with superior performance and longevity.

Base Type	R7S
Warranty	1 Year
Color	Clear
Product Name	Single Tube Carbon IR Emitters
Filament Temperature	1100-2600°C
Application	Infrared heater, Painting drying
Filament Type	Carbon
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available

Medium Wave Carbon Halogen Lamp Heat Emitters

Featuring golden reflector and R7S base for optimal infrared radiation performance.

Benefits of Infrared Heating Lamp

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament that doesn't fluff
Optimum power and maximum longevity

Quartz Glass Tube

High-quality high-temperature quartz glass
Long service life: over 5000 hours
Nontoxic with no peculiar smell, no risk of contamination

Product Specifications

Product Name	Carbon IR Heating Lamp
Heating Length	50-1500mm, Customizable
Voltage	Customized
Wattage	Customized
Base	R7S
Material	Quartz Tube
Reflector	Gold
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available

High Temperature Heating Technology

Tungsten wire heats and heats the gas in the quartz tube under the AC voltage, resulting in infrared radiation. The red tube has excellent quality, high thermal efficiency, high power density, rapid heating, power saving, and long life.

Infrared wavelengths are in the range of the 750nm to 1mm electromagnetic spectrum.

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products, such as using in banners machine

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

Frequently Asked Questions

Q1. Can all the products be customized?

We are the factory of making IR lamps, UV lamps, and IR accessories. All our products can be made to your specifications.

Q2. What is the outer package of the product?

Carton packing or wooden packing.

Q3. Processing cycle?

Some products we have in stock. Usually need about 15 days to manufacture.

Q4. Order quantity?

Customized IR Lamps usually start from 2 pieces.
