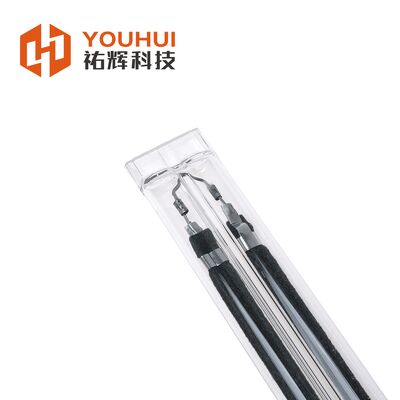

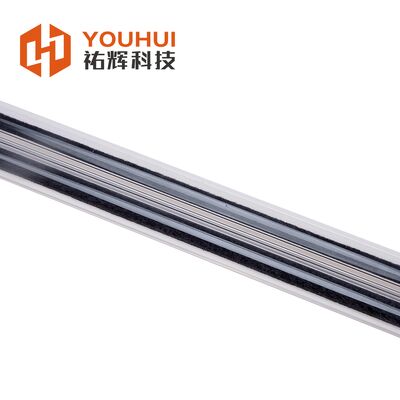

Dual-tube medium-wave carbon felt infrared heating lamp with 5000-20000H working time and 200-5000W power for precise temperature control

Precise temperature control for higher efficiency, dual-tube medium-wave carbon felt infrared heating lamp

Our carbon medium wave half gilded infrared heating tubes can be fully customized to meet your specific requirements. We offer flexible options for:

• Length and diameter specifications
• Power output configurations
• Fitting sockets and ceramic bases

Our proprietary ceramic bases are designed to withstand UVC radiation, ozone, heat, and moisture while maintaining a high-quality appearance. Alternative base materials are available upon request.

• Versatile heat source: Available in lengths from 60-3000mm with power options from 10-10000W
• Instant heat: Achieves more than 90% emission within 1 second
• Clean operation: No byproducts or pollution
• Safe construction: Quartz envelope with heat shock resistance
• Energy efficient: Over 85% of consumed energy converted to infrared heat
• Precise control: Fully dimmable from 0% to 100%
• Sensor compatible: On/Off switches don't affect lamp lifetime
• Long lifespan: Minimum 5,000 hours operation
• Directional heating: Heat can be focused using reflectors
• Compact design: Narrow diameter lamps for space-efficient installation

What information should I provide when making an inquiry?

Please include: lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length (standard is 300mm), coating preference (gold/ceramic), and quantity. For new projects, describe your application including material, required working temperature, heating time, and heating size.

Do you supply clamps for lamp installation?

Yes, we provide mounting clamps free of charge with purchased lamps. The quantity of clamps matches your lamp order.

Do you accommodate custom designs?

We specialize in custom solutions. Send us your drawing, sketch, or sample and we'll provide a quote. We're competitive for both small custom runs and large volume orders.
