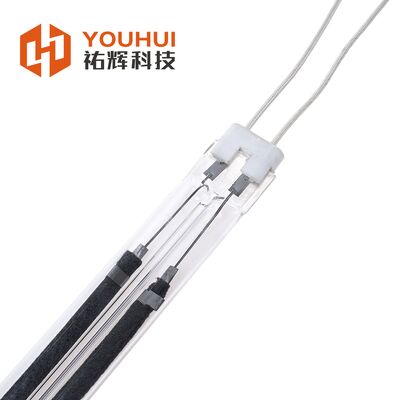

Twin Tube Carbon Fiber IR Heating Lamp with 10,000 Hours Warranty for Water-Based Paint Drying (200-4000W)

Twin Tube Carbon Fiber IR Heating Lamp with 10,000 Hours Warranty for Water-Based Paint Drying (200-4000W)

Brand Name:	UVIR
Model Number:	TMG100011
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

Twin Tube Carbon IR Heating Lamp

Material:

Carbon Fiber & Glass Tube

Power:

200-4000W

Coating:

Gold /White/Clear Coating

Warranty Period:

10,000 Hours

Application:

Glass Fiber Products

Total Length:

50-1500mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Product Description

Twin Tube Clear Quartz Carbon Felt IR Heating Lamp for Water-based Paint Drying

Twin Tube clear quartz Carbon felt IR Heating Lamp for Water-based paint drying

Product Specifications

Name	Twin tube Carbon Fiber IR heating lamp
Material	Carbon fiber & glass tube
Power	200-4000W
Coating	Clear/Gold/White
Warranty Period	10,000 hours
Application	Glass Fiber Products, Water-based paint drying
Total length	50-1500mm

Reflector Coating Recommendations

For emitters with high watt density or surface temperatures above 800°C, we recommend ceramic coating reflectors with temperature resistance up to 1000°C. We offer 180° (half-tube) coating, 270° coating, and custom coating specifications.

Energy Efficient Infrared Heating Technology

Our infrared heaters provide energy savings up to 50% compared to conventional technologies. The professional infrared technology delivers precise heating with optimal wavelength matching for your specific application requirements.

Infrared Twin Tube Technology

Infrared (IR) radiation (0.76μm to 1000μm) lies just beyond visible light in the electromagnetic spectrum. While invisible, IR shares light properties including speed, directability, and vacuum transmission. When absorbed, IR causes molecular vibration that generates internal heat without requiring a heating medium.

Custom Applications

Heating: Space heaters, saunas, electric hot tables, incubators, brooders, greenhouses
Automotive: Coat curing, seat de-wrinkling, headliner forming
Plastics: Welding, forming, softening, curing, drying
Printing: Ink drying, silk screening, bindings, glue drying
Food Processing: Baking, browning, dehydrating, pasteurizing
Textiles: Web drying, finishing, pre-shrinking
Glass-Ceramics: Safety glass heating, mirror drying, frit drying

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer of infrared heating solutions.

What types of lamps do you produce?

Our product range includes short wave infrared lamps, medium wave infrared lamps, and custom-shaped infrared lamps in both single and twin tube configurations with halogen or carbon fiber filaments.

What specifications are needed for custom orders?

Please provide: input voltage, lamp wattage, total length, heated length, tube diameter, reflector type, and lead wire requirements.

What payment methods do you accept?

We accept T/T, Western Union, MoneyGram, PayPal, and Trade Assurance payments.
