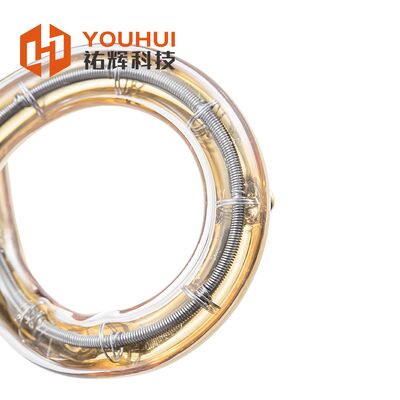

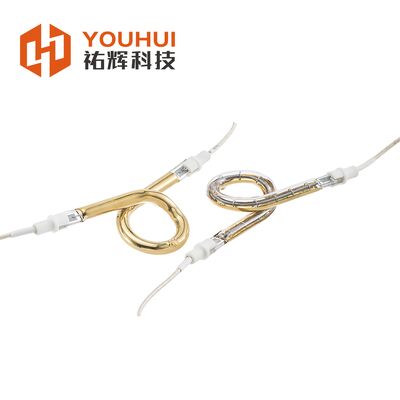

Short Wave Ring Infrared Heating Lamp with 5000 Hours Lifespan, High Purity Quartz Glass, and Customizable Diameter 39-600mm

Short Wave Ring Infrared Heating Lamp with 5000 Hours Lifespan, High Purity Quartz Glass, and Customizable Diameter 39-600mm

Brand Name:	UVIR
Model Number:	RHG800101
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color::

Clear, White, Ruby, Gold

Material::

Tungsten (filament)

Quartz Tube:

99.99% High Purity Quartz Glass

Power Source::

Electric

Voltage::

12V-480V

Tube Cross Section 1::

8mm 10mm 12mm 12.8mm 14mm 15mm 19mm 22mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Product Description

Ring Tube Infrared Heating Halogen Lamp Tube IR Emitters for Plastic Thermoplastic

Short Wave Ring Infrared Lamps with Tungsten Filament and Quartz Glass Tube

Product Specifications

Attribute	Value
Color	Clear, White, Ruby, Gold
Material	Tungsten (filament)
Quartz Tube	99.99% High Purity Quartz Glass
Power Source	Electric
Voltage	12V-480V
Tube Cross Section	8mm, 10mm, 12mm, 12.8mm, 14mm, 15mm, 19mm, 22mm

Customized Halogen Lamp Ring Type Infrared Tube

Short-Wave Infrared Lamp with superior heating performance and durability.

OYATE Heat Lamp Advantages

High-priced imported carbon fiber filament
Smooth finished filament that doesn't fluff
Advanced carbon fiber weaving process for smooth surface
Optimized power delivery for maximum longevity
High quality high-temperature quartz glass tube (single or twin tube)
Completely transparent at IR radiation
Twin tube option for increased heat output

Technical Specifications

Feature	Specification
Filament	Tungsten
Tube Color	Clear, White, Gold
Wavelength	1.3μm
Voltage	24-575V
Power	100-7600W
Color Temp	2450K
Common Diameter	8-14mm
Life Time	5000 Hours

Ring Tube IR Lamps Design Features

Special designs for circular 2,3-D surfaces
Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs available
Multiple tube color options
Tube diameter from 8-14 mm (selected based on heater diameter and voltage/wattage relationship)
Standard stock items for immediate delivery
Custom and OEM designs available

Infrared Wavelength Segments

1.0 ~1.3 μm Short-wave infrared
1.6 ~ 1.8 μm Medium-short wave infrared
2.5 μm Medium-wave infrared

Reflector Heat Lamp Features

Transmits and focuses heat efficiently on material
Special reflector directly applied on quartz tube
Available in gold, white and ruby reflectors
Ruby and gold options reduce visible light brightness while increasing heat
White reflector coating is stable and durable
Gold plating offers superior reflection efficiency

Reflector lamps focus infrared heat forward where required, reducing heat loss and improving efficiency. The reflective coating typically covers 180° of the quartz tube, directing heat output forward.

Available Variants

Short wave clear heat lamp
Short wave white heat lamp

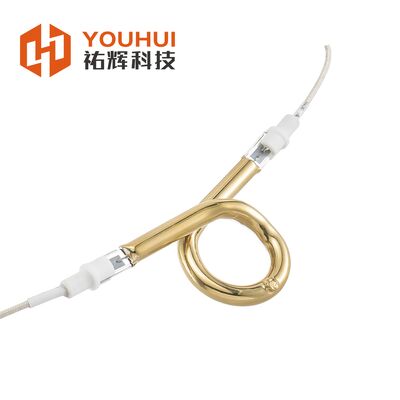

Short wave gold heat lamp

Frequently Asked Questions

Could you supply clamps for lamp installing?

Yes, we provide mounting clamps for clients, with corresponding clamps quantity supplied freely with purchased lamps.

How does your factory do quality control?

"Quality is priority" - we maintain strict QC from material purchasing to final packing. Our products are CE, ROHS, and ISO9001 certified.

What information should I provide when enquiring?

Please provide lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length (standard 300mm), coating preference (gold/ceramic), and quantity. Drawings or pictures are helpful if available.
