3D Single Tube Gold Coating Infrared Quartz Heater Lamp 8-14mm with 5000-20000h Lifespan Halogen Tube

3D Single Tube Gold Coating Infrared Quartz Heater Lamp 8-14mm with 5000-20000h Lifespan Halogen Tube

Brand Name:	UVIR
Model Number:	3D Shaped
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours):

5000-20000h

Brand Name:

UVIR Infrared Lamp

Specification:

8-14mm

Filament Temp:

1100-2600C

Response Time:

1-2s

Power:

150-6000W

Voltage:

45-480V

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Coating Infrared Quartz Heater Lamp

8-14mm Halogen Tube

5000-20000h Lifespan Infrared Heating Element Tube

Product Description

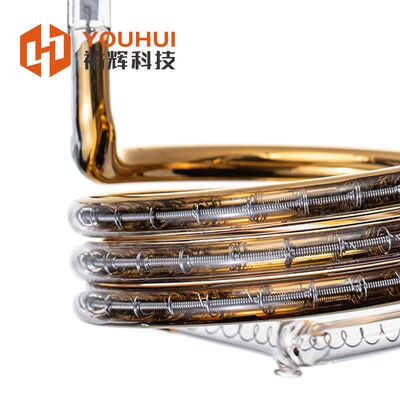

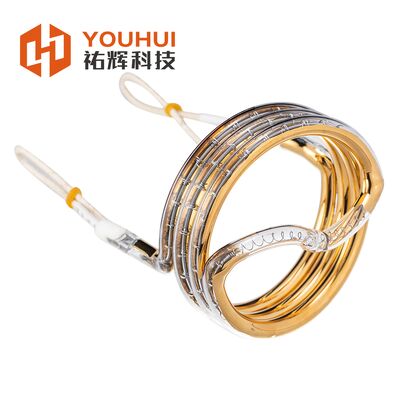

3D Single Tube Gold Coating Infrared Quartz Heater Lamp

Product Overview

Advanced 3D ceramic white coating infrared quartz heater lamp with gold coating for superior thermal performance and energy efficiency.

Key Specifications

Lifespan	10,000-20,000 hours
Brand Name	UVIR Infrared Lamp
Specification	8-14mm
Filament Temperature	1100-2600°C
Response Time	1-2 seconds
Power Range	150-6000W
Voltage Range	45-480V
Coating	Gold

Technical Advantages

Premium Materials: Manufactured from imported high-end quartz tubes
Extended Lifespan: 5,000 hours for mid and low temperature models
High Efficiency: Over 85% heat efficiency at full power
Energy Saving: Gold or non-organic reflective layer concentrates radiation energy
Reliable Performance: No surface corrosion or material dropping off
Precise Control: Adjustable heating time to meet specific requirements
Clean Operation: No contamination risk to environment or target objects
Custom Solutions: Adjustable wavelength, dimensions, and filaments
Space Efficient: Compact design with superior heating results

Detailed Technical Parameters

Product Name	3D Contoured Infrared Lamp
Reflector	White
Voltage	45-480V
Wattage	150-6000W
Quartz Tube	8-14mm
Shape	3D

Available Configurations

Standard models include SHG300169, SHW300001, SHC300002, and SHW300002 configurations with various technical specifications.

Custom Solutions

If our standard parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings for your specific needs.

OEM Services

We offer expert guidance in selecting the optimal heat lamp for your application. Our technical department can design custom lamps based on your specific technical requirements.

Frequently Asked Questions

Can all the products be customized?

As a manufacturer of IR lamps, UV lamps, and accessories, we can produce all products to your exact specifications.

What is the outer package of the product?

We use either carton packing or wooden packing for shipment.

What is the processing cycle?

Some products are available from stock. Custom orders typically require about 15 days for production.

What is the minimum order quantity?

The minimum order quantity for customized IR lamps is typically 2 pieces.
