45-480V Twin Tube Gold Coating Infrared Heating Lamp Halogen Heater Tube for Industrial Applications

45-480V Twin Tube Gold Coating Infrared Heating Lamp Halogen Heater Tube for Industrial Applications

Brand Name:	UVIR
Model Number:	3D-U shape
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

45-480V

Lighting Solutions Service:

Lighting And Circuitry Design

Color:

Clear,White,gold

Power:

150-6000W

Quartz Tube:

8-14mm

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

45-480V Infrared Heating Lamp

Twin Tube Halogen Heater Tube

Gold Coating Short Wave IR Lamp

Product Description

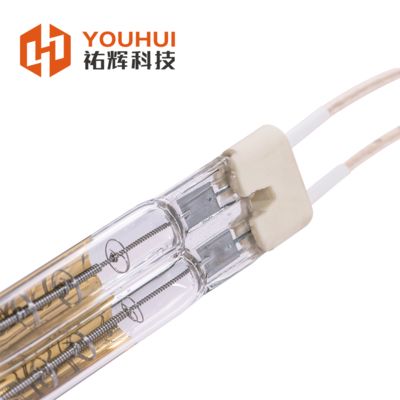

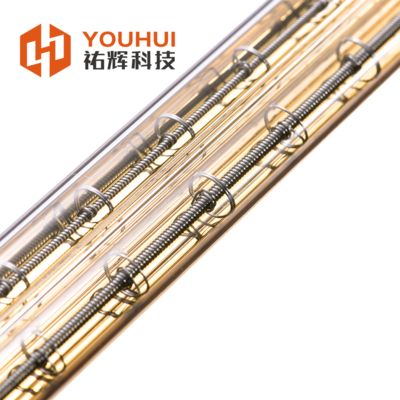

45-480V Twin Tube Halogen Infrared Emitters Short Wave Heater Lamp

High-performance twin tube halogen infrared emitters designed for efficient short wave heating applications across various industrial sectors.

Product Specifications

Attribute	Value
Voltage (V)	45-480V
Lighting Solutions Service	Infrared Heating Solution
Color	Clear, White, Gold
Power	150-6000W
Quartz Tube	8-14mm
Coating	Gold

Product Description

U-shaped uncoated halogen quartz glass infrared heating lamp engineered for superior thermal performance and durability.

Reflector Coating Benefits

All emitters can be coated with gold or ceramic reflectors to concentrate heat and increase output effectiveness. Coated emitters are highly economical, converting nearly all electrical power into heat. For applications with high watt density or surface temperatures above 800°C, ceramic coating is recommended due to its temperature resistance up to 1000°C. Standard 180° (half-tube) coating and custom coating degrees available.

Key Advantages

High purity (SiO2 > 99.99%)
Working Temperature: 1250℃; Soften Temperature: 1730℃
Excellent thermal stability
Resistant to acids and alkalis
Superior electrical insulation
Transmission: Visible light >93%, UV light >85%

Technical Specifications

Specification	Value
Product Name	3D Infrared Lamp
Voltage (V)	45-480V
Wattage (W)	150-6000W
Quartz Tube (mm)	8-14mm
Shape	U Shaped
Reflector	Clear

Industrial Applications

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, blow molding of PET bottles
Photovoltaic Industry: String soldering, preheating for sputtering processes
Printing Industry: Curing ink on cloth, drying printing products
Food & Chemical Industry: Disinfection, heating food products, removing snow/ice
Glass Industry: Preheating car glass, drying coatings, manufacturing laminated glass
Textiles Industry: Drying coatings, laminating fabrics
Electronic Industry: Coatings on components, component aging

OEM Services

Our technical department provides expert guidance on selecting the right heat lamp for your application and designs custom lamps based on your specifications. We manufacture various sizes and types according to requirements. Custom samples available when drawings are provided.

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for testing and evaluation.

Do you have any MOQ limit?

Low MOQ available - 1 piece for sample checking.

What about the lead time?

15-20 days after receiving your payment.

How does your factory handle quality control?

"Quality is priority." We maintain strict quality control from beginning to end. Our factory is certified with CE, ISO9001, RoHS, and SGS.
