Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube

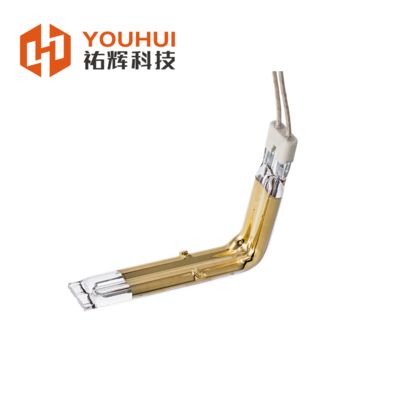

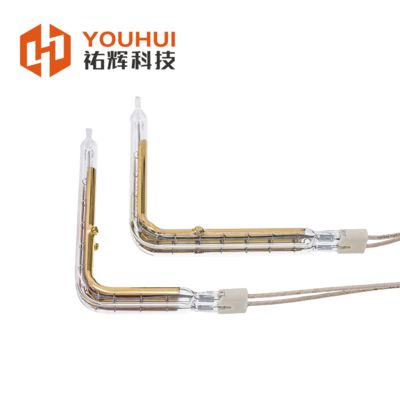

Gold Halogen L-Shaped Heating Element with 1050W power rating at 230V for industrial applications.

Our emitters feature optional gold or ceramic reflector coatings that concentrate heat output for maximum efficiency. The gold coating provides excellent thermal performance, converting nearly all electrical power into usable heat. For applications exceeding 800°C surface temperature, we recommend ceramic coating with temperature resistance up to 1000°C. Custom coating configurations (including 180° half-tube) are available.

• High purity quartz (SiO2 > 99.99%)
• Working Temperature: 1250°C; Soften Temperature: 1730°C
• Exceptional thermal stability
• Resistant to acids and alkalis
• Superior electrical insulation
• High light transmission: >93% visible, >85% UV

• Plastics Processing: IR drying, stretching/shrinking, packaging, PET bottle molding
• Photovoltaic Industry: String soldering, sputtering preheating
• Printing Industry: Ink curing, plate drying, banner production
• Food & Chemical: Disinfection, food heating, herbal medicine processing
• Glass Industry: Preheating, coating drying, laminated glass production
• Textiles: Fabric coating drying, laminating
• Electronics: Component coating, aging processes

Our technical team provides expert guidance in selecting or designing the optimal heating solution for your specific requirements. We manufacture custom sizes and configurations based on your technical specifications, with sample production available for approved designs.

Can I get some samples?
We are happy to offer samples for evaluation and testing.

Do you have any MOQ limit?
Minimum order quantity is just 1 piece for sample verification.

What about the lead time?
Production typically completes within 15-20 days after payment confirmation.

How does your factory handle quality control?
Quality is our top priority with rigorous QC processes at every production stage. Our facility maintains CE, ISO9001, RoHS, and SGS certifications.
