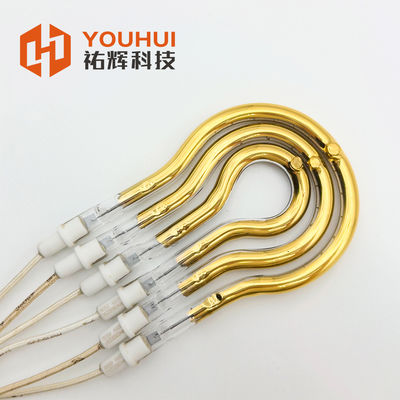

CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications

Name

CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications

Brand Name: UVIR
Model Number: RHG800049
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Brand Name:
UVIR
Power:
200-4000W
Certification:
CE
Voltage:
55-575V
Reflector:
Gold / Ceramic White
Type:
Infrared Heater
Tube Diameter:
8-14mm
IR Diameter:
39-606mm
Material:
Quartz
Place Of Origin:
Guangdong, China
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

CE Certified Ring Infrared Lamp

,

99.99% Pure Quartz Infrared Heater Tube

,

Automotive Application Halogen Heating Lamp

Product Description

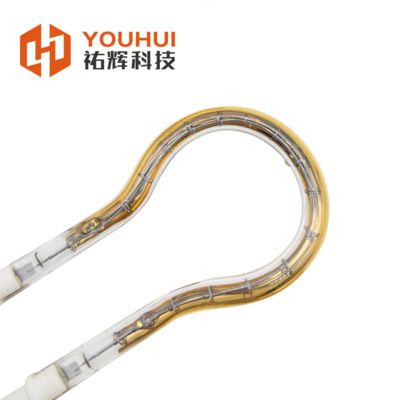

Half Gold-Plated Annular Halogen Infrared Heating Lamp Tube, Shortwave Quartz Tube
Product Specifications
Attribute Value
Brand Name UVIR
Power 200-4000W
Certification CE
Voltage 55-5757V
Reflector Gold / Ceramic White
Type Infrared Heater
Tube diameter 8-14mm
IR diameter 39-606mm
Material Quartz
Place of Origin Guangdong, China

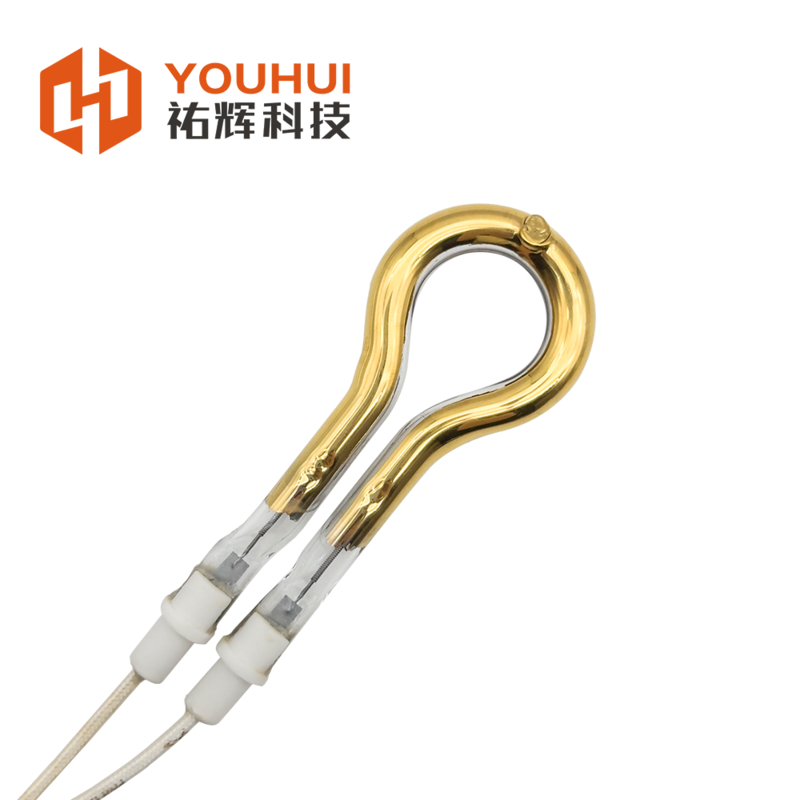

Gold Reflector Ring Shape IR Emitter Lamp for Automotive
UVIR Infrared Lamp Advantages
  • Provides energy savings up to 50% compared to other heating technologies
  • Professional infrared technology delivers precise heating with optimal wavelength
  • Targets heat exactly where needed for maximum efficiency
CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 0 CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 1
Key Features
  • High-quality filament ensures long lifespan
  • High efficiency operation
  • Economical running costs
  • Fast response switching on and off
  • Effectively transmits and focuses heat on materials
  • 99.99% pure quartz glass tube construction
  • Completely transparent to IR radiation
  • Withstands high temperatures and thermal shock
Stock and Standard Short-Wave Ring Lamps
CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 2
Applications
CE Certified 99.99% Pure Quartz Ring Infrared Lamp for Automotive Applications 3
Safety Precautions
  • Operate under these conditions:
    • Relative humidity ≤ 95%
    • No flammable, explosive, corrosive gases or conductive dust
    • No violent impact or vibration
    • Working voltage ≤ 1.1 × rated value with proper grounding
    • Insulation resistance ≥ 1MΩ, dielectric strength: 2KV/1min
  • Properly position and secure heating pipes using appropriate clamps
  • For temperatures >200°C, use high-temperature wire and screw connections rated for 400°C+
  • Handle quartz glass carefully to avoid mechanical damage
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples take 5-7 days, mass production about 30 days.
Q3. Do you have any MOQ limit?
A: Minimum order quantity is typically 2 pieces per model.
Q4. How do you ship the goods?
A: Samples ship via DHL/UPS/FedEx/TNT. Large quantities via air or sea freight.
Q5. How to proceed with an order?
  1. Provide your requirements/application
  2. We provide quotation
  3. Customer confirms samples and places deposit
  4. We arrange production
Q6: How to deal with faulty products?
A: Our products undergo strict quality control. During warranty period, replacements will be sent with next order.
