Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating

Gold Coating Ring Infrared Lamp with 100-7600W Power and 8-14mm Quartz Tube for Efficient Heating

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Voltage:

24-575V

Coating:

Gold

Tube Diameter:

8-14mm

Filament Type:

Tungsten

Power:

100-7600W

Material:

Quartz Tube

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

100-7600W Ring Infrared Lamp

24-575V Quartz Infrared Heater

8-14mm Infrared Heating Lamp

Product Description

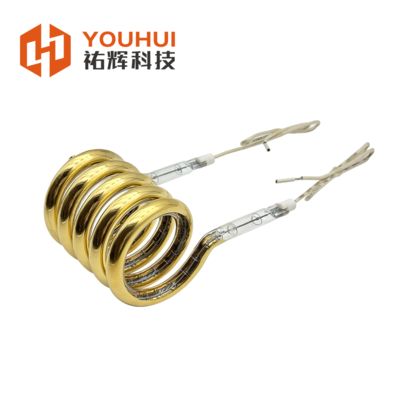

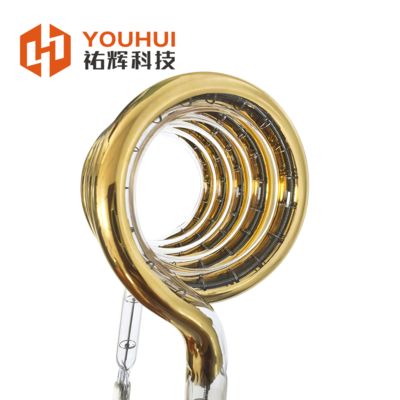

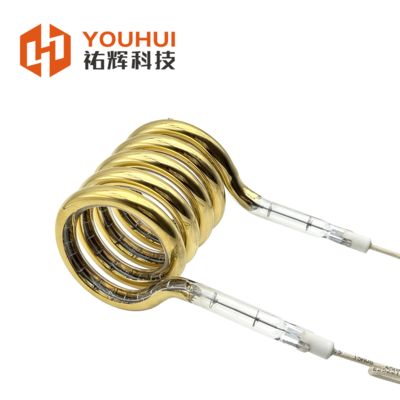

UVIR Gold Coating Quartz Lamp Tube - Single Tube Ring IR Lamp (100-7600W)

Product Specifications

Brand Name	UVIR
Voltage	24-575V
Coating	Gold
Tube Diameter	8-14mm
Filament Type	Tungsten
Power	100-7600W
Material	Quartz Tube

Product Overview

IR lamp quartz circular infrared heater lamp with gold coating single tube heating accessories.

Ring Tube Infrared Lamps Features

Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Available in various tube colors
Tube diameter can be from 8-14 mm
Standard stock items for immediate delivery
Custom and OEM designs available

Technical Details

Product Name	Ring tube infrared lamp
Shape	Ring
Voltage	24-575V
Wattage	100-7600W
Coating	Gold

QUICK CONNECT RING 39 mm
Stock and Standard (Non-Stock) Ring Short-Wave 0 =39 mm Quick Connect Lamps

#	Voltage (V)	Wattage (W)	Diameter (mm)	Model 1	Model 2	Model 3	Model 4
1	115	200	8	RHC800300	RHG800300	RHG800306	RHG800312
2	115	200	10	RHC800301	RHG800301	RHG800307	RHG800313
3	115	450	8	RHC800302	RHG800302	RHG800308	RHG800314
4	220	200	8	RHC800303	RHG800303	RHG800309	RHG800315
5	220	300	8	RHC800304	RHG800304	RHG800310	RHG800316
6	220	450	8	RHC800305	RHG800305	RHG800311	RHG800317

Customized Service

All infrared heater lamps are customized according to your practical requirements, with professional technicians providing one-to-one service
We can customize 1pc IR lamp for your quality testing at the beginning
OEM services available - we can print your logo on infrared heating lamps as required

After-sale Service

Warranty Time of Short wave Infrared heat lamp: 5,000 hours
During warranty period, any non-man-made quality issues will be replaced immediately at no charge

Frequently Asked Questions

What about the lead time?
15 days after receiving your payment.

How does your factory do regarding quality control?
"Quality is priority." UVIR always emphasizes quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

About customized service?
We can provide the right heat solution for you and offer OEM services, including printing your logo on products as required.

About after-sale service?
Any confirmed quality issues will be compensated to our customer.
