24-575V Voltage 39-600mm Outside Diameter 1100-2600℃ Filament Temperature Ring Infrared Lamp Circular Infrared Heater Tube

24-575V Voltage 39-600mm Outside Diameter 1100-2600℃ Filament Temperature Ring Infrared Lamp Circular Infrared Heater Tube

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Voltage(V):

24-575V

Pipe Diameter:

8mm

Main Application:

Automobile, ,Hot-melt，heating

Power:

100-7600W

Type:

RING

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

24-575V Voltage Ring Infrared Lamp

39-600mm Outside Diameter Circular Infrared Heater Tube

1100-2600℃ Filament Temperature Halogen Infrared Heat Lamp

Product Description

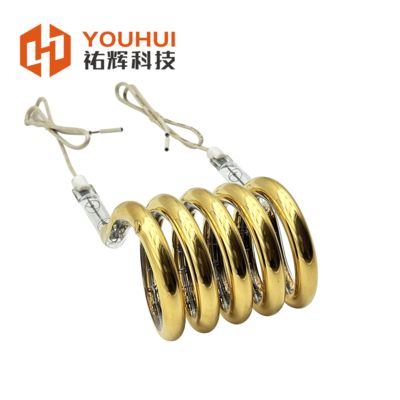

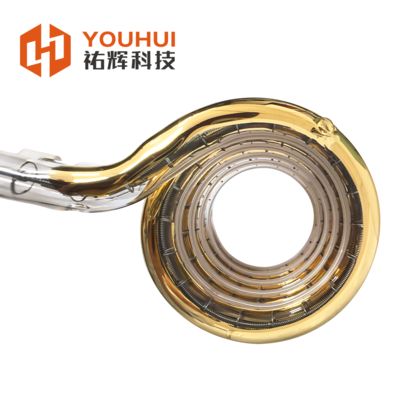

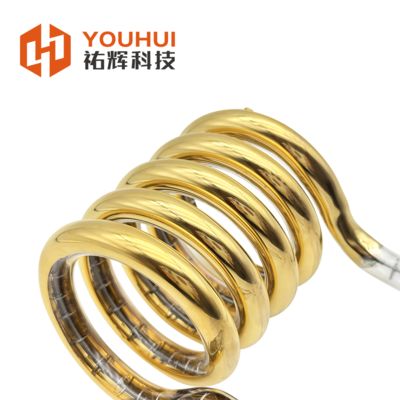

Circular Single Tube Coated Gold Spiral Infrared Heating Tube Halogen Infrared Lamp

Product Specifications

Attribute	infrared lamp
Brand Name	UVIR
Voltage (V)	24-575V
Pipe Diameter	8-14mm
Main Application	Automobile, Hot-melt, Heating
Power	100-7600W
Type	RING

Product Features

No far-infrared coating, spectral radiation matching absorption characteristics, maintaining radiation performance without degeneration
Approximately 30% more energy efficient than standard heating elements
Rapid heating with minimal thermal inertia, high temperature resistance, and excellent corrosion resistance
Clean operation with no pollution, meeting high hygiene standards for household appliances
Convenient design for easy manufacturing and installation
Exceptional thermal stability with minimal expansion coefficient (can withstand rapid temperature changes)

Technical Specifications

Item	Ring Tube IR Lamp
Voltage	24-575V
Outside Diameters	39-600mm
Tube Diameter	8-14mm
Quartz Tube Reflector	Gold / Ceramic White
Filament Temperature	1100-2600℃

Product Variations

115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093
230	1500	8	80	0	RHC800024	RHG800066	RHG800067	RHG800068
230	1850	8	102	90	RHC800025	RHG800025	RHG800025	RHG800025
230	2000	8	154	90	RHC800026	RHG800072	RHG800073	RHG800074
230	2200	8	180	90	RHC800027	RHG800075	RHG800076	RHG800077

Custom configurations available - Contact us for specialized requirements

OEM Services

Our technical team can design customized heat lamps based on your specific requirements. We offer:

Expert consultation for selecting the optimal heat lamp configuration
Custom manufacturing to your exact specifications
Prototype development and sample production
Flexible solutions for voltage, wattage, length, base types, and cables

Frequently Asked Questions

Payment Methods

We accept T/T, Escrow, and Western Union payments.

Shipping Information

Orders are typically shipped within 3 business days.

Sample Availability

Samples are available for testing. Sample costs depend on quantity and product model.

Order Process

We provide quotations within 24 hours of inquiry.

Company Background

UVIR is a professional manufacturer of infrared terrace heaters and heating lamps since 1994.
