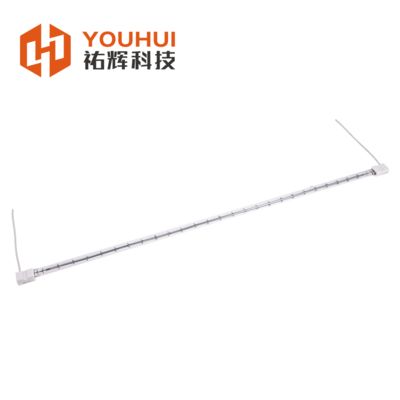

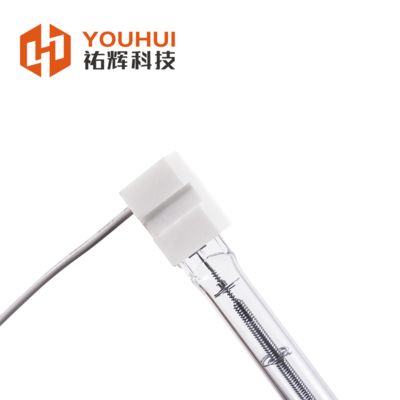

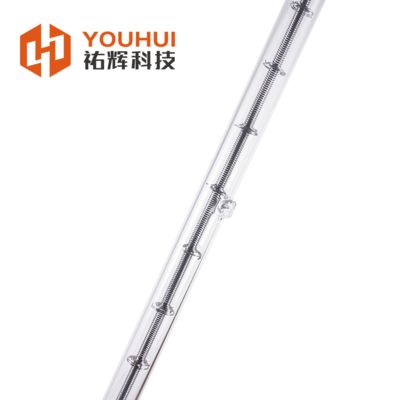

Single Tube Quartz Infrared Lamp with Tungsten Filament and Quartz Glass for Industrial Applications

Single Tube Quartz Infrared Lamp with Tungsten Filament and Quartz Glass for Industrial Applications

Brand Name:	UVIR
Model Number:	12100058
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Tube Material:

Tungsten、quartz Glass

Product Category:

Quartz Infrared Lamps

Tube Diameter:

8-24mm

Filament:

Tungstan

Wavelength:

1-2μm

Power:

200-4000W

Product Name:

Customized R7S Single Tube Frosted Quartz Heating Lamp IR Halogen Heater Lamp For Industrial Applications

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Tungsten Filament Quartz Infrared Lamp

Quartz Glass Infrared Lamp

Industrial Applications Halogen Heater Lamp

Product Description

SK20 Single Tube Quartz Heater Halogen Infrared Lamp 200-4000W Heating Element

Product Overview

This industrial-grade R7S halogen heating lamp features a white reflector that enhances heating capacity and ensures even heat distribution. The tungsten filament provides superior heat resistance, enabling high temperatures required for industrial processes. With a power range of 200-4000W and voltage range of 55-575V, it accommodates various heating requirements and power systems.

Key Features

High-efficiency quartz infrared halogen lamp
Tungsten filament for superior heat resistance
White reflector for enhanced heating capacity
Wide power range (200-4000W) for versatile applications
Fast response time (1 second)
Customizable heating length (50-1500mm)
Multiple reflector options available

Product Specifications

Attribute	Value
Tube Material	Tungsten, Quartz Glass
Product Category	Quartz Infrared Lamps
Tube Diameter	8-24mm
Filament	Tungsten
Wavelength	1-2μm
Power	200-4000W
Lamp Reflector	White, gold

Technical Parameters

Parameter	Value
Product Name	SK20 single tube quartz heater halogen infrared lamp
Lifetime	>5000 hours
Voltage	55-575V
Response Time	1s
Heating Length	50-1500mm
OEM/ODM	Custom voltage, wattage, length, base, and cables available

Industrial Applications

This versatile heating solution is ideal for various industrial processes including food processing, automotive manufacturing, printing operations, paint drying, coating curing, and drying ovens. The customizable design makes it suitable for any application requiring precise, high-intensity radiant heat.

Frequently Asked Questions

What is the brand name of this product?

The brand name is UVIR.

Does this product have any certifications?

Yes, this product is CE certified.

What is the minimum order quantity?

Minimum order quantity is 10 units.

What is the delivery time?

Standard delivery time is 15-20 work days.

Support & Services

Our technical support team provides assistance with installation, operation, and maintenance. We offer repair services, replacement parts, and custom solutions tailored to your specific heating requirements.
