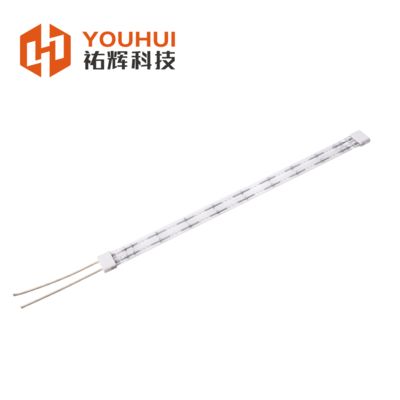

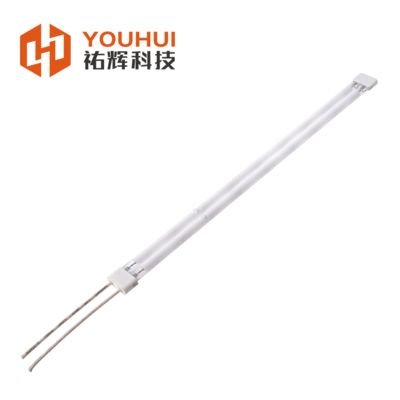

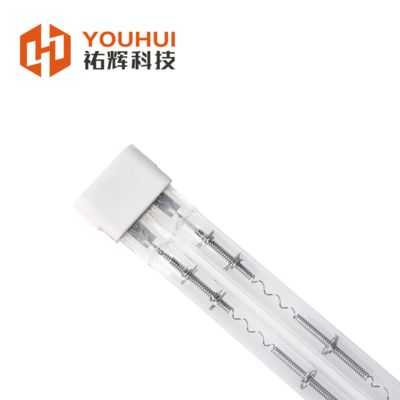

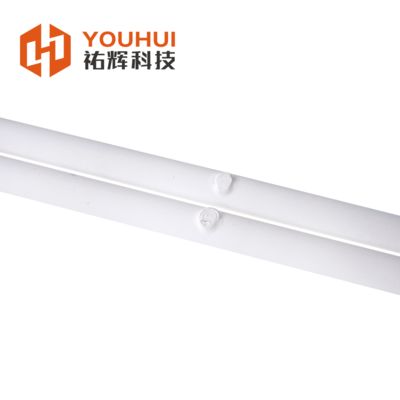

Single Tube Quartz Infrared Lamp with 5000h Working Time 50-1500mm Heating Length and 1s Response Time

Single Tube Quartz Infrared Lamp with 5000h Working Time 50-1500mm Heating Length and 1s Response Time

Brand Name:	UVIR
Model Number:	SHC100733
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Infrared Heater, Painting Drying

Working Time:

5000h

Heating Length:

50-1500mm

Reflector:

White

Tube Material:

Tungsten、quartz Glass

Reponse Time:

Wave Length:

Short Wave

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

5000h Working Time Quartz Infrared Lamp

50-1500mm Heating Length Tungsten Infrared Tube

1s Response Time Short Wave Heating Lamp

Product Description

Single Tube Quartz Short Wave Heating Lamp Tungsten Infrared Tube

Product Specifications

Attribute	Value
Application	Infrared heater, Painting drying
Working Time	5000h
Heating length	50-1500mm
Reflector	White
Tube material	Tungsten, quartz glass
Response time	1s
Wave Length	Short wave
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available

Key Features

Infrared heater matched to materials for up to 50% energy savings
Consistent and reliable quality
24-hour customer support
CE, ISO9001, RoHS, SGS certified
Low minimum order quantity (1pc samples available)

Technical Details

Specification	Details
Filament	Tungsten
Lamp reflector	White Reflector
Voltage	55-575V (customizable)
Wattage	200-4000W (customizable)
Wave Length	Short wave
Tube diameter	8-24mm
Life Time	>5000hrs

Design Characteristics

Power range: 200 to 5,000 W
Voltage range: 24 to 575 V
Short, Medium and Long-Wave IR designs available
Filament temperatures: 1,100°C to 2,600°C
Heat lengths: 50 to 1,500 mm
Reflective layers: gold, white
Fast response time (1 second for Short-Wave)
Tube diameters: 8 to 25 mm
Standard stock items for immediate delivery
Custom and OEM designs available

Infrared Lamps for Industrial Applications

Frequently Asked Questions

Are you a factory or trading company?

We are a professional factory.

Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We welcome all clients to visit us.

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1pc for sample checking is available.

What about the lead time?

Sample needs 3-7 work days, mass production time needs 10-20 work days for order quantity more than 1000 PCS.

What certificates you have? What is the life time of the IR lamps?

CE, ISO9001, RoHS, SGS authentication already passed, each lamp with life more than 5000-20000hrs.

Do you offer guarantee for the products?

Yes, we will confirm the guarantee period in formal quotation together with data sheet.
