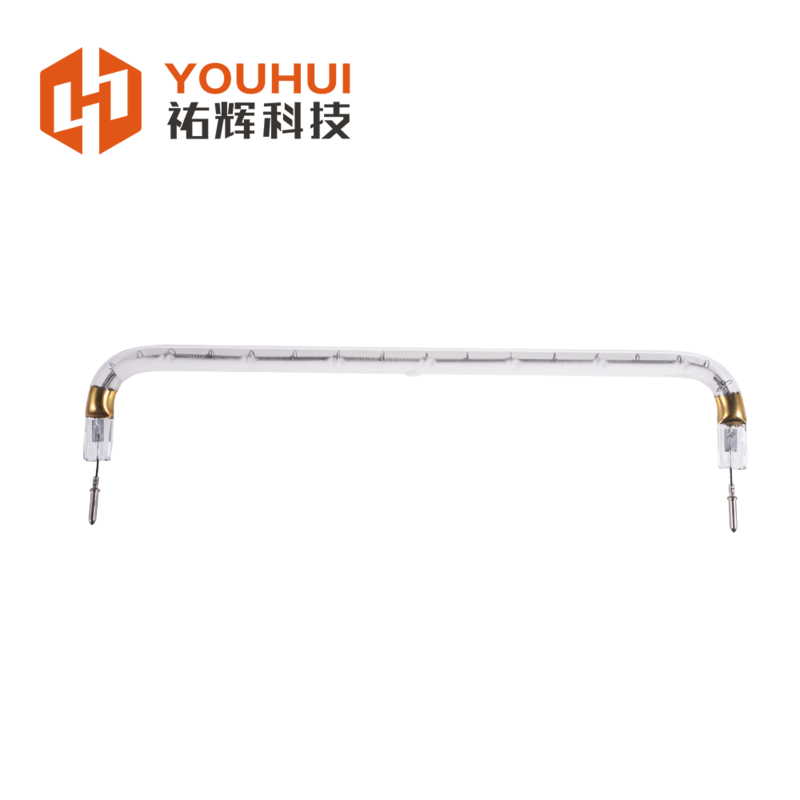

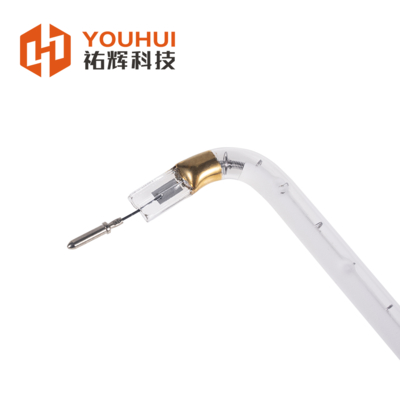

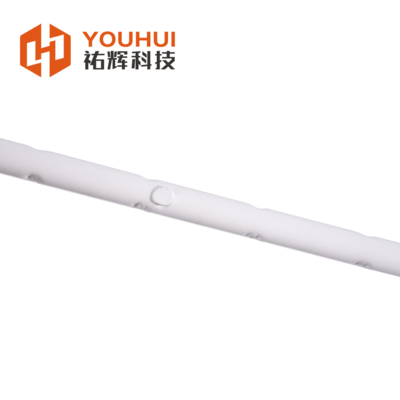

3D Contoured Infrared Lamp 150-6000W 45-480V Quartz Tube

3D Contoured Infrared Lamp 150-6000W 45-480V Quartz Tube

Brand Name:	UVIR
Model Number:	THW300002
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name::

3D Contoured Infrared Lamp

Voltage::

45-480V

Lifespan (hours)::

5000-20000h

Color::

White

Material::

Glass, Tungsten (filament) Quartz (Tube)

Power::

150-6000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

U-type infrared heating tube

shortwave heating element with reflector

infrared heating tube with reflector

Product Description

U-Type Shortwave Infrared Heating Element Tube with Reflector

Product Specifications

Product Name	3D Contoured Infrared Lamp
Voltage	45-480V
Lifespan	5000-20000h
Color	White
Material	Glass, Tungsten (filament) Quartz (Tube)
Power	150-6000W

400V 3150W L Type Shortwave Infrared Heating Parts with White Reflector Element Tube

Infrared radiators offer superior performance compared to traditional hot air, ceramic, gas, and metal radiators. They provide direct heating without contact or intermediate conversion medium, delivering rapid energy transfer that precisely meets heating requirements while saving up to 50% energy.

Technical Parameters

UVIR No.	SHW300020
Voltage (V)	45-480V
Wattage (W)	150-6000W
Material	Quartz Tube
Light Source	Tungsten filament
Reflector	White

Available Configurations

115	410	10	SHG300169	SHW300001	SHC300002	280770
115	510	10	SHG300049	SHW300002	SHC300003	284343
115	520	10	SHG300043	SHW300003	SHC300004	282094
115	600	10	SHG300050	SHW300004	SHC300005	282016
115	710	10	SHG300164	SHW300005	SHC300006	282014
115	1100	10	SHG300165	SHW300006	SHC300007	283932
115	1100	11x23	THG300039	THW300001	THC100001	282002
115	1320	10	SHG300037	SHW300007	SHC300008	280773

Contact us for custom configurations. Our professional team can provide technical specifications and drawings to meet your exact requirements.

Applications

After-Sales Support

Package tracking
Technical support
24-hour response time
Discounts for repeat orders
Replacements for quality issues
Strict customer confidentiality

Frequently Asked Questions

What information should I provide when inquiring?

Please provide: lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length (standard is 300mm), coating preference (gold or ceramic), quantity, and any available drawings or pictures.

Can you provide samples for testing?

Yes, we can provide samples according to your specifications.

Payment Methods

We accept T/T, Escrow, and Western Union payments.

Order Process

We typically provide quotations within 24 hours of inquiry. Sample production takes 5-7 days.
