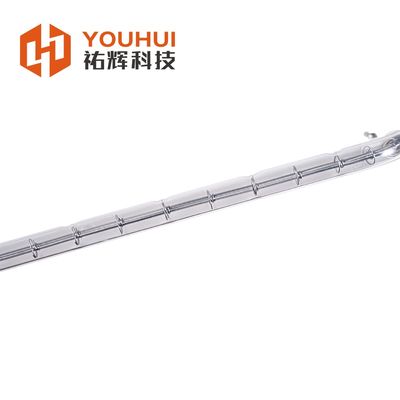

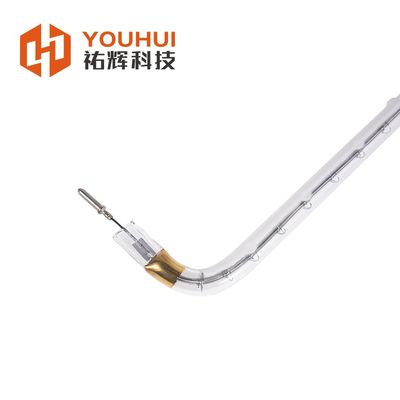

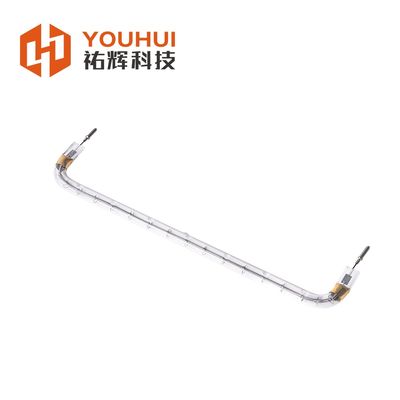

U-Type Halogen Infrared Heating Lamp 55-575V 5000h

U-Type Halogen Infrared Heating Lamp 55-575V 5000h

Brand Name:	UVIR
Model Number:	SHW300020
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name:

3d Halogen Heating Tube Emitter Lamp

Shape:

U Type

Voltage:

55-575V

Material:

Glass

Color:

Transparent

Tube Material:

High Quality Tube

Working Lifetime(Hour):

5000h

Specification:

Short Wave Infrared Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

White Coating Quartz Heater Lamp Tube

U-type Quartz Heater Lamp tube

Halogen Infrared Quartz Heating Lamp

Product Description

White Coating U-type Quartz Heater Lamp Tube Halogen Infrared Quartz Heating Lamp

Product Specifications

Attribute	Value
Name	3d halogen heating tube emitter lamp
Shape	U type
Voltage	55-575V
Material	Glass
Color	Transparent
Tube Material	High quality tube
Working Lifetime	5000h
Specification	Short wave infrared lamp

Product Description

UVIR 14-year Manufacturer infrared heating lamp. Contact us for custom printing options.

Main Design Characteristics

Manufactured from foreign imported high-end quartz tube
Long service life: 5000 hours for mid-temp and low-temp models
High efficiency with more than 85% heat efficiency at full power
Customizable wavelength, dimensions, filaments to meet your requirements
Energy saving design with lower consumption and better heating results

Available Parameters

Voltage (V)	Wattage (W)	Quartz Tube (mm)	Shape	Reflector	UVIR NO.	FRIMO NO.
115	510	10	U	Gold	SHG300049	284343
230	800	10	U	Gold	SHG300052	293640
115	710	10	U	Gold	SHG300054	282014
230	1100	10	U	Gold	SHG300053	283932
230	1330	10	U	Gold	SHG300166	294058

If these parameters don't meet your requirements, please contact us. Our professional team can provide customized solutions and technical drawings.

Our Services & Strength

Expert sales teams for accurate communication
Professional technical teams for product development
Technical production teams for assembly line production
Quality inspection teams for rigorous testing
Experienced after-sales teams for customer support

Safety Precautions

Install in environments free from flammable, explosive, corrosive gases and conductive dust
Properly position and fix the heating pipe using appropriate metal or ceramic pipe clamps
Handle quartz glass carefully as it's brittle; take protective measures to avoid mechanical damage

Frequently Asked Questions

How long shall I wait for quotation and samples?

We typically provide quotes within 24 hours. Standard samples take 5-7 days, while custom designs may require more time.

What are your delivery terms?

We accept FOB, CIF, EXW and other terms - choose the most convenient option for you.

What is the lead time for mass production?

MOQ production typically takes 15-20 days. We recommend inquiring at least two months before your required delivery date.

Do you offer product guarantees?

Yes - 2 years for heaters and 5000-8000 hours for heating lamps. Custom products have guarantee periods confirmed in the quotation.

Can I add my logo to the product?

Yes, with MOQ requirements. We offer discounts for using our Goldisgood brand.

Can you assist with design?

Our professional team can help realize your ideas. Provide your logo, text, and layout preferences and we'll create finished files for approval.
