U Type Short Wave Infrared Heating Tube 150-6000W Gold-Plated

U Type Short Wave Infrared Heating Tube 150-6000W Gold-Plated

Brand Name:	UVIR
Model Number:	SHG300948
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Name::

3d Halogen Heating Tube Emitter Lamp

Specification::

Short Wave Infrared Lamp

Voltage::

45-480V

Customized::

Yes,according To Your Requirement

Filament Temp.::

1600-2600

Color::

Transparent

Power：:

150-6000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Infrared Heating Heater Tube Lamp

U Type Heater Tube Lamp

Gold-plated Infrared Heating Element Tube

Product Description

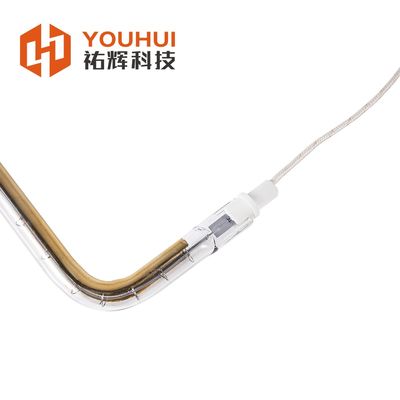

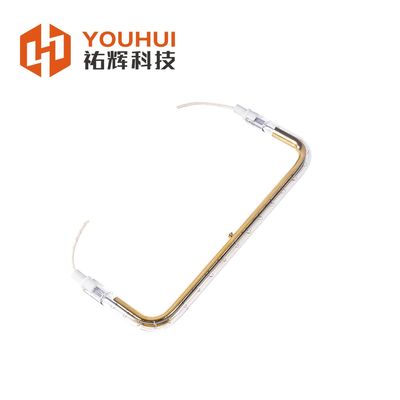

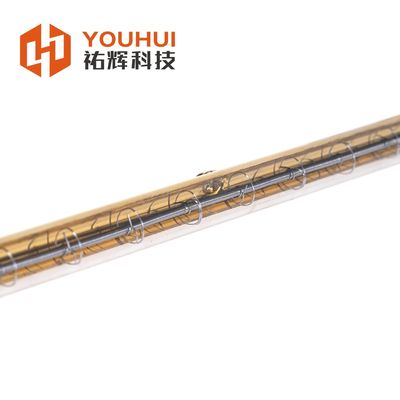

U Type Single Infrared Heating Heater Tube Lamp Gold-Plated Halogen Quartz Lamp

Product Specifications

Attribute	Value
Name	3d halogen heating tube emitter lamp
Specification	Short wave infrared lamp
Voltage	45-480V
Customized	Yes, according to your requirement
Filament temperature	1600-2600
Color	Transparent
Power	150-6000W

Key Advantages

Can switch on and off frequently
1~2 seconds fast response time to full power heating
Output power adjustable via voltage regulator (0V~rated voltage)
Precise (±1℃) temperature control with SCR regulator
Compact design with flexible horizontal/vertical installation
Suitable for industrial applications up to 1000℃
Gold reflector (90% reflective) and Nano-ceramic reflector (70% reflective) options
Customizable IR wavelengths for different applications
High power density output up to 200KW/M²
5000 hours average working life guarantee

Product Description

Heatelement Twin-Tube infrared lamps are manufactured from high-quality fused quartz tubes with gold reflector for maximum efficiency. The unique design provides higher radiation density, improved mechanical stability, and better focus. Available as short-wave, medium-wave and fast response medium-wave infrared emitters to match specific material heating requirements.

Product Name	Infrared Lamp
Type	3D infrared lamp
Application	Heating applications
Light source	Tungsten filament
Material	Quartz Tube
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning position available

Available Parameters

115	410	10	SHG300169	SHW300001	SHC300002	280770
115	510	10	SHG300049	SHW300002	SHC300003	284343
115	520	10	SHG300043	SHW300003	SHC300004	282094
115	600	10	SHG300050	SHW300004	SHC300005	282016
115	710	10	SHG300164	SHW300005	SHC300006	282014
115	1100	10	SHG300165	SHW300006	SHC300007	283932
115	1100	11x23	THG300039	THW300001	THC100001	282002
115	1320	10	SHG300037	SHW300007	SHC300008	280773

Contact us for custom parameters. Our professional team can provide technical expertise and drawings for your specific requirements.

Industrial Applications

Plastics Processing: IR drying, stretching/shrinking, blow molding
Photovoltaic Industry: String soldering, sputtering preheating
Printing Industry: Ink curing, drying for banners and plates
Food & Chemical: Disinfection, food heating, herbal medicine processing
Glass Industry: Preheating, coating drying, laminated glass
Textiles: Fabric coating drying and laminating
Electronics: Component coating and aging processes

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples take 5-7 days, mass production about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is typically 2 pieces per model.

Q4. How do you ship the goods?

A: Samples via DHL/UPS/FedEx/TNT; bulk orders via air or sea freight.

Q5. How to proceed an order?

A: 1) Share requirements 2) Receive quote 3) Approve samples 4) Place deposit 5) Production begins.

Q6. How to deal with faulty products?

A: All products undergo strict quality control. During warranty, replacements are included in next order.
