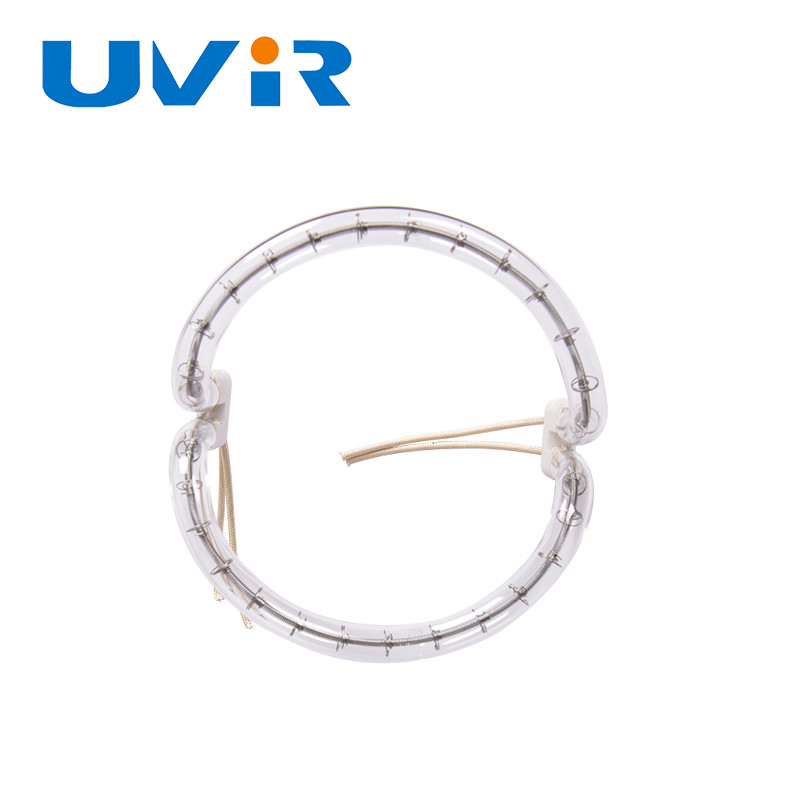

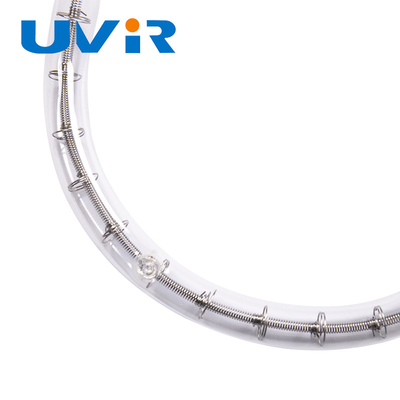

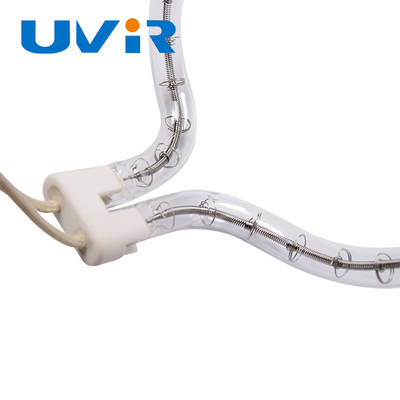

Clear Quartz Infrared Heating Tube for Plastic Welding 1800-2200°C

Name: Clear Quartz Infrared Heating Tube for Plastic Welding 1800-2200°C
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: 3d type
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	3d type
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Material:

Quartz Tube

Filament Temp:

1800° C-2200° C

Color:

Clear

Peak Wavelength:

1.2 - 1.4 μm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Halogen Quartz Tube for Plastic Welding

Clear Quartz Infrared Heating Element Tube

3D Type Infrared Heating Element Tube

Product Description

Infrared Heating Element Tube Clear Quartz 3D Type Halogen Quartz Tube for Plastic Welding

Product Specifications

Attribute	Value
Brand Name	UVIR
Material	Quartz Tube
Filament Temperature	1800° C-2200° C
Color	Clear
Peak Wavelength	1.2 - 1.4 μm

IR Lamp Technical Details

Feature	Specification
Product Name	3D Infrared Lamp
Voltage (V)	45-480V
Wattage (W)	150-6000W
Material	Quartz Tube
Light Source	Tungsten Filament
Reflector	Clear

Infrared Heating Technology Advantages

Fast response time (1-2 seconds to full power)
Adjustable output power via voltage regulator
Precise temperature control (±1℃)
Flexible installation (horizontal or vertical)
High working temperature (up to 1000℃)
Available with gold reflector (90% reflective) or ceramic white reflector (70% reflective)
Multiple wavelength options for different applications

Standard Contour Short-Wave IR Lamps for 3D Applications

Applications

Plastic forming and thermoforming
Bottle blowing
Paint drying
Food processing
PET preform heating
Print ink fusing
Paper mill drying processes
Semiconductor manufacturing

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." UVIR always attaches importance to QC from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

About customized service?

We can provide right heat solutions and offer OEM services, including printing your logo on products as required.

Custom Solutions Available

If our standard parameters don't meet your requirements, please contact us. Our professional team can provide customized solutions and technical drawings.
