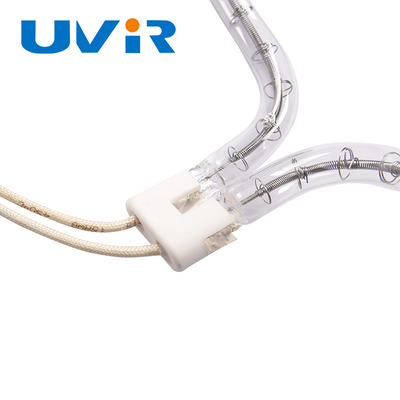

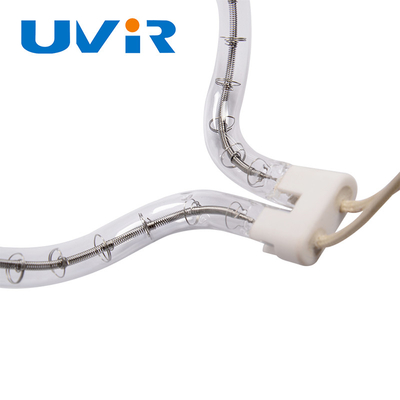

3D Clear Quartz Infrared Heating Element Tube 150-6000W

3D Clear Quartz Infrared Heating Element Tube 150-6000W

Brand Name:	UVIR
Model Number:	RHC800111
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Voltage(V):

45-480V,Customized

Lighting Solutions Service:

Lighting And Circuitry Design

Power:

150-6000W,Customized

Quartz Tube:

11*23mm

Shape:

Coating:

Clear

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

3D Shape Infrared Heating Element Tube

Infrared Heating Clear Quartz Halogen Tube

Heating Equipment Quartz Halogen Tube

Product Description

3D Shape Infrared Heating Element Tube Clear Quartz Halogen Tube For Heating Equipment Components

Product Specifications

Attribute	Value
Voltage (V)	45-480V, Customized
Lighting solutions service	Lighting and circuitry design
Power	150-6000W, Customized
Quartz Tube	11*23mm
Shape	3D
Coating	Clear

Product Description

3D Shape Infrared Heating Element Tube clear quartz halogen tube for Heating equipment components

Why Choose Our Reflector Coating

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating concentrates heat, increasing heat output effectiveness. These coated emitters are highly economical, converting nearly all consumed electrical power into heat. For emitters with high watt density or surface temperature above 800°C, we recommend ceramic coating as reflector due to its temperature resistance up to 1000°C. We offer standard 180° (half-tube) coating as well as custom coating degrees.

Key Advantages

High purity (SiO₂ > 99.99%)
Working Temperature: 1250℃; Soften Temperature: 1730℃
Excellent thermal stability
Acid-proof and alkali-proof
Superior electrical insulation
Transmission: Visible light >93%, UV light >85%

Technical Specifications

Parameter	Value
Product name	3D shape infrared lamp
Voltage (V)	45-480V, Customized
Wattage (W)	150-6000W, Customized
Quartz Tube (mm)	4-19mm
Shape	3D
Reflector	Clear

Note: If the parameters don't meet your requirements, please contact us. Our professional team can provide technical knowledge and custom drawings.

Applications

Infrared Heating For Plastics Processing
Infrared Heating For Photovoltaic Industry
Infrared Heating For Printing Industry
Infrared Heating For Food And Chemical Industry
Infrared Heating For Glass Industry
Infrared Heating For Textiles Industry
Infrared Heating For Electronic Industry

OEM Services

We assist customers in selecting the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical specifications. We produce various sizes and types of heat lamps according to customer requirements. Custom samples can be provided based on your drawings.

Frequently Asked Questions

1. Can I get some samples?
We are happy to offer samples for testing and evaluation.

2. Do you have any MOQ limit?
Low MOQ, 1 piece for sample checking is available.

3. What about the lead time?
15-20 days after receiving your payment.

4. How does your factory handle quality control?
"Quality is priority." We maintain strict quality control from beginning to end. Our factory is certified with CE, ISO9001, RoHS, and SGS.
