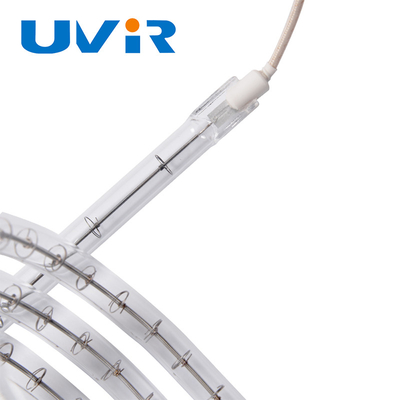

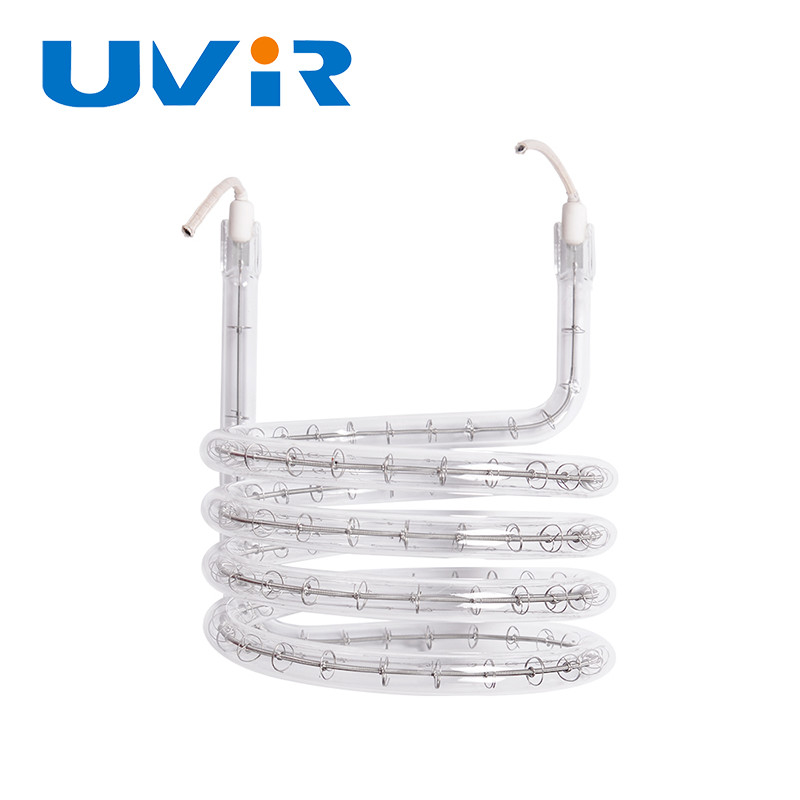

3D Clear Quartz Halogen Infrared Heating Tube 150-6000W

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours):

10000-20000h

Brand Name:

UVIR Infrared Lamp

Specification:

8-14mm

Filament Temp:

1100-2600C

Response Time:

1-2s

Power:

150-6000W

Voltage:

45-480V

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Product Description

3D Single Tube Clear Quartz Glass Tube Halogen Infrared Heating Element Tube

Product Specifications

Key Advantages

Premium materials: Manufactured from imported high-end quartz tube
Extended lifespan: 5000 hours for mid-temp and low-temp models
High efficiency: Over 85% heat efficiency at full power
Energy-saving design: Gold or non-organic reflective layer concentrates radiation energy
Clean heating: No surface corrosion or material dropping
Precise control: Adjustable heating time as needed
Environmentally friendly: No contamination risk to environment or target objects
Customizable: Wavelength, dimensions, and filaments can be adjusted
Energy efficient: Lower consumption with superior heating results

Technical Details

Available Parameters

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727
