Gold Coated 3D Infrared Heating Tube 200-6000W Customizable

Gold Coated 3D Infrared Heating Tube 200-6000W Customizable

Brand Name:	UVIR
Model Number:	SHG306044
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Hight Efficiency:

More Than 85% Heat Efficiency Of Full Power

Power:

209-6000W

Material:

Tungsten (filament) Quartz (Tube), Quartz Tube

Light Source:

Tungsten Filament

Voltage:

48-575V

Lifespan (hours):

5000-20000h

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Customizable Wavelength Infrared Heating Element Tube

Gold Coating Infrared Heating Element Tube

Product Description

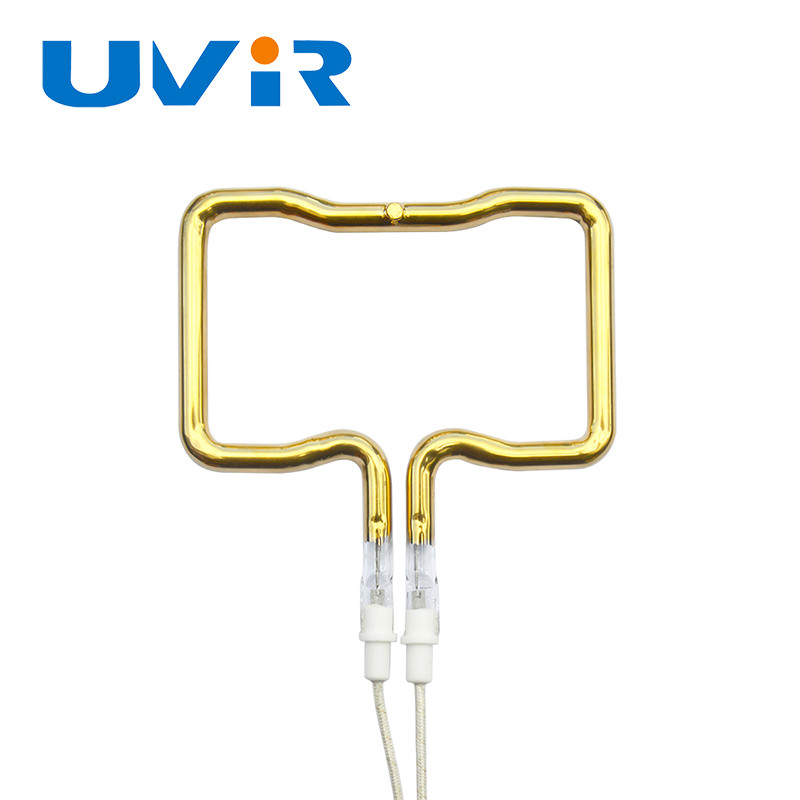

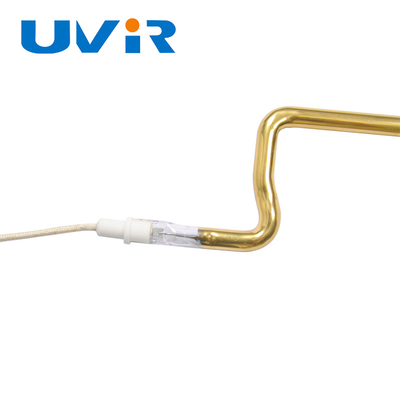

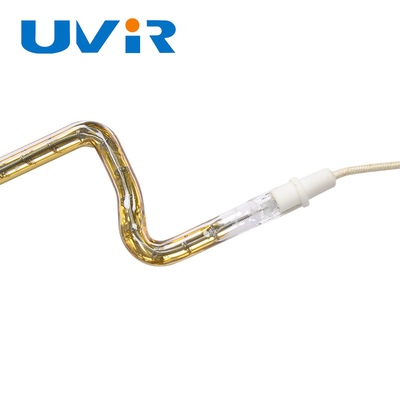

3D Single Tube Gold Coating Infrared Heating Element Tube

Customizable Wavelength and Dimensions

Product Specifications

Attribute	Value
High efficiency	More than 85% heat efficiency of full power
Power	209-6000W
Material	Tungsten (filament) Quartz (Tube)
Light source	Tungsten filament
Voltage	48-575V
Lifespan (hours)	5000-20000h
Coating	Gold

3D Contoured Infrared Lamp Advantages

Premium materials: Manufactured from imported high-end quartz tube
Extended lifespan: 5000 hours for mid-temp and low-temp models
High efficiency: More than 85% heat efficiency at full power
Energy-saving reflective layer: Gold coating concentrates radiation energy to heating object
Clean heating: No surface corrosion or material dropping
Precise temperature control: Adjustable heating time as needed
Environmentally friendly: No contamination risk to environment or target objects
Custom solutions: Adjustable wavelength, dimensions, filaments and other parameters
Energy efficient: Lower consumption, compact footprint, superior heating results

Product Parameters

UVIR No.	SHG306044
Type	3D
Voltage (V)	48-575
Wattage (W)	200-6000
Quartz Tube (mm)	8-14
Shape	3D
Reflector	Gold

Technical Specifications Table

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

If the parameter is not suitable for you, please contact us. Our professional team will provide technical knowledge and drawings for your specific requirements.

Applications

Heating systems
Plastic forming and thermoforming
Bottle blowing processes
Paint and coating drying
Food catering and processing
PET preform pre-heating
Printing ink fusing
Paper mill drying processes
Semiconductor manufacturing (silicon wafer processing)
Various industrial drying applications

OEM Services

We specialize in manufacturing and wholesale of:

Ultraviolet lamps and infrared lamps
UV germicidal lamps and xenon lamps
Special light sources and peripheral accessories
Lamp stands and transformers

Our technical team can:

Recommend optimal heat lamp solutions for specific applications
Design custom lamps based on your technical specifications
Produce various sizes and types according to requirements
Create samples based on your drawings

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional manufacturing facility.

2. Where is your factory located? How can I visit?

Our factory is located in Jiangmen City, Guangdong Province, China. Visitors can fly to Guangzhou Baiyun International Airport. We welcome all domestic and international clients.

3. Can I get samples?

Yes, we provide samples for evaluation and testing.

4. What is your minimum order quantity?

Low MOQ available - 2 pieces for sample evaluation.

5. What is your production lead time?

15 days after receiving payment.

6. How do you ensure quality control?

Quality is our top priority. Our quality control process covers every production stage. Our factory is certified with CE, ISO9001, RoHS, and SGS standards.

7. Do you offer customization services?

Yes, we provide customized heating solutions and OEM services, including logo printing as required.

8. What about after-sales service?

Any confirmed quality issues will be properly compensated.
