UVIR Gold Coated Quartz Infrared Heating Lamp Tube 100-7600W

UVIR Gold Coated Quartz Infrared Heating Lamp Tube 100-7600W

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Warranty(Year):

1-Year

Lifespan (hours):

5000-10000h

Wattage:

100-7600W

Voltage:

24-575V

Color:

GOLD

Tube Diameter:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Circular Infrared Lamp Tube

gold coating Infrared Lamp Tube

Quartz Glass Heating Lamp Tube

Product Description

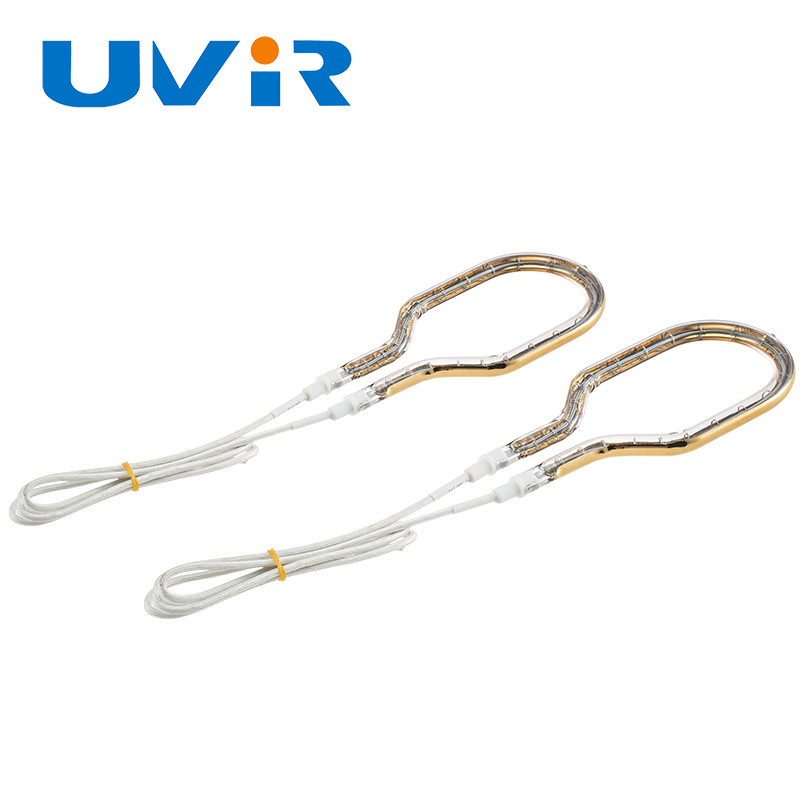

Quartz Glass Heating Lamp Tube Single Tube Gold Coating Circular Infrared Lamp Tube

Product Specifications

Brand Name	UVIR
Warranty	1-Year
Lifespan	5000-10000 hours
Wattage	100-7600W
Voltage	24-575V
Color	GOLD
Tube diameter	8-14mm

Key Advantages

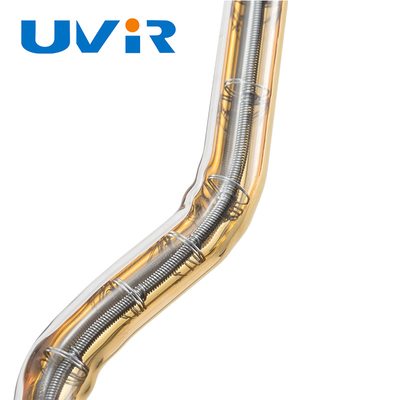

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament with no fraying
Optimized power output for maximum longevity

Quartz Glass Tube

Premium high-temperature quartz glass construction
Extended service life exceeding 5000 hours
Non-toxic with no unpleasant odors, eliminating contamination risks

Detailed Specifications

Pipe diameter	8-14mm
Diameter	39-606mm
Voltage	24-575V
Power	100-7600W
Wavelength	Short wave, medium wave, long wave
Coating	Gold/White/Clear
Shape	Ring, oval, omega, custom designs available

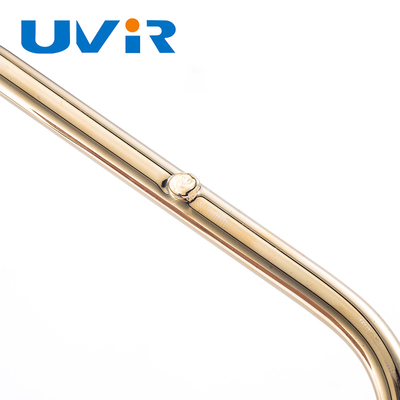

Advanced Coating Technology

The semi-plated white coating utilizes special quartz powder technology to reflect over 90% of infrared heat in a single direction, significantly reducing energy loss.

Industrial Applications

Industry	Applications	Recommended Lamp Type
Plastics	Bottle blowing, thermoforming, welding, serigraphy, strapping	Half white reflector infrared lamp
Paper	Drying, copying, offset printing, ink jet, serigraphy	Clear short wave heat lamp or half white heat lamp
Food	Food catering and processing	Ruby heat lamp round halogen oven lamp
Wood & Composites	Drying, curing, powder coating	White reflector or gold reflector infrared heat lamp
Shoes & Fabrics	Drying, curing	White reflector/gold reflector/clear/ruby
Metal	Strapping, coil coating, powder coating	Gold reflector heat lamp or twin tube IR lamp
Paint	Automobile repair shops, powder coating	Ruby jacked heat lamp or reflector lamp
Animal Care	Breeding, veterinary clinics, zoos, pet shops	Ruby IR lamp

Custom Solutions Available

If our standard parameters don't meet your requirements, our professional team can provide customized solutions including technical drawings and specifications.

Safety Precautions

Install only in environments free from flammable, explosive, corrosive gases and conductive dust
Properly position and secure the heating pipe using provided metal or ceramic clamps
Handle quartz glass components carefully as they are brittle - implement protective measures to prevent mechanical damage

Frequently Asked Questions

Can I request a sample order?

Yes, we welcome sample orders for quality testing. Mixed samples are acceptable.

What is the typical lead time?

Samples require 5-7 days, while mass production typically takes about 30 days.

Is there a minimum order quantity?

Our standard MOQ is 2 pieces per model.

What shipping methods do you use?

Samples ship via DHL, UPS, FedEx or TNT. Large quantities ship by air or sea freight.

How do I place an order?

1. Share your requirements
2. Receive our quotation
3. Confirm samples and place deposit
4. We arrange production

What is your quality guarantee?

All products undergo strict quality control. During the warranty period, we replace faulty items with your next order.
