55-575V Gold Reflector Ring Infrared Lamps 100-6000W

55-575V Gold Reflector Ring Infrared Lamps 100-6000W

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Input Voltage(V)::

55-575V

Lighting Solutions Service::

Lighting And Circuitry Design

Material::

Tungsten (filament), Quartz (tube)

Item::

Ring Tube IR Lamp

Ring Diameter::

39-606mm

Reflector::

Gold/white/Clear

Power:

100-6000W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Clear Quartz Tube Shortwave Infrared Lamps

55-575V Shortwave Infrared Lamps

Gold Reflector Shortwave Infrared Lamps

Product Description

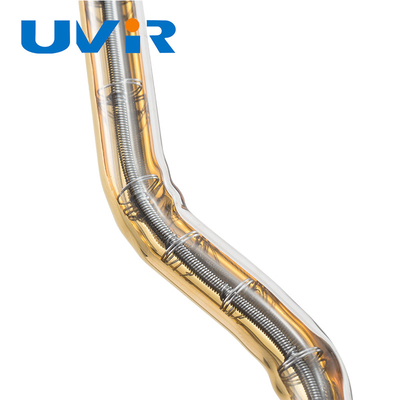

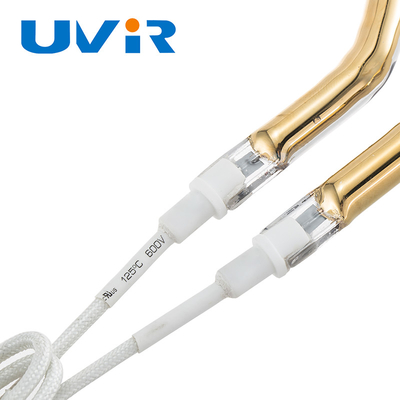

55-575V Input Voltage Clear Quartz Tube Shortwave Infrared Lamps with Gold Reflector

Product Specifications

Attribute	Value
Input Voltage(V):	55-575V
Lighting solutions service:	Lighting and circuitry design
Material:	Tungsten (filament), Quartz (tube)
Item:	Ring tube IR Lamp
Ring Diameter:	39-606mm
Reflector:	Gold/white/Clear
Power	100-6000W

Benefits of Infrared Heat Lamps

Infrared heaters matched to the materials being heated can provide energy savings of up to 50% over other technologies. Our professional infrared technology delivers precise heating exactly where needed, with the optimum wavelength for your application.

Technical Parameters

Voltage: 55-575V
Outside diameters: 39-606mm
Tube diameter: 8-14mm
Filament type: Tungsten / Carbon
Lamp tube material: Quartz tube
Reflector options: Gold / Ceramic white / Clear
Filament Temperature: 1100-2600 ℃
Response time: 1-2s
OEM/ODM available with various voltage, wattage, length, base, and cable options

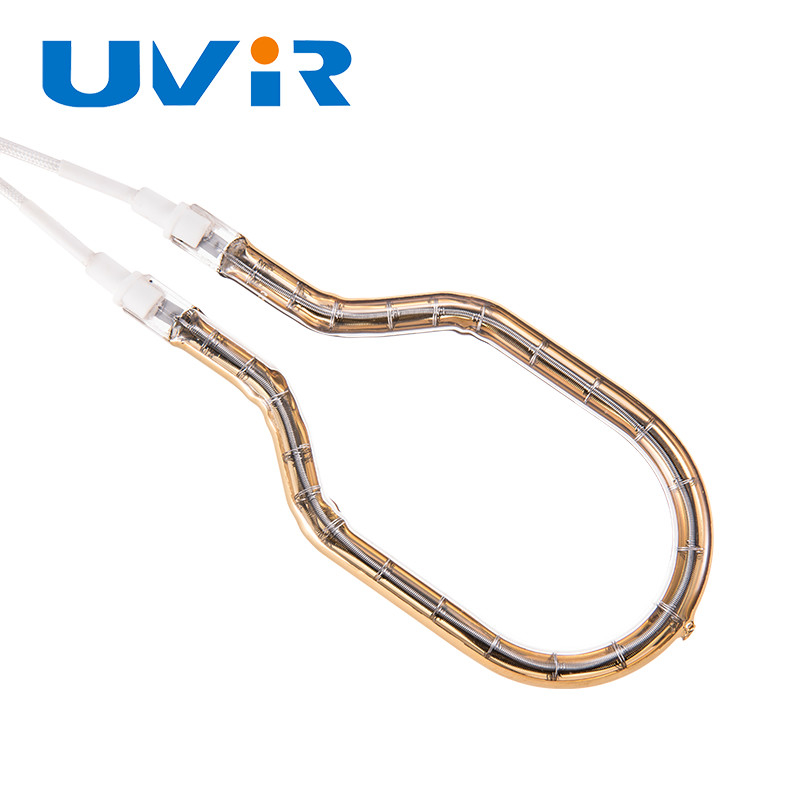

Ring Tube IR Lamps - Special Designs for Circular 2,3-D Surfaces

Ring diameter from 39mm up to 600mm
Voltage range from 24V to 575V
Available in Short, Medium and Long-Wave IR designs
Multiple tube color options
Tube diameter options from 8-14mm (selected based on heater diameter and voltage/wattage requirements)
Standard stock items available for immediate delivery
Custom and OEM designs available

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

OEM Services

Our technical team can advise on selecting the optimal heat lamp for your specific application or design custom lamps based on your technical requirements. We produce various sizes and types of heat lamps according to customer specifications, with sample production available for approved designs.

Product Coding Rule Table

Frequently Asked Questions

Q1. Can all the products be customized?

A: All infrared and ultraviolet products can be customized, including equipment and repair services with drawing processing.

Q2. What is the outer package of the product?

A: Lamp tubes (up to 20 pieces) are packaged in paper packs. For products exceeding 800mm in length or heavy equipment, we use wooden cases. Please contact customer service for specific packaging requirements.

Q3. What is the processing cycle?

A: Standard lamp tube production takes about 20 days, while equipment production requires longer lead times. Exact timelines will be confirmed by customer service.

Q4. What is the minimum order quantity?

A: Minimum order quantity for lamp tubes is 3-5 pieces. Equipment MOQ is 1 set. Please consult customer service for specific requirements.

If our standard parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings for your specific needs.
