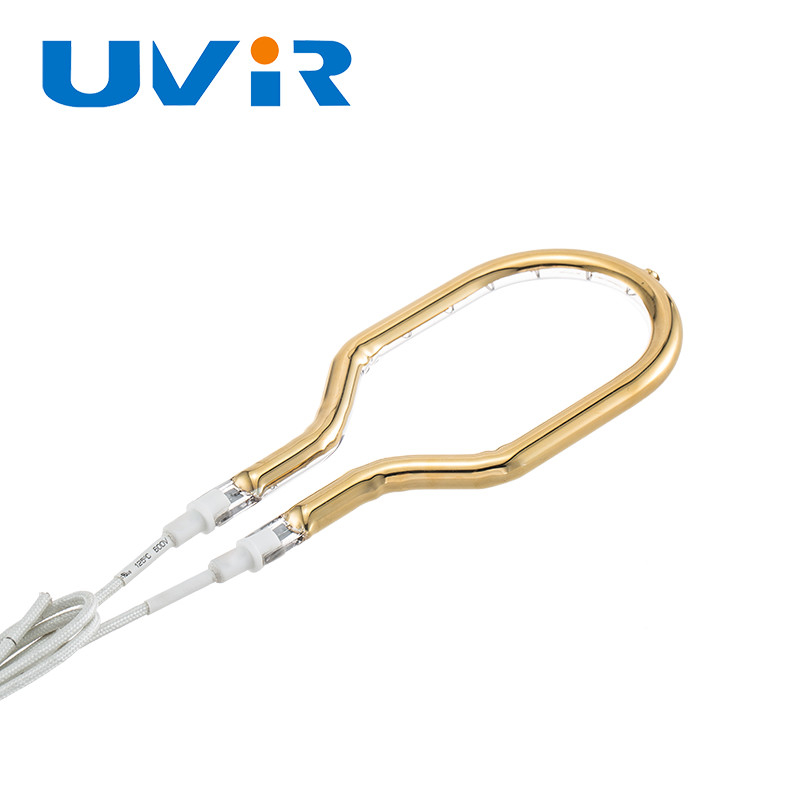

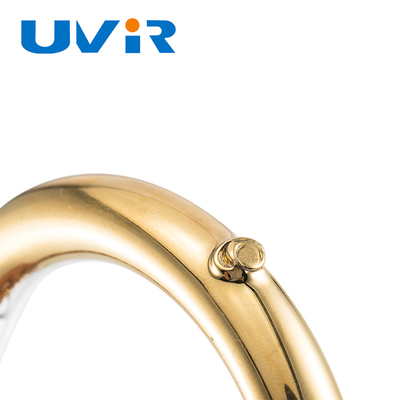

UVIR Gold Coated Ring Quartz Infrared Lamps 200-6000W

For applications requiring specialized infrared emitters, our custom-shaped IR elements provide optimal solutions. We've developed numerous special designs including omega-shaped, U-shaped, bent configurations, and complete IR systems.

• Filament: Tungsten/Quartz material
• Tube Color: Gold
• Pipe diameter: 8-14mm
• Voltage: 55-575V
• Power: 200-6000W
• IR Diameter: 39-606mm
• Type: RING tube
• Life Time: 5000 Hours

• Ring diameter from 39mm up to 600mm
• Voltage range from 24V to 575V
• Available in Short, Medium and Long-Wave IR designs
• Multiple tube color options
• Tube diameter selection based on heater diameter and voltage/wattage requirements
• Standard stock items available for immediate delivery
• Custom and OEM designs available

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings.

• Laminating paper, plastics, metal, textiles
• Coating paints and adhesives
• Stretching foil
• High temperature disinfection
• Food catering backing, heating and heat preservation
• Industrial production ovens
• Car painting
• Wood drying and preheating before painting
• Beauty apparatus and infrared physical therapy
• Shoe making machine drying
• PET preform heating for bottle stretch-blow molding
• PVC flooring heating prior to embossing
• Plastic ink curing
• Water-based reflective paint curing on aluminum light clusters
• Lacquer coating for metal pipeline tube preservation
• Powder coating gelling and curing on metal products

With our extensive product range and technical expertise, we can recommend the ideal heat lamp for your specific application. Our technical department can design custom lamps based on your exact specifications.

We manufacture various sizes and types of heat lamps according to customer requirements. Providing drawings is ideal for accurate sample production.
