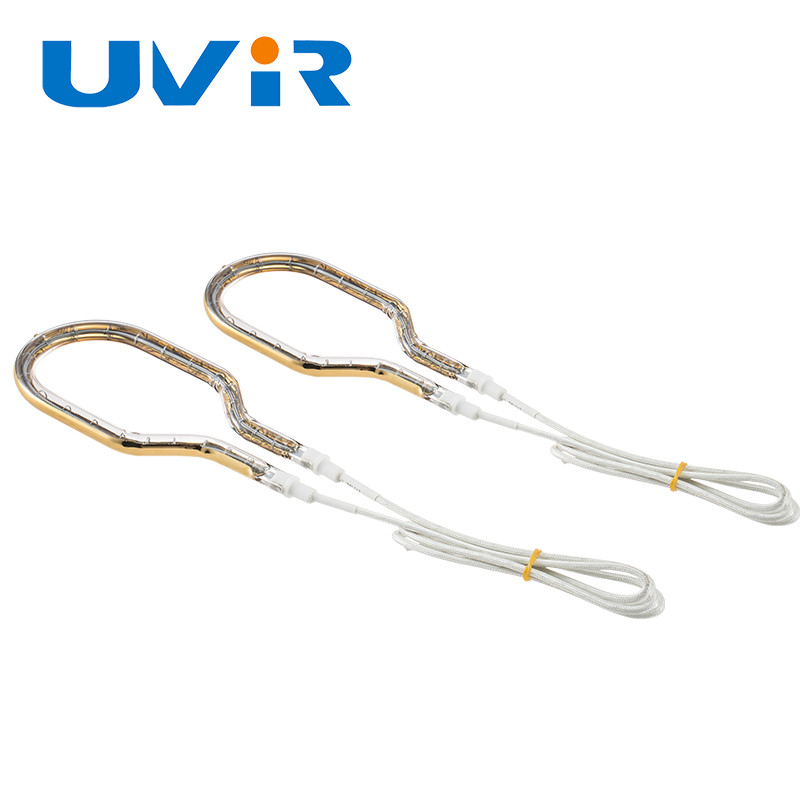

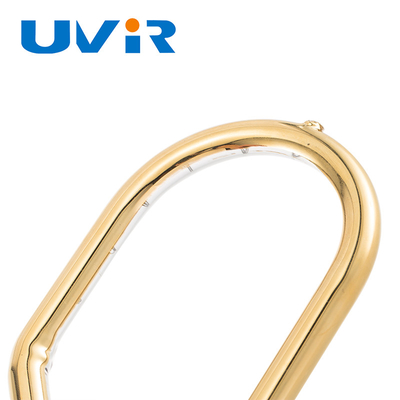

Gold Coated Short Wave Ring Infrared Lamp 39-606mm

Gold Coated Short Wave Ring Infrared Lamp 39-606mm

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color::

Clear, White, Ruby, Gold

Material::

Tungsten (filament)

Quartz Tube:

99.99% High Purity Quartz Glass

Power Source::

Electric

Voltage::

12V-480V

Tube Cross Section 1::

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Short Wave Ring Infrared Lamps

39-606mm Ring Infrared Lamps

Tungsten Quartz Glass Tube Infrared Lamps

Product Description

Short Wave Gold Coating 39-606mm Ring Infrared Lamps Tungsten Quartz Glass Tube

Product Specifications

Attribute	Value
Color	Clear, White, Ruby, Gold
Material	Tungsten (filament)
Quartz Tube	99.99% High Purity Quartz Glass
Power Source	Electric
Voltage	12V-480V
Tube Cross Section	8-14mm

Key Features

High-priced imported carbon fiber filament with smooth finish
Advanced carbon fiber weaving process for optimal surface quality
High quality high-temperature quartz glass completely transparent to IR radiation
Twin tube option available for increased heat output

Technical Specifications

Filament	Tungsten
Tube Color	Clear, White, Gold
Wavelength	1.3μm
Voltage	24-575V
Power	100-7600W
Color Temp	2450K
Common Diameter	8-14mm
Life Time	5000 Hours

Ring Tube IR Lamps Design Characteristics

Special designs for circular 2,3-D surfaces
Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Available in short, medium and long-wave IR designs
Multiple tube color options available
Tube diameter selection depends on heater's diameter and voltage/wattage relationship
Standard stock items for immediate delivery
Custom and OEM designs available

Stock and Standard Short-Wave Ring Lamps

115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093
230	1500	8	80	0	RHC800024	RHG800066	RHG800067	RHG800068
230	1850	8	102	90	RHC800025	RHG800025	RHG800025	RHG800025
230	2000	8	154	90	RHC800026	RHG800072	RHG800073	RHG800074
230	2200	8	180	90	RHC800027	RHG800075	RHG800076	RHG800077

Infrared Wavelength Segments

1.0 ~1.3 μm Short-wave infrared
1.6 ~ 1.8 μm Medium-short wave infrared
2.5 μm Medium-wave infrared

Reflector Heat Lamp Features

Special reflector coating transmits and focuses heat efficiently
Available in gold, white and ruby reflectors
Ruby and gold coatings reduce visible light while increasing heat
White reflector coating is stable and durable
Gold plating offers superior reflection efficiency

Frequently Asked Questions

Can you supply clamps for lamp installation?

Yes, we provide mounting clamps with purchased lamps at no additional cost.

How does your factory handle quality control?

We maintain strict quality control from material procurement to final packaging. Our products are certified with CE, ROHS, and ISO9001 standards.

What information should I provide when making an inquiry?

Please include lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length (standard is 300mm), coating preference, and quantity. Providing drawings or pictures is helpful.
