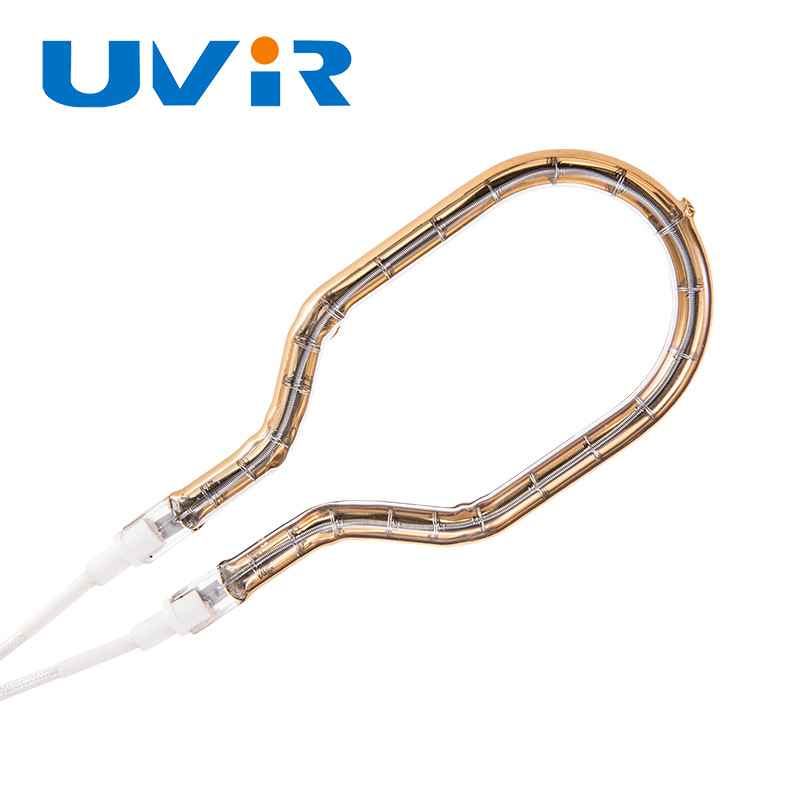

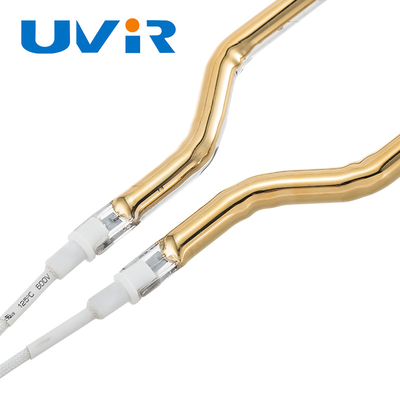

Gold Reflector Quartz Tube Infrared Heating Lamp 200-6000W

Gold Reflector Quartz Tube Infrared Heating Lamp 200-6000W

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Power:

200-6000W

Material:

Quartz Tube

Reflector:

Gold

Warranty(Year):

1-Year

Ring Diameter:

39-606mm

Voltage:

55-575V

Tube Diameter:

8-14mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Gold Reflector Ring Halogen Heating Lamp

Shortwave Infrared Ring Halogen Heating Lamp

200-6000W Infrared Ring Lamp

Product Description

Gold Reflector Quartz Tube Shortwave Infrared Ring Halogen Heating Lamp 200-6000W

Product Specifications

Attribute	Value
Power	200-6000W
Material	Quartz tube
Reflector	Gold
Warranty	1-Year
Ring Diameter	39-606mm
Voltage	55-575V
Tube Diameter	8-14mm

Product Advantages

Economy: Compact and lightweight design reduces production facility costs. Long lifespan minimizes maintenance expenses.
Heat Impact Resistance: Quartz glass envelope provides superior resistance to thermal shock compared to standard incandescent lamps.
High Efficiency: Quartz glass construction delivers high luminous output per watt. Halogen cycle minimizes tungsten filament evaporation.
Long Life: Halogen cycle technology extends service life to approximately twice that of standard incandescent lamps.
Stable Color Temperature: Halogen cycle prevents bulb blackening and maintains consistent light intensity and color temperature.
Rapid Warm Up/Cool Down: Achieves maximum radiation output in 40-50 seconds with equally fast cooling when switched off.

Technical Details

Filament	Tungsten & Glass
Tube Color	White
Wavelength	1.2μm
Voltage	55-575V
Power	200-6000W
Color Temp	2450K
Common Diameter	8-14mm
Life Time	5000 Hours

Our professional infrared technology delivers precise heating with optimal wavelength matching, achieving energy savings up to 50% compared to conventional heating methods.

Standard Configurations

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

115

250

RHC800023

RHG800063

RHG800064

RHG800065

Custom configurations available - contact us for specialized requirements. Our engineering team can provide professional guidance and custom drawings.

Industry Applications

Industry	Applications	Recommended Lamp Type
Plastics	Bottle blowing, Thermoforming, Welding, Serigraphy	Half white reflector infrared lamp
Paper	Drying, Printing processes	Clear short wave heat lamp

After Sales Service

Package tracking
Technical support
24-hour response time
Reorder discounts
Quality problem replacements
Strict customer confidentiality

Our Capabilities

Expert sales teams for accurate communication
Professional R&D teams for product innovation
Skilled production teams for quality manufacturing
Rigorous quality inspection processes
Experienced after-sales support

Frequently Asked Questions

Are you a factory or trading company?

We are a professional manufacturer of infrared heater lamps.

How do you ensure quality control?

Our professional technical team and experienced workers maintain strict quality control from material selection through production to final packaging.
