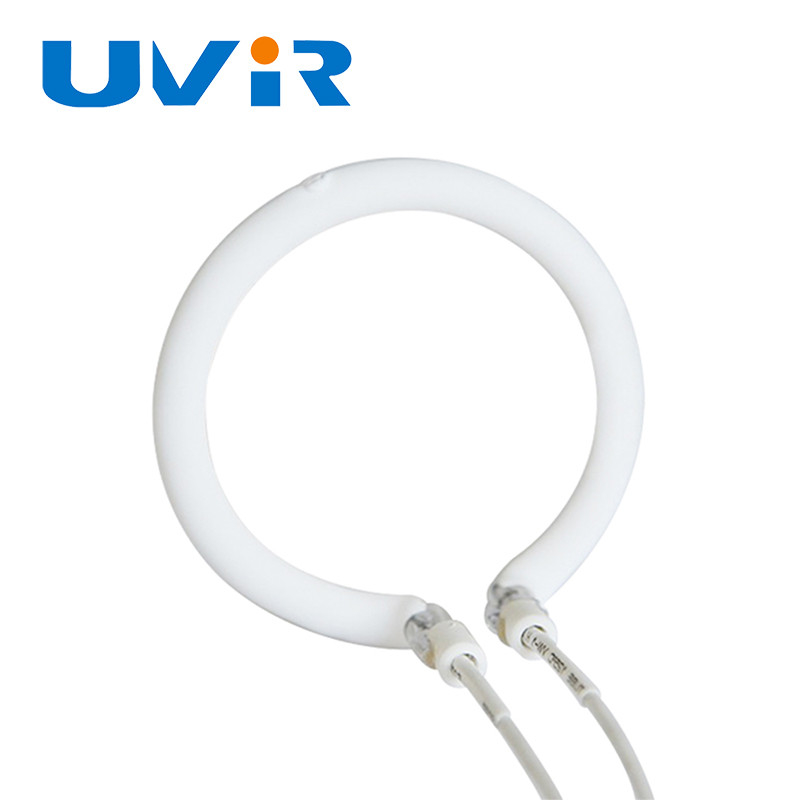

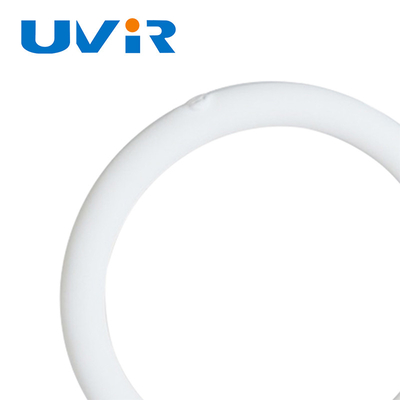

White Coating Ring Infrared Lamps 200-6000W for Plastic Welding

White Coating Ring Infrared Lamps 200-6000W for Plastic Welding

Brand Name:	UVIR
Model Number:	-
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Power:

200-6000W

Tube Diameter:

8-14mm

Type:

Quartz Pipe With White Coating

Application:

Heating

Shape:

Ring Or Round

Customized:

Yes

Head Base:

Ceramic

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

200-6000W Ring Infrared Lamps

White coating Ring Infrared Lamps

Plastic Welding Ring Infrared Lamps

Product Description

White Coating Single Tube 200-6000W Ring Infrared Lamps For Plastic Welding

Power	200-6000W
Tube diameter	8-14mm
Type	Quartz Pipe With White Coating
Application	Heating
Shape	Ring or Round
Customized	Yes
Head Base	Ceramic
Place of Origin	Guangdong, China

The Advantages Of UVIR Heat Lamp

Carbon fiber heat lamp
- High-priced imported carbon fiber filament
- Finished filament is smooth and does not fluff
- Optimum power and maximum longevity
Quartz glass tube
- High quality high-temperature quartz glass
- Long serving life: over 5000 hours
- Nontoxic with no peculiar smell, no risk of contamination

Main Design Characteristics

Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Available in various tube colors
Tube diameter from 8-14 mm (selected based on heater's diameter and voltage/wattage relationship)
Standard stock items for immediate delivery
Custom and OEM designs available

Product Details

Product name	Ring tube infrared lamp
Tube diameter	8-14mm
Voltage	55-575V
Wattage	200-6000W
Coating	White

QUICK CONNECT RING 39 mm

Stock and Standard (Non-Stock) Ring Short-Wave Ø39 mm Quick Connect Lamps

1	115	200	8	RHC800300	RHG800300	RHG800306	RHG800312
2	115	200	10	RHC800301	RHG800301	RHG800307	RHG800313
3	115	450	8	RHC800302	RHG800302	RHG800308	RHG800314
4	220	200	8	RHC800303	RHG800303	RHG800309	RHG800315
5	220	300	8	RHC800304	RHG800304	RHG800310	RHG800316
6	220	450	8	RHC800305	RHG800305	RHG800311	RHG800317

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design lamps based on customer's technical specifications.

We produce many sizes and types of heat lamps according to customer requirements. If drawings are provided, we can create samples for you.

Applications

Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
Plastics: Welding, Forming, Softening, Curing, Drying
Printing: Ink drying, Silk Screening, Bindings, Glue drying
Food: Baking, Browning, Dehydrating, Pasteurizing
Textiles: Web Drying, Finishing, Pre-shrinking
Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit

FAQ

1. How does your factory do regarding quality control?

"Quality is priority." UVIR always emphasizes quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

2. About customized service?

We provide customized heat solutions and OEM services, including printing your logo on products as required.

3. About after-sale service?

Any confirmed quality issues will be compensated.

4. Shipping

Parcels typically ship within 3 days. We only ship to confirmed order addresses (must match shipping address). Transit time is provided by carrier and excludes weekends/holidays.

5. Can I have samples? Is it free?

Yes, we offer samples for checking and testing. Depending on quantity and product model, we'll confirm if samples are free.
